APPARATUS AND METHOD FOR MATERIAL DECOMPOSITION OF SPECTRALLY RESOLVED PROJECTION DATA USING SINGLES COUNTS
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Aug 10, 2017
app pub date -
Feb 5, 2016
filing date -
Feb 5, 2016
priority date (Note) -
Published
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

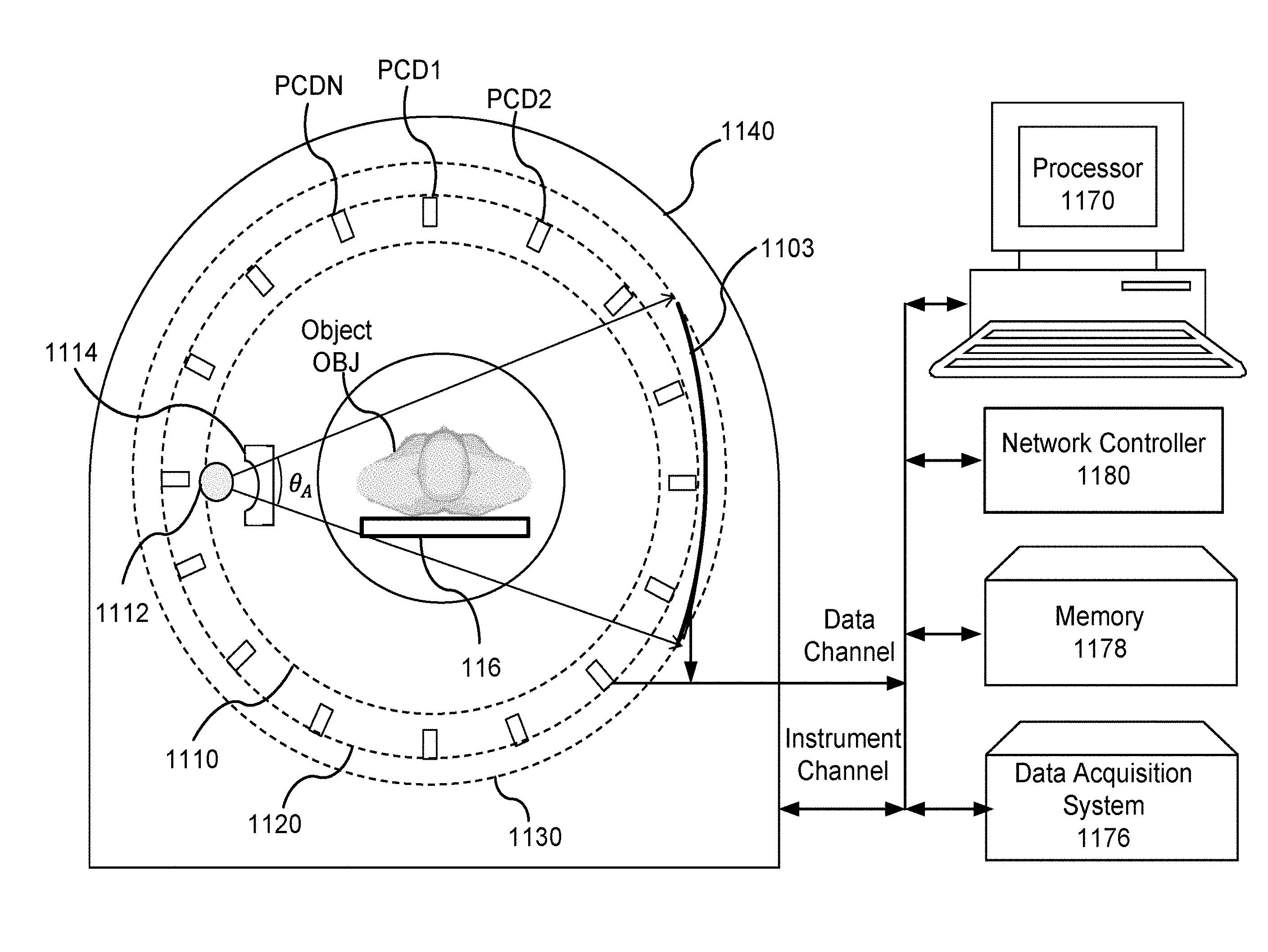

A method and apparatus is provided to decompose spectral computed tomography (CT) projection data into material components using singles-counts and total-counts projection data. The singles-counts projection data more accurately solves the material decomposition problem, but can produce multiple results only one of which is correct. The total-counts projection data generates a unique result, but is less precise. The total-counts projection data is used to disambiguate the multiple results of the singles-counts projection data providing a unique results that is also precise. The unique and precise material decomposition can be achieved by limiting a search region for the singles-counts result to a neighborhood surrounding the total-counts result, choosing a singles-counts result that is closest to the total-counts result, choosing a singles-counts result that minimizes a total-counts cost function, or using a combined cost function that includes a singles-counts projection data and energy-integrated projection data.
First Claim
Other Claims data not available
