Method for automatic start up of a communication terminal configured for voice communication on a communication terminal configured for text communication
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Apr 7, 2020
Grant Date -
Aug 3, 2017
app pub date -
Apr 14, 2017
filing date -
Dec 23, 2010
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

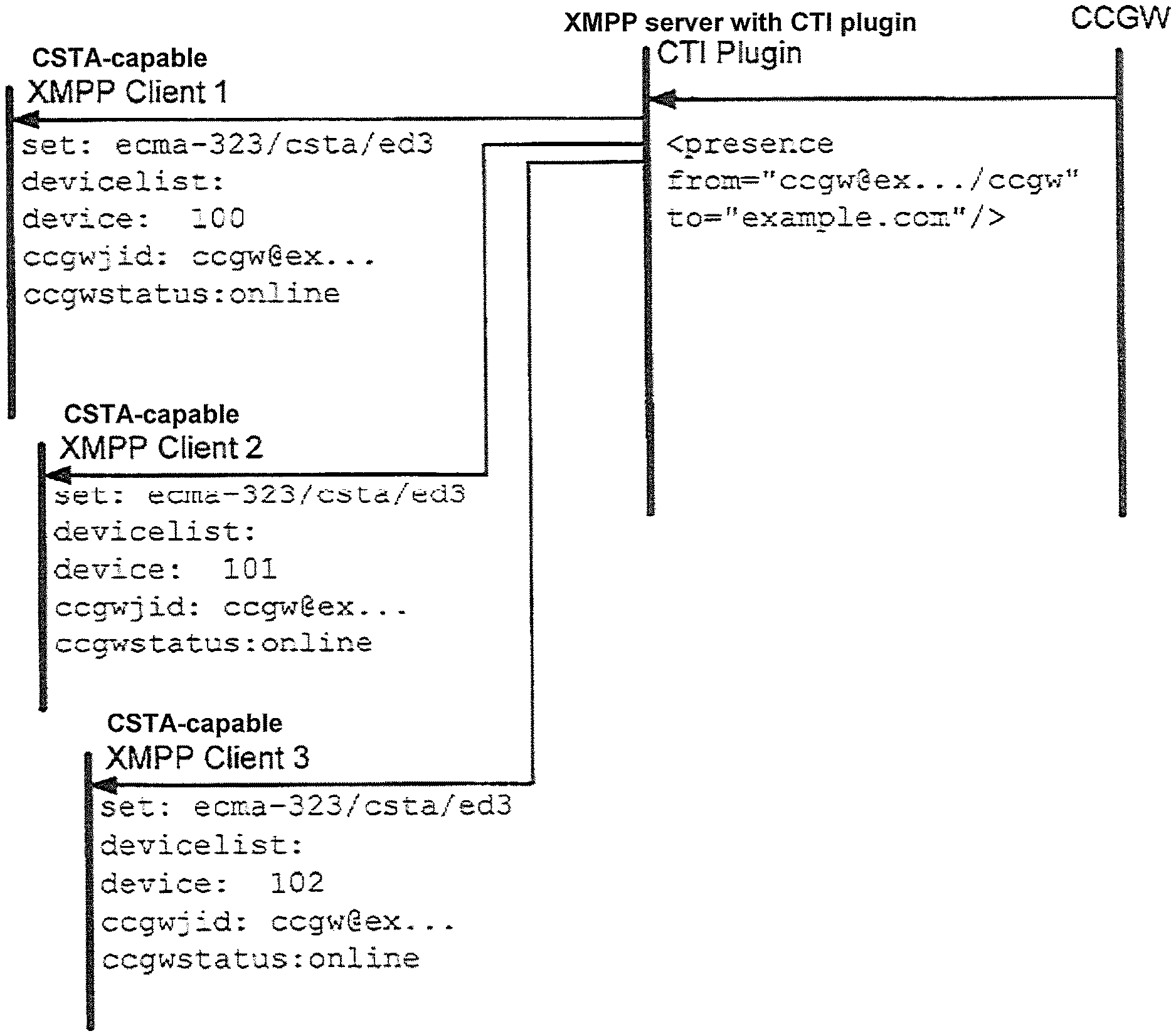

In the case of a method or an arrangement for the automatic start up of a first communication terminal (EG A, EG B) configured for voice communication on at least one second communication terminal (CL A, CL B) configured for text communication, the voice communication between communication terminals is conveyed via at least one voice communication server (SCS) and the text communication between communication terminals is conveyed via at least one text communication server (TCS). The at least one voice communication server (SCS) and the at least one text communication server (TCS) exchange information via at least one conversion device (GW). The start up of at least one first communication terminal (CL A, CL B) is effected via the at least one text communication server (TCS), the at least one conversion device (GW) and the at least one voice communication server (SCS) to at least one second voice communication terminal (EG A, EG B).
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- H04M Class
- 0 % this patent is cited more than
- 5 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Oct 7, 2027 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Oct 7, 2031 |
