SEMICONDUCTOR DEVICE AND MANUFACTURING METHOD THEREFOR
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Sep 2, 2015
filing date -
Sep 2, 2014
priority date (Note) -
Published
status (Latency Note)
![]() |
A preliminary load of PAIR data current through [] has been loaded. Any more recent PAIR data will be loaded within twenty-four hours. |
PAIR data current through []
A preliminary load of cached data will be loaded soon.
Any more recent PAIR data will be loaded within twenty-four hours.
![]() |
Next PAIR Update Scheduled on [ ] |

Importance

US Family Size
|
Non-US Coverage
|
Abstract

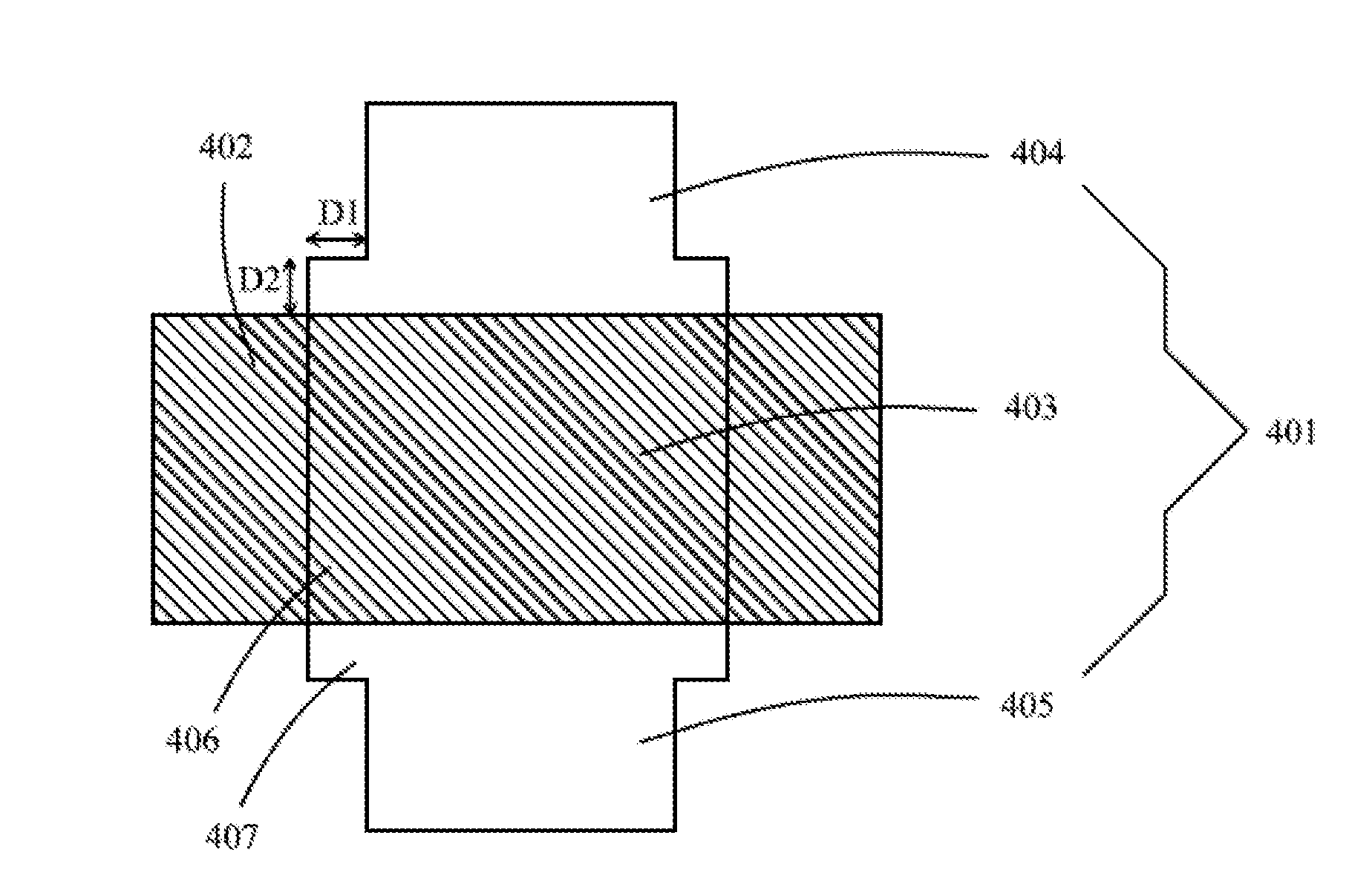

A manufacturing method for a semiconductor device is provided. The method comprises: providing a semiconductor substrate (200); sequentially forming an oxide layer (201) and a silicon nitride layer (202) on the semiconductor substrate (200); annealing the silicon nitride layer (202), and then etching an active region (401) by using the silicon nitride layer (202) as a mask, so as to form in the semiconductor substrate (200) a trench (203) for filling an isolation material, wherein the active region (401) comprises a gate region (403) and a source region (404) and a drain region (405) that are respectively located on two sides of the gate region (403), and the gate region (403) comprises a body part connected to the source region (404) and the drain region (405) and a protruding part (406) that protrudes and extends from the body part to the trench; etching-back the silicon nitride layer (202) and forming a lining oxide layer (201) on the sidewall and the bottom of the trench; depositing an isolation material layer (205) to fill the trench; grinding the isolation material layer (205) until the top of the silicon nitride layer (202) is exposed; and etching to remove the silicon nitride layer (202).
