TIME DOMAIN REFLECTOMETRY WAVEGUIDE
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Aug 3, 2017
app pub date -
Feb 3, 2016
filing date -
Feb 3, 2016
priority date (Note) -
Published
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

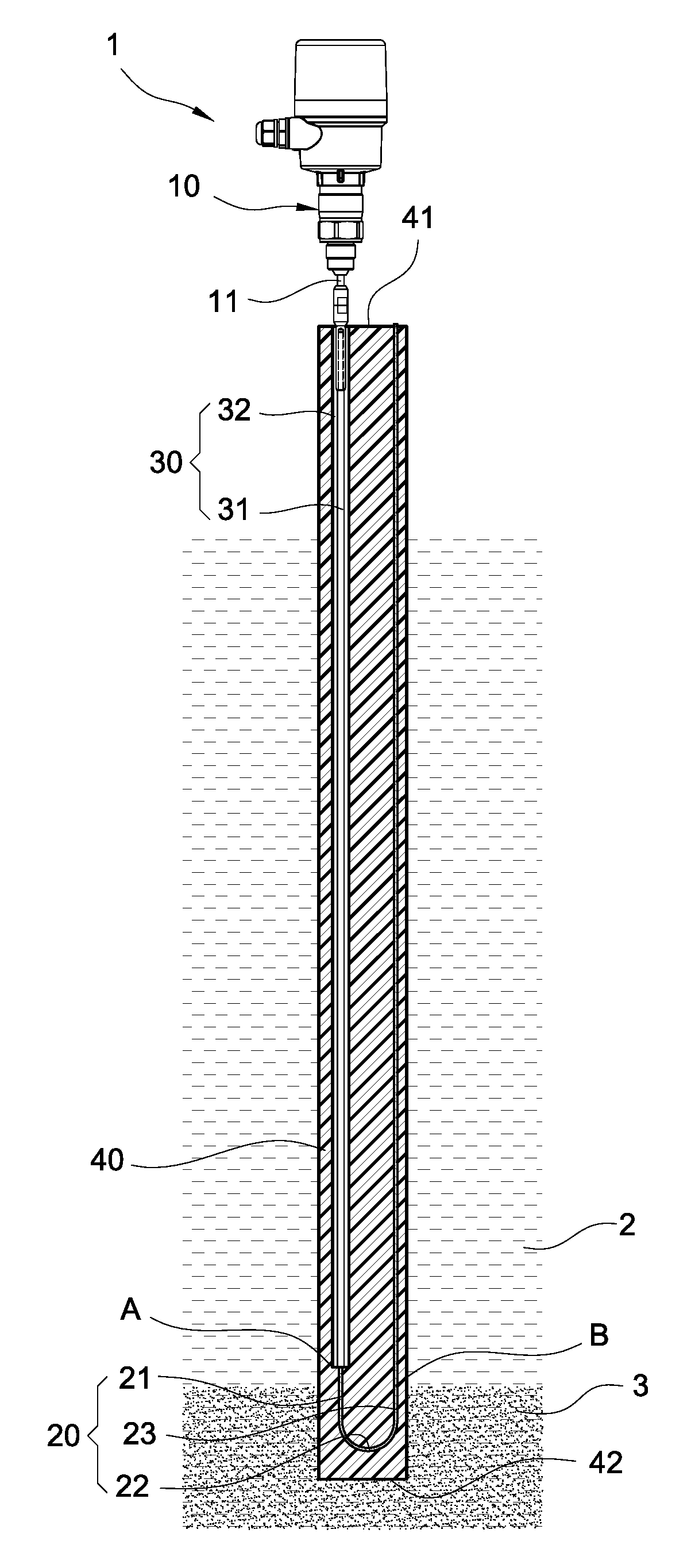

A time domain reflectometry waveguide structure (1) includes: a control module (10) for transmitting a sensing signal and receiving a reflection signal fed back from the sensing signal; a waveguide sensor (20) connected to the control module (10) and including a first probe (21) connected to the control module (10), a curved probe (22) connected to the first probe (21) and a second probe (23) extended from the curved probe (22); a protective cover (30) coaxially sheathed on the first probe (21) and exposing the curved probe (22), and a sensing signal passing through the protective cover (30) and the first probe (21) without interference and transmitted to the curved probe (22) and the second probe (23) to obtain the reflection signal; and an insulator (40) covered onto the waveguide sensor (20) and the protective cover (30) to prevent interference, facilitate measurements, and measure environmental parameters of different media.
