Device for fixing a blank to a modular support system
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 2, 2021
Grant Date -
Aug 3, 2017
app pub date -
Jul 29, 2015
filing date -
Aug 1, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

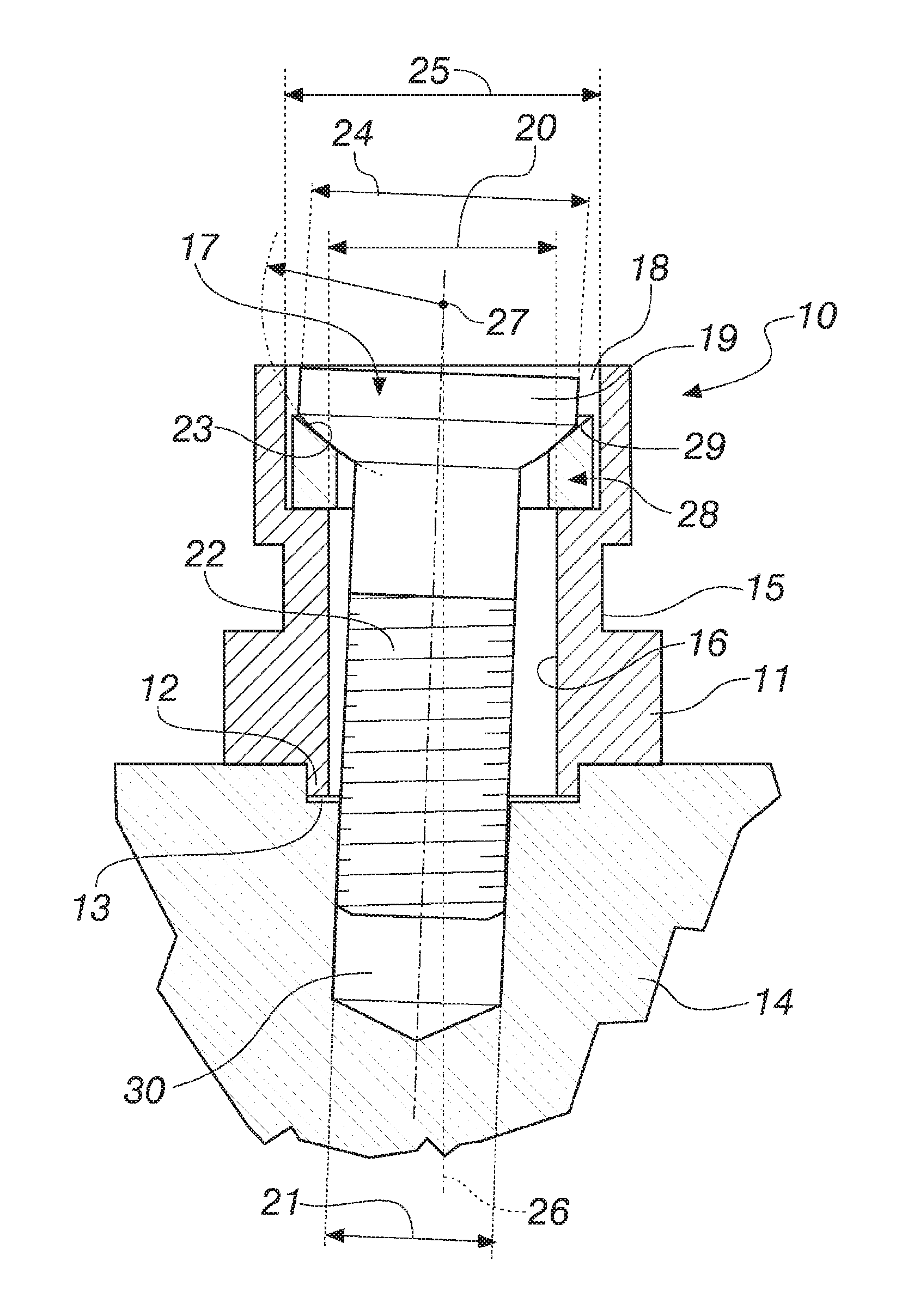

A device for fixing a blank to a modular support system includes a body having cylindrical symmetry which is provided at one end with a centering collar and, in a central region, with a perimetric recess that defines an engagement undercut for a corresponding locking component of a modular support system. The body has an axial through hole for a threaded fixing element. The axial through hole is open onto a coaxial seat for resting the head of the threaded fixing element, and it has a larger diameter than the outside diameter of the stem of the threaded fixing element. The head of the threaded fixing element has a resting surface, a substantially spherical geometry, and a smaller outside diameter than the corresponding internal dimension of the resting seat in which the threaded fixing element is accommodated.
