Rotor bow comprising a tubular guide element, particularly for a machine for processing elongate strand material
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 25, 2019
Grant Date -
Aug 3, 2017
app pub date -
Aug 5, 2015
filing date -
Aug 8, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

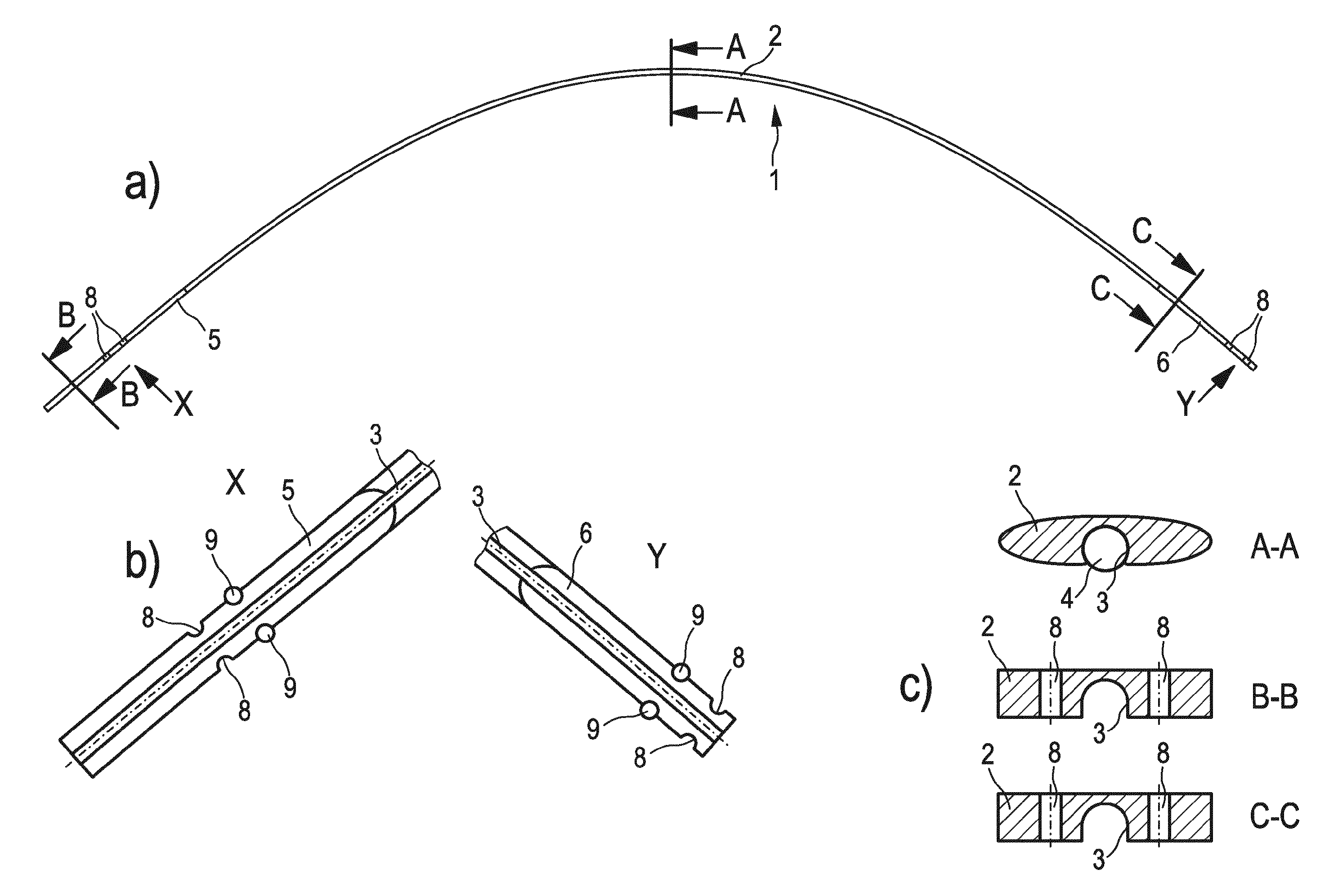

Flyer bow for a wire-braiding or cable-twisting machine, comprising a bow member that has a groove extending essentially along the entire longitudinal extension of the flyer bow in the longitudinal direction of the flyer bow. The flyer bow comprises a tubular guiding element, especially a coil spring, for guiding the elongate strand-type material that is placed in the groove without interruption, essentially along the entire longitudinal extension of the groove. The inner dimensions of the groove at any point along the longitudinal extension of the guiding element are greater than or equal to the outer dimensions of the guiding element at the same point. This makes it easy to remove and introduce, preferably pull out and insert, the guiding element from and into the groove.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- D07B Class
- 82 Applications Filed
- 57 Patents Issued To-Date
- 69.52 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- D07B Class
- 0 % this patent is cited more than
- 6 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Dec 25, 2026 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Dec 25, 2030 |
