Slide rail assembly and guiding mechanism thereof
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Aug 29, 2016
filing date -
Dec 21, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

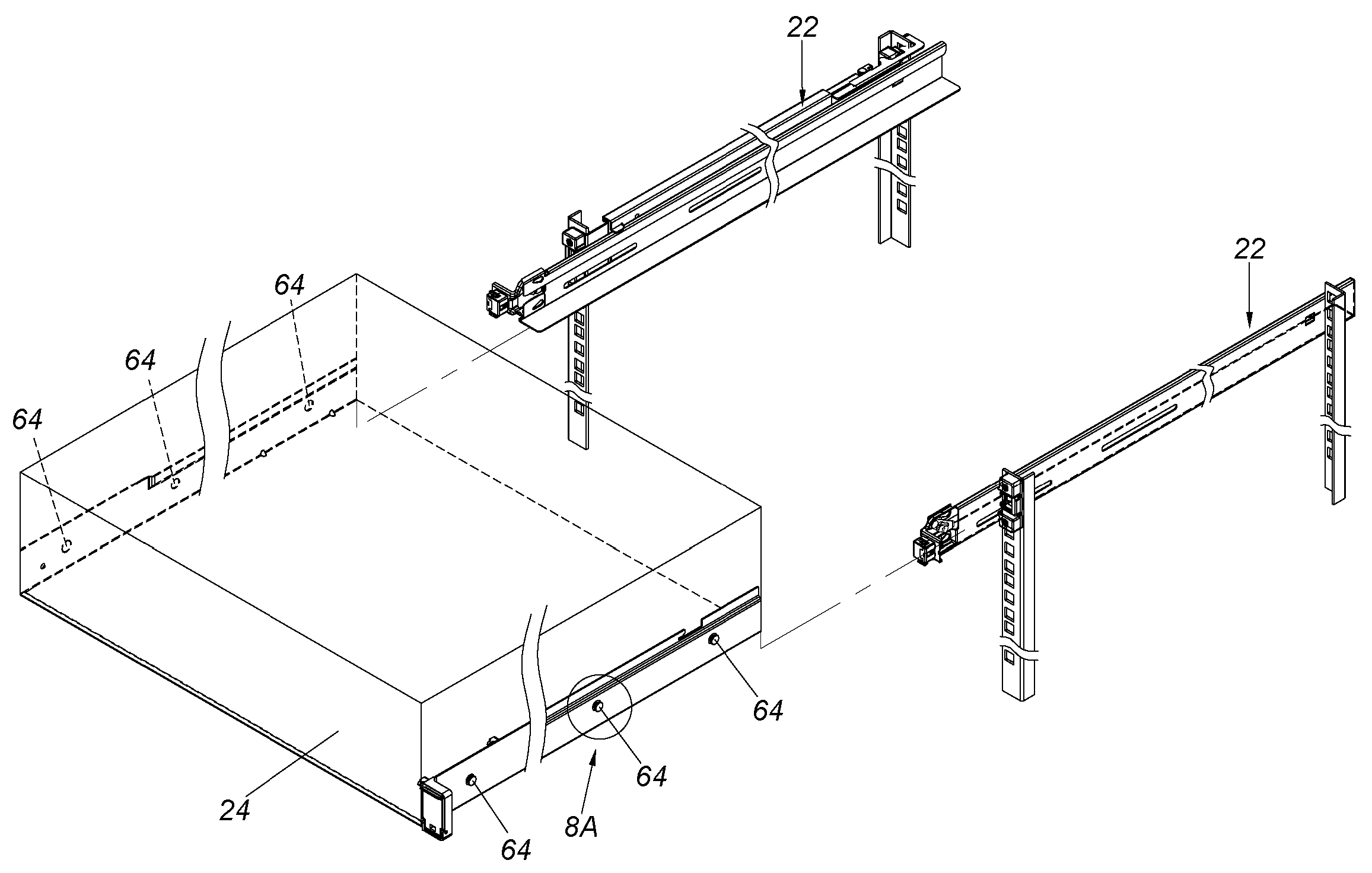

A slide rail assembly is configured to mount a chassis to a rack. A plurality of mounting members are arranged at one side of the chassis. The slide rail assembly includes a first rail, a second rail and a guiding base. The second rail includes a side wall and a bottom wall. The guiding base is disposed at a front end of the second rail. The guiding base defines an entry, an exit and a passage located between the entry and the exit. The second rail is moved out of the rack relative to the first rail. The bottom wall of the second rail abuts against a bottom part of the chassis for pushing the chassis into the rack. The chassis is mounted to the second rail through guiding the plurality of mounting members by the entry to pass through the passage and the exit.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2016 Application Filing Year
- A47B Class
- 1233 Applications Filed
- 953 Patents Issued To-Date
- 77.30 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 5 Citation Count
- A47B Class
- 33.73 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jan 17, 2026 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jan 17, 2030 |
