Point Cloud Compression using Prediction and Shape-Adaptive Transforms
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Jan 22, 2016
filing date -
Jan 22, 2016
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

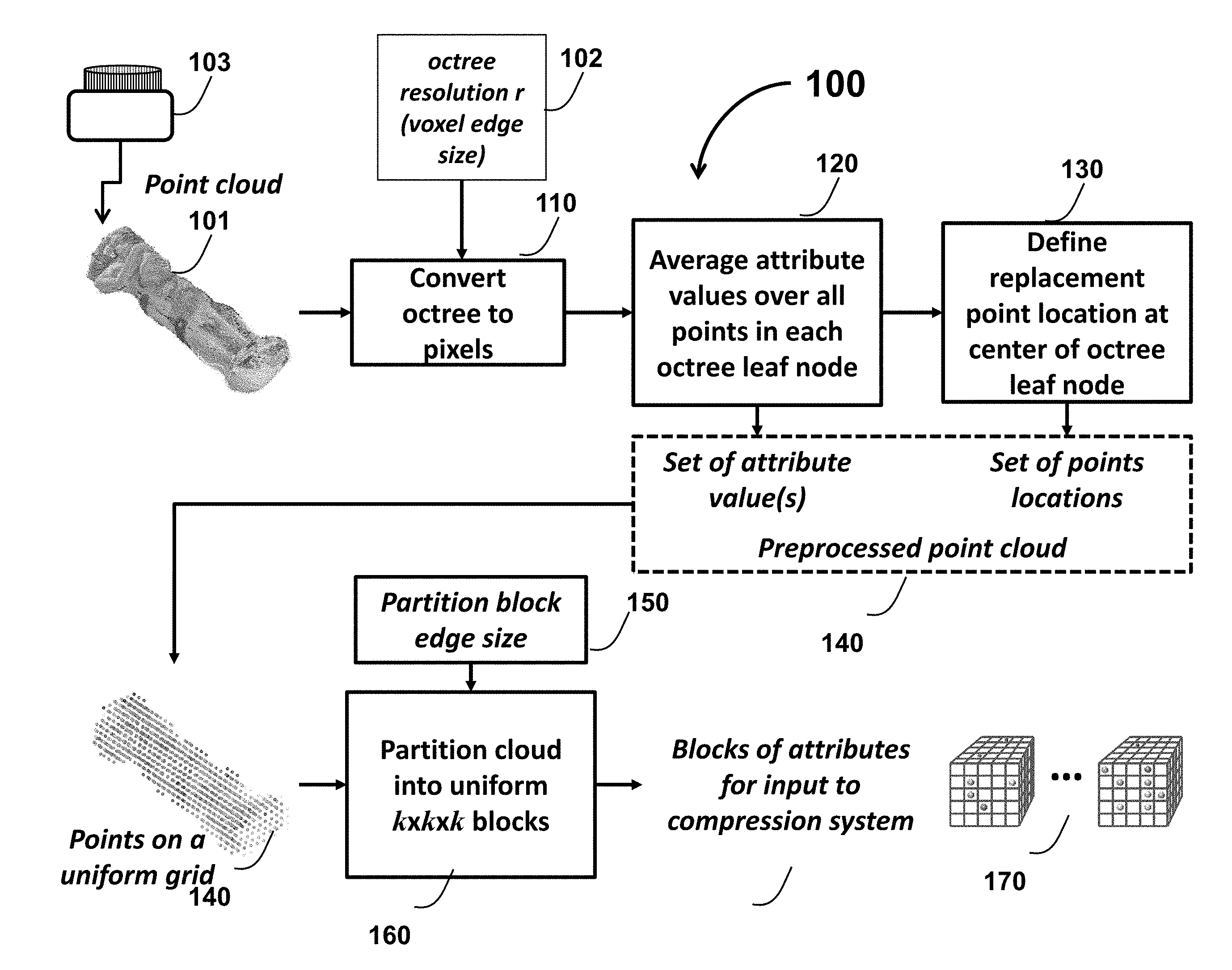

A method compresses a point cloud composed of a plurality of points in a three-dimensional (3D) space by first acquiring the point cloud with a sensor, wherein each point is associated with a 3D coordinate and at least one attribute. The point cloud is partitioned into an array of 3D blocks of elements, wherein some of the elements in the 3D blocks have missing points. For each 3D block, attribute values for the 3D block are predicted based on the attribute values of neighboring 3D blocks, resulting in a 3D residual block. A 3D transform is applied to each 3D residual block using locations of occupied elements to produce transform coefficients, wherein the transform coefficients have a magnitude and sign. The transform coefficients are entropy encoded according the magnitudes and sign bits to produce a bitstream.
First Claim
Other Claims data not available
