Methods and systems for LIDAR optics alignment
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 6, 2018
Issued Date -
N/A
app pub date -
Apr 8, 2017
filing date -
Mar 27, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

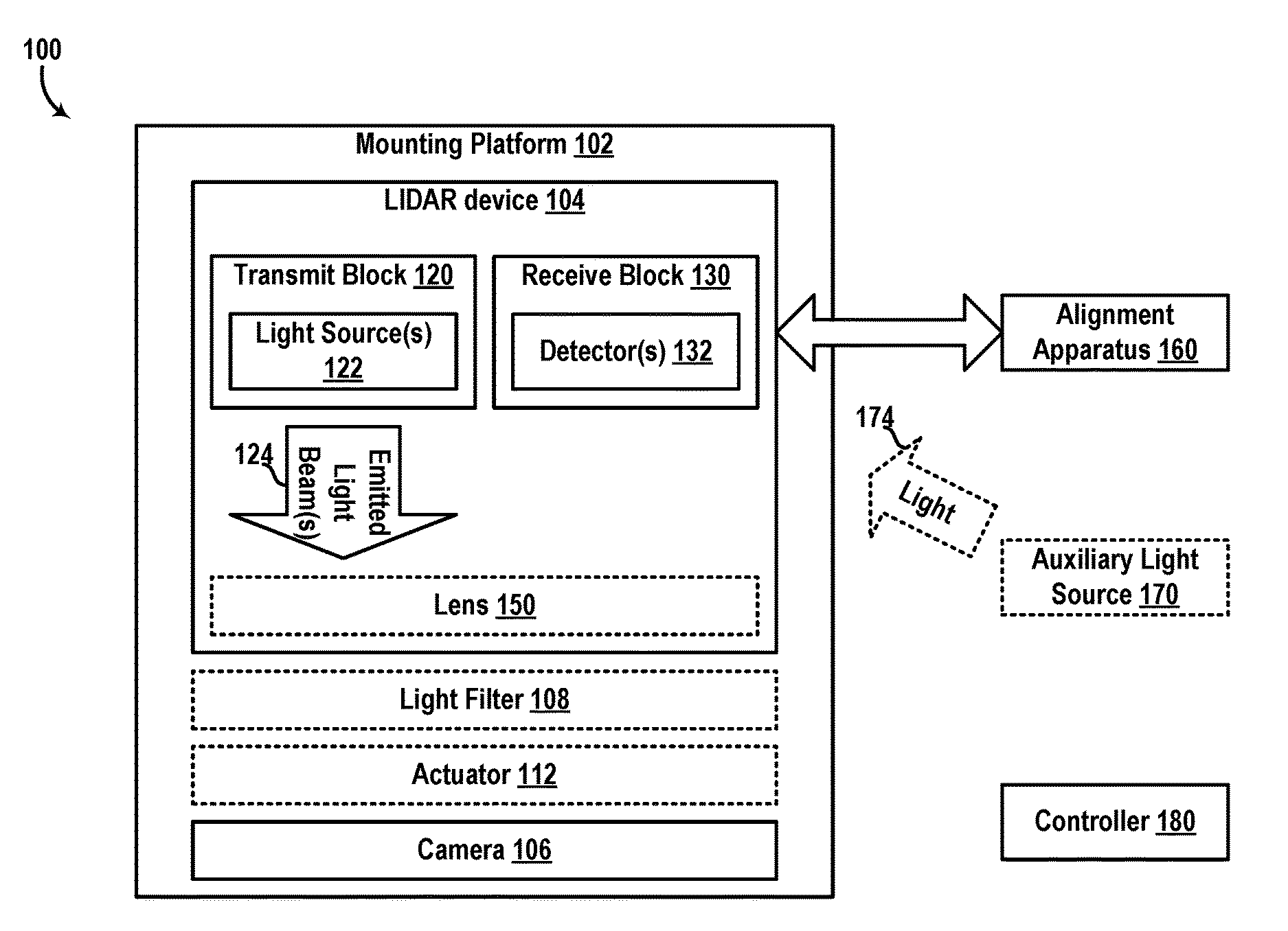

A method is provided that involves mounting a transmit block and a receive block in a LIDAR device to provide a relative position between the transmit block and the receive block. The method also involves locating a camera at a given position at which the camera can image light beams emitted by the transmit block and can image the receive block. The method also involves obtaining, using the camera, a first image indicative of light source positions of one or more light sources in the transmit block and a second image indicative of detector positions of one or more detectors in the receive block. The method also involves determining at least one offset based on the first image and the second image. The method also involves adjusting the relative position between the transmit block and the receive block based at least in part on the at least one offset.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2017 Application Filing Year
- G02B Class
- 11360 Applications Filed
- 8685 Patents Issued To-Date
- 76.46 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 9 Citation Count
- G02B Class
- 28.28 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Sep 6, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Sep 6, 2029 |
