Heating furnace using self-calibration mode
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 15, 2020
Grant Date -
Jul 27, 2017
app pub date -
Jan 26, 2016
filing date -
Jan 26, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

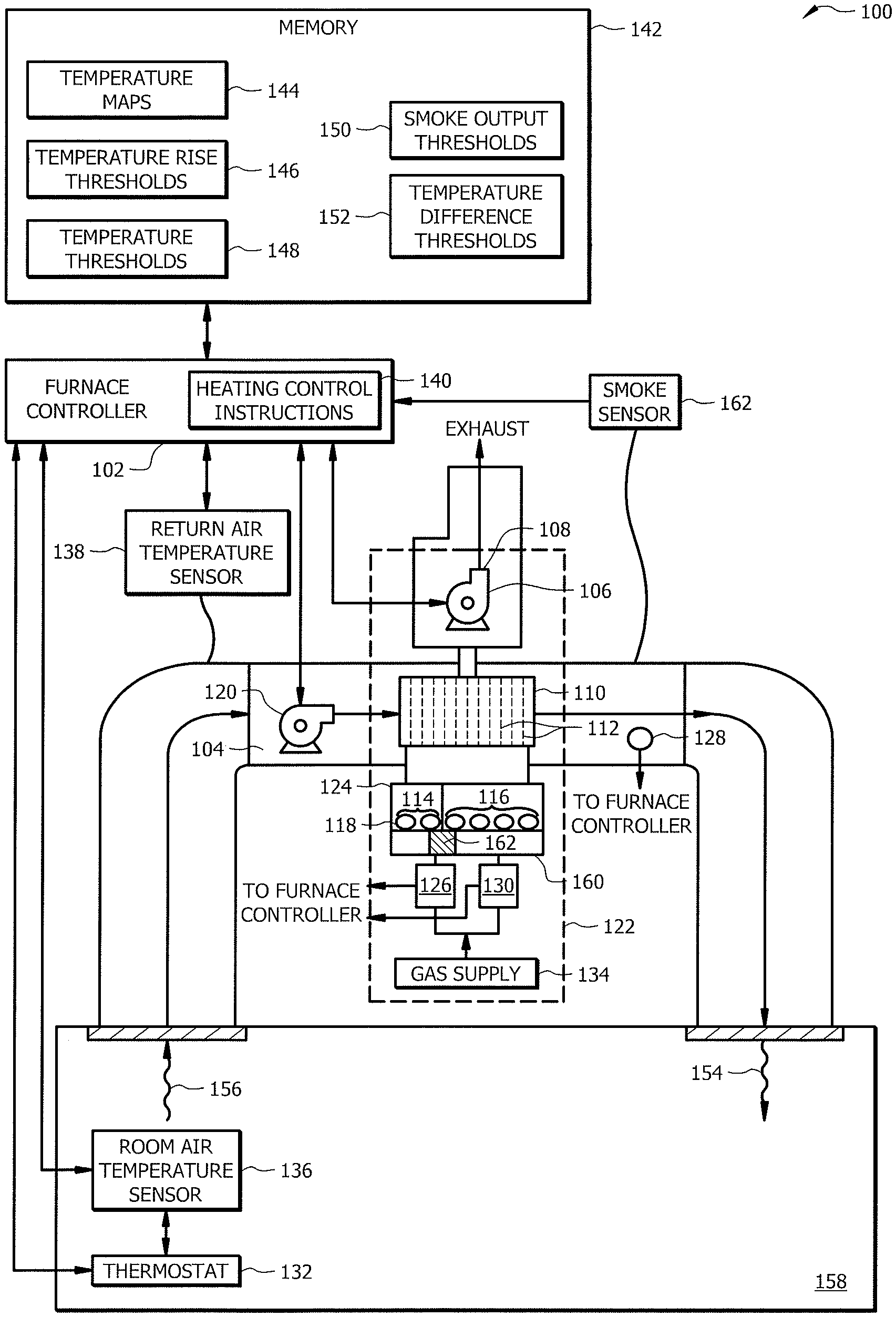

A heating control method includes determining a first speed for an air circulation fan that corresponds with a temperature set point using a temperature map that maps temperatures to speeds of the air circulation fan and operating the air circulation fan at the first speed and a heating unit in a first configuration with at least one active burner from a plurality of burners where less than all of the burners are active when the heating unit is in the first configuration. The method further includes measuring a first temperature while operating the air circulation fan at the first speed, determining a temperature difference between the first temperature and the temperature set point, comparing the temperature difference to a temperature difference threshold, and updating the temperature map to map the first speed to the first temperature when the temperature difference is greater than the temperature difference threshold.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2016 Application Filing Year
- F24D Class
- 237 Applications Filed
- 177 Patents Issued To-Date
- 74.69 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- F24D Class
- 55 % this patent is cited more than
- 5 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Mar 15, 2028 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Mar 15, 2032 |
