Multi-functional fuel nozzle with an atomizer array
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 1, 2018
Issued Date -
N/A
app pub date -
Aug 14, 2014
filing date -
Aug 14, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

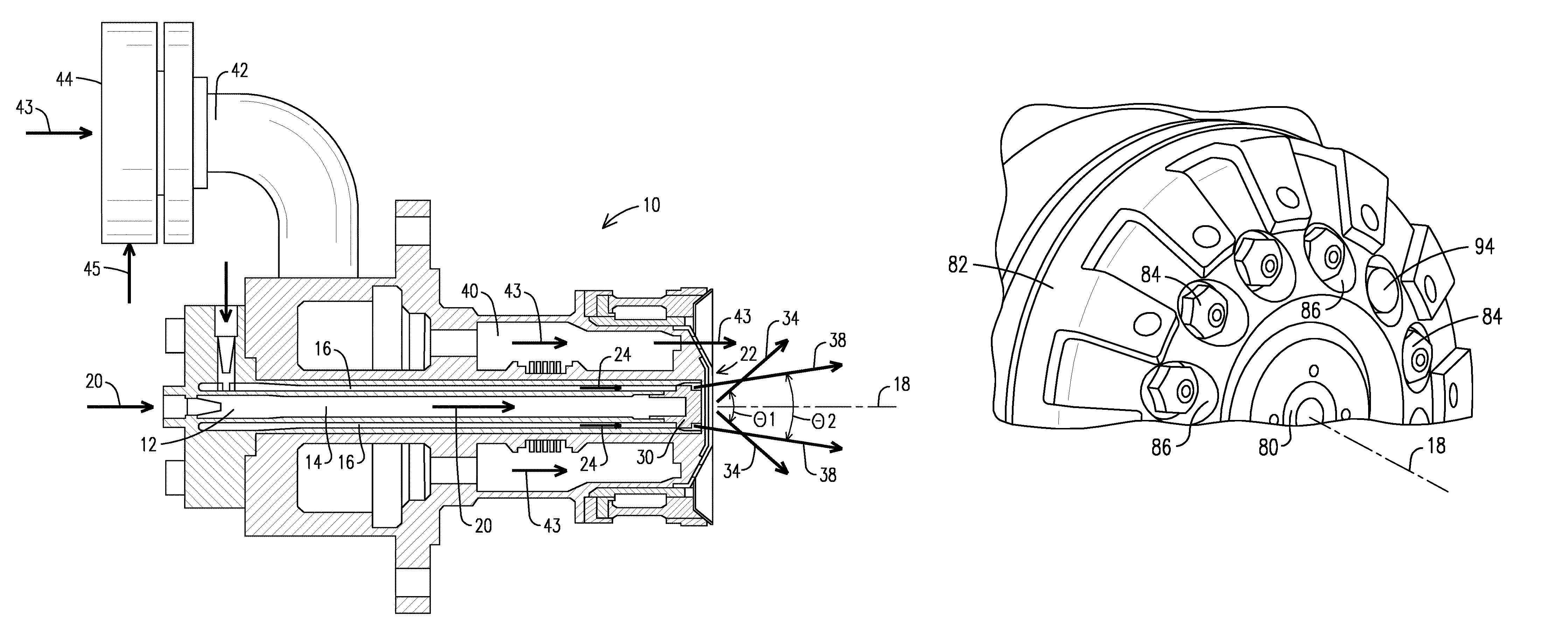

A nozzle cap (82) is disposed at a downstream end of the nozzle. The nozzle cap includes a bore arranged to accommodate a downstream portion of a fluid-injecting lance that extends along a longitudinal axis (18) of the nozzle. The downstream portion of the fluid-injecting lance includes a centrally-located atomizer (80) to form a first atomized ejection cone. An array of atomizers (84) is disposed in the nozzle cap. The array of atomizers is circumferentially disposed about the longitudinal axis of the lance. The array of atomizers may be positioned radially outwardly relative to the centrally-located atomizer to form an array of respective second atomized ejection cones.
