Process of cultivating microalgae and a joint method of same with a denitration process
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 6, 2022
Grant Date -
Jul 27, 2017
app pub date -
Mar 17, 2015
filing date -
Jul 23, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

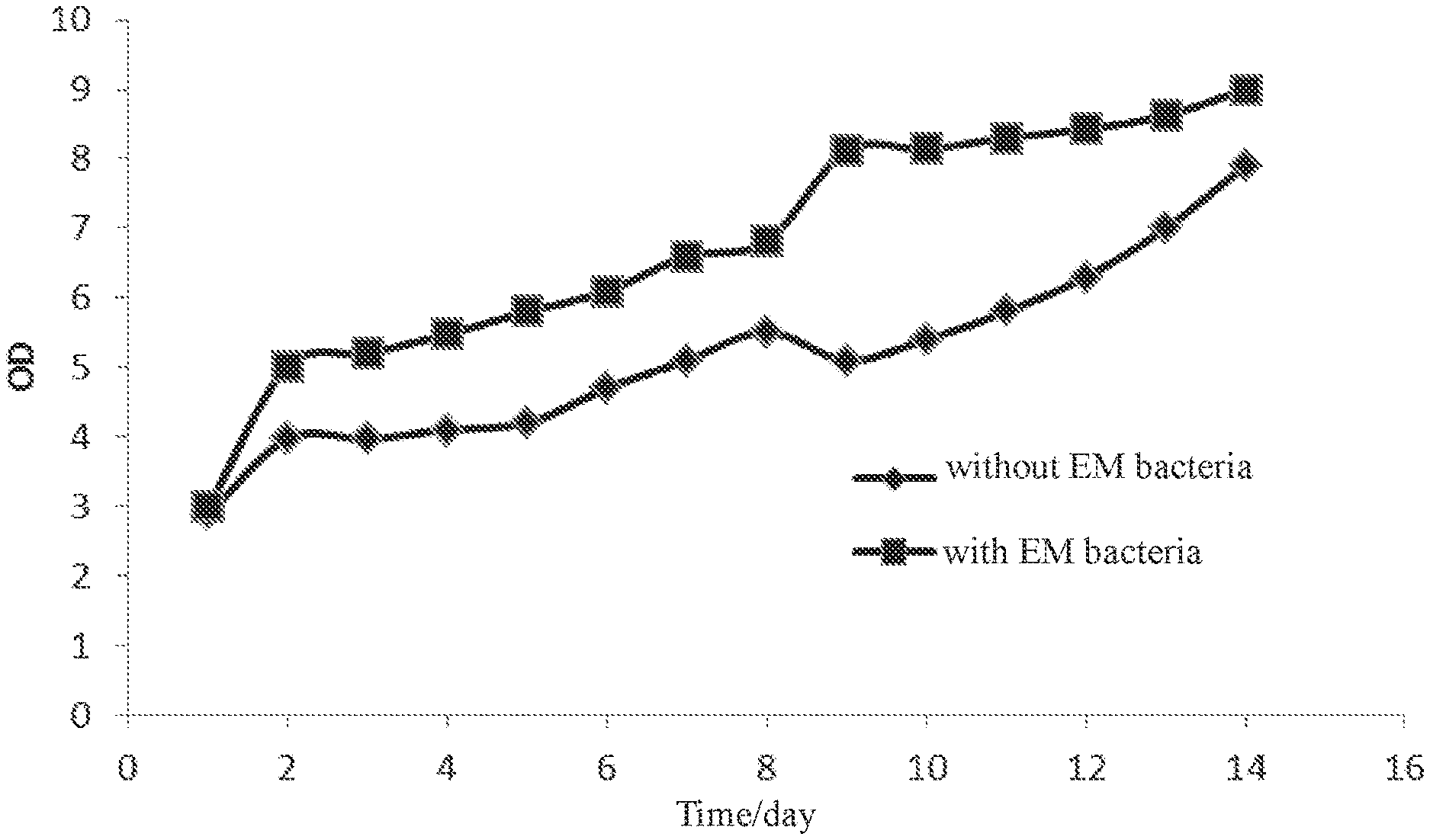

The present invention provides a process of cultivating microalgae and a joint method of same jointed with denitration. During the microalgae cultivation, EM bacteria is added into the microalgae suspension. In the nutrient stream for cultivating microalgae, at least one of the nitrogen source, phosphorus source and carbon source is provided in the form of a nutrient salt. During the cultivation, the pH of the microalgae suspension is adjusted with nitric acid and/or nitrous acid. The joint method includes (1) a step of cultivating microalgae; (2) a separation step of separating a microalgae suspension obtained from step (1) into a wet microalgae (microalgae biomass) and a residual cultivation solution; and (3) a NOx absorbing/immobilizing step of denitrating an industrial waste gas with the residual cultivation solution obtained from step (2). The nutrient stream absorbed with NOx obtained from step (3) is used to provide nitrogen source to the microalgae cultivation of step (1).
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- C12R Class
- 164 Applications Filed
- 100 Patents Issued To-Date
- 60.98 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- C12R Class
- 0 % this patent is cited more than
- 3 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | Mar 6, 2026 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Mar 6, 2030 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Mar 6, 2034 |
