Lathe Chuck for Aluminum Alloy Hubs
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Jul 27, 2017
app pub date -
Jan 23, 2017
filing date -
Jan 21, 2016
priority date (Note) -
Published
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

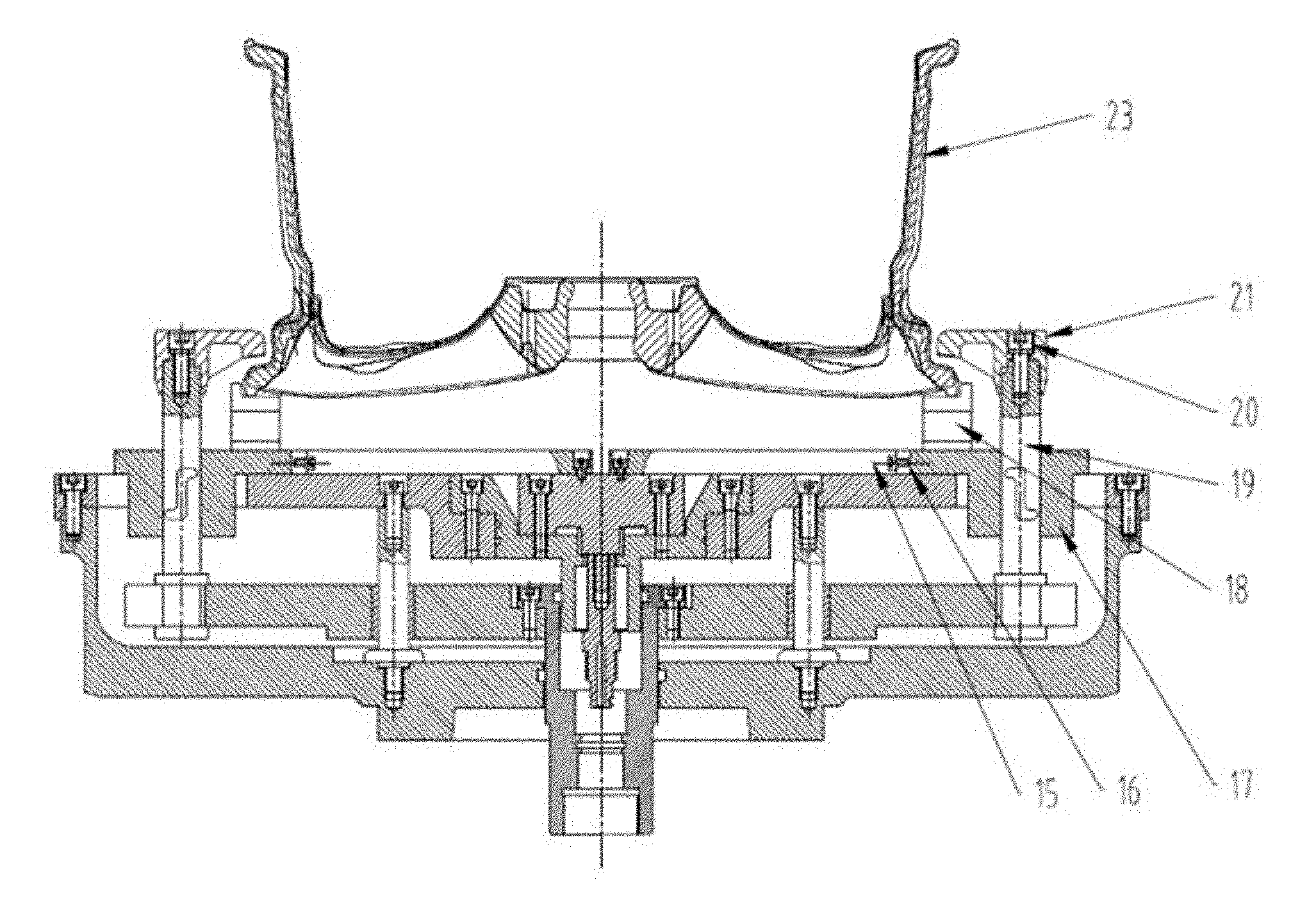

A lathe chuck for aluminum alloy hubs, including a base plate, a base, a slide plate, positioning posts, etc. The base plate is connected together with the base by screws, forming a body of the lathe chuck for hubs; a tapered mounting hole is provided under the base plate so as to fit with a machine tool; the upper and lower ends of the positioning posts are mounted on the base plate and the base by screws respectively, which can increase mounting strength of the base plate and the base; the slide plate is in sliding fit with the positioning posts by copper sleeves, and may slide upwards and downwards along the positioning posts; the large pull rod is fixed on the slide plate by screws and may drive the slide plate to move upwards and downwards.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date |
|---|---|---|---|
| CN | A | CN105522425 | Jan 21, 2016 |
International Classification(s)
- 2017 Application Filing Year
- B23B Class
- 646 Applications Filed
- 508 Patents Issued To-Date
- 78.64 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- B23B Class
- 22.16 % this patent is cited more than
- 8 Age
