INTEGRATED CIRCUITS WITH HIGH VOLTAGE AND HIGH DENSITY CAPACITORS AND METHODS OF PRODUCING THE SAME
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Jan 14, 2016
filing date -
Jan 14, 2016
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

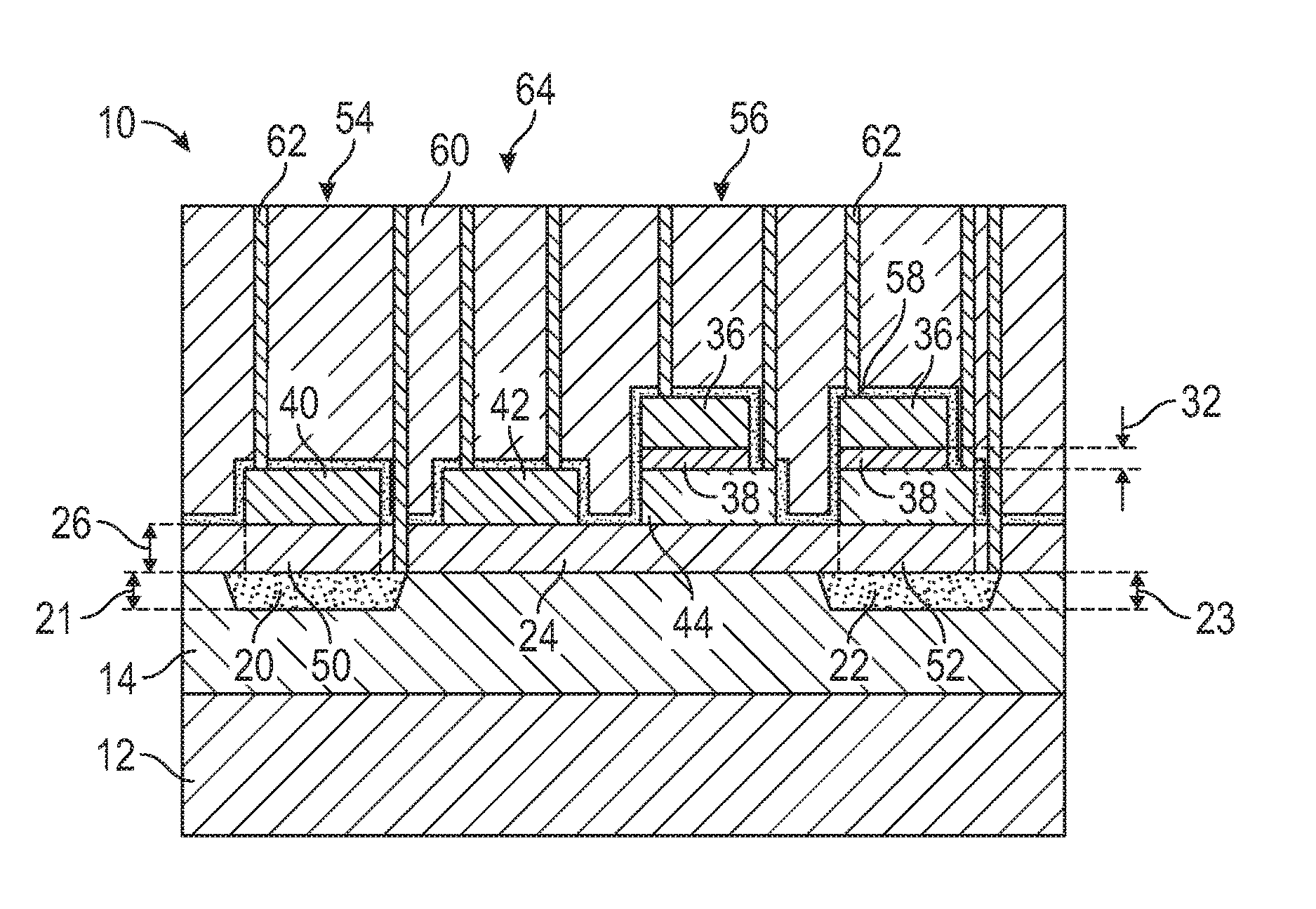

Integrated circuits and methods of producing the same are provided. In an exemplary embodiment, an integrated circuit includes a high voltage capacitor having a first high voltage plate, a second high voltage plate directly overlying the first high voltage plate, and a high voltage dielectric film between the first and second high voltage plates. The integrated circuit also includes a high density capacitor with a first high density plate that is about co-planar with the second high voltage plate, a second high density plate directly overlying the first high density plate, and a thin high density dielectric film positioned between the first and second high density plates.
First Claim
Other Claims data not available
