Instrument string cleaner
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 23, 2020
Grant Date -
Jul 20, 2017
app pub date -
Jan 18, 2017
filing date -
Jan 18, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

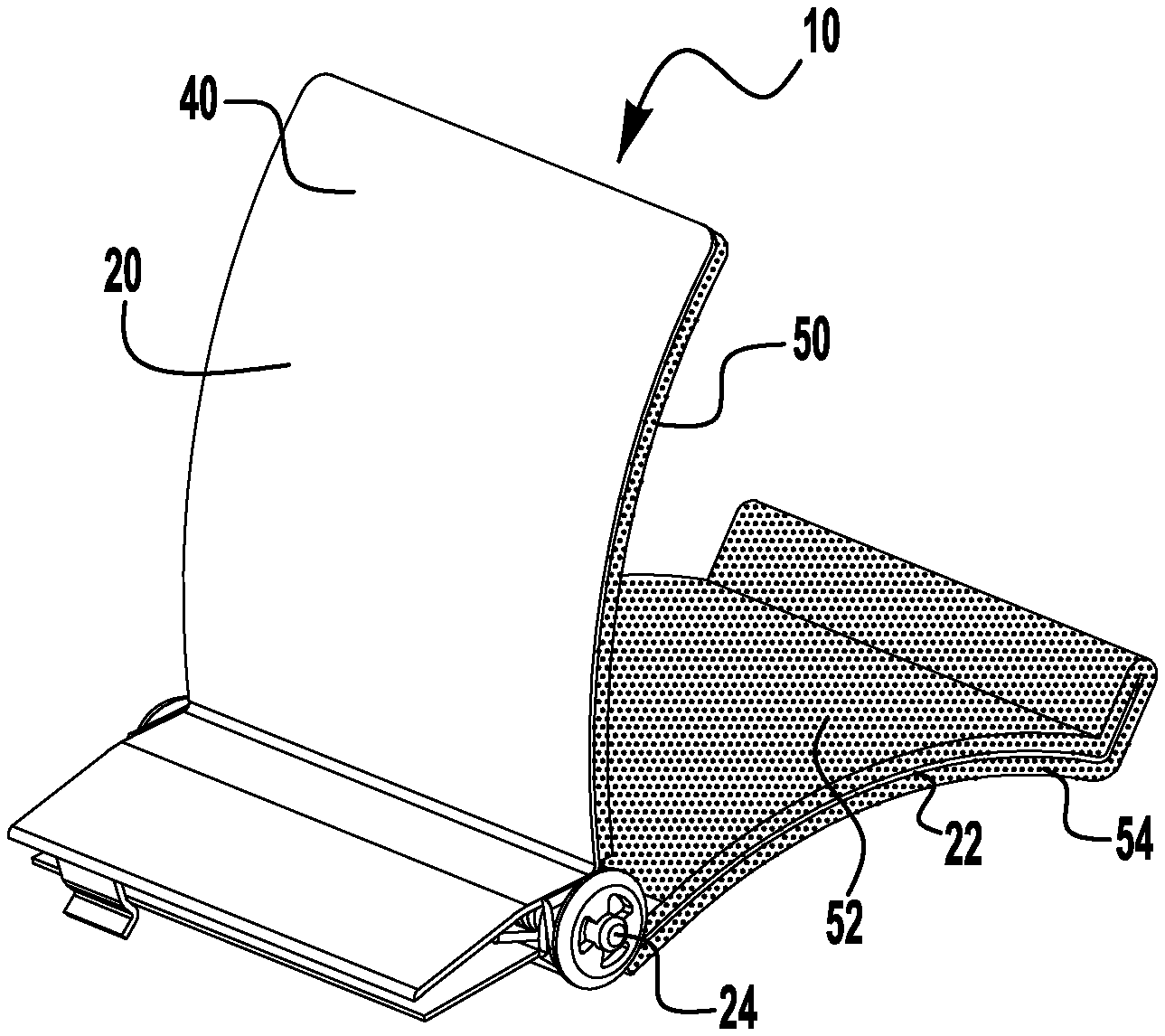

An instrument string cleaner adapted for cleaning the strings of a stringed instrument. The string cleaner includes a clamping mechanism that is adapted to securely connect with and hold onto the strings of a stringed instrument. The clamping mechanism includes a top arched plate and a bottom arched plate held together with a pin that extends the width of the top and bottom plates. A coil spring has the pin extending there through. The string cleaner is normally biased to a closed position by the coil spring where the top and bottom arched plates are pressed against each other. The string cleaner has an open position where the top and bottom arched plates are spaced from each other. A first cleaning pad attached to the top arched plate, and second cleaning pad is attached to the bottom arched plate.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2017 Application Filing Year
- B08B Class
- 1362 Applications Filed
- 875 Patents Issued To-Date
- 64.25 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B08B Class
- 0 % this patent is cited more than
- 5 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Dec 23, 2027 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Dec 23, 2031 |
