MEMS PEIZOELECTRIC ACCELEROMETER WITH BUILT-IN SELF TEST
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Jan 19, 2016
filing date -
Jan 19, 2016
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

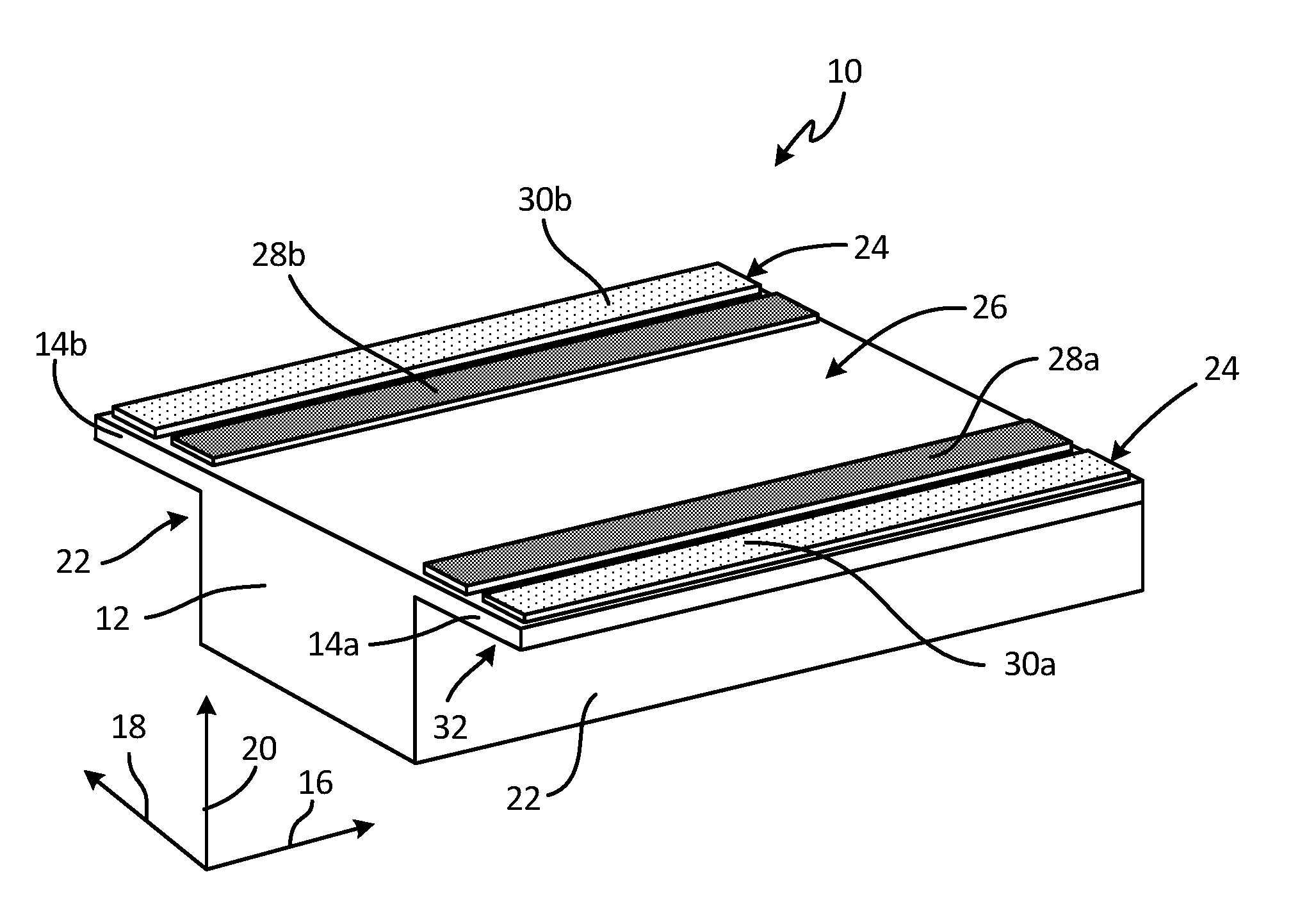

Apparatus and associated methods relate to an accelerometer having first and second piezoelectric transducers that are electrically isolated but mechanically coupled one to another via a coupling member. The first piezoelectric transducer is configured to induce a mechanical deformation of the coupling member in response to an electrical excitation signal received by the first piezoelectric transducer. The second piezoelectric transducer is configured to generate an electrical response signal in response to mechanical deformation of the coupling member. The accelerometer has a self-test module configured to generate the electrical excitation signal and to receive the electrical response signal. The self-test module is further configured to generate a sensor test result based upon a comparison between the received electrical response signal and a reference signal. The self-test module may advantageously detect changes in an excitation/response relation due to time and/or environmental conditions, for example.
First Claim
Other Claims data not available
