Jumper Tube Connector/Connection Apparatus and Method
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Apr 4, 2017
filing date -
Jun 3, 2015
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

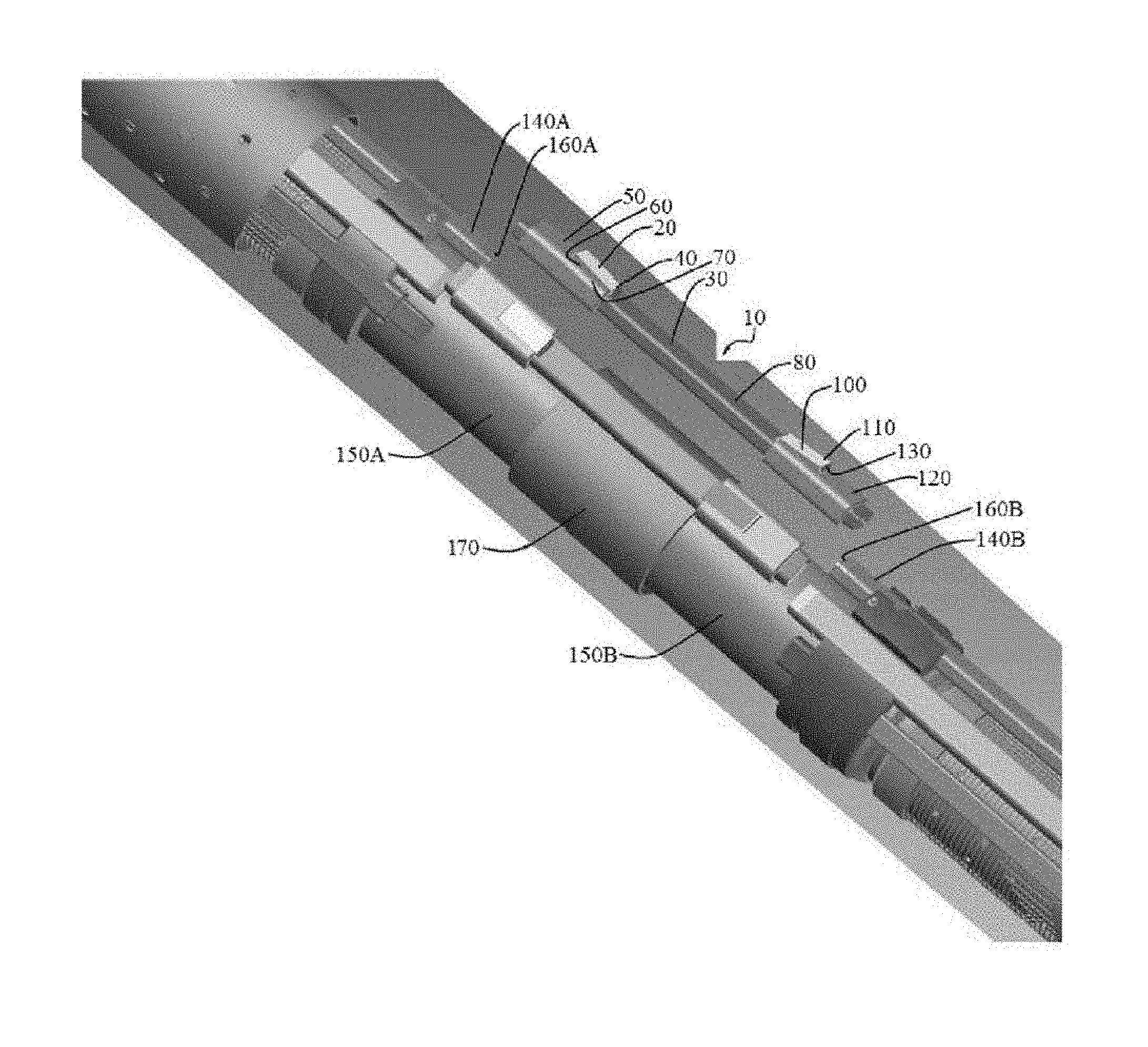

Embodiments of a jumper tube connection assembly generally include a retention clip having beveled and locking surfaces, a retention clip frame, and a biasing means, wherein the clip is restrained partially within the frame and is pivotable in response to a jumper connector contacting the beveled surface during shunt tube engagement therewith, and wherein the biasing means positions the locking surface to prevent jumper connector reverse movement. Other embodiments generally include a retention clip having a locking component, a retention clip support, and a biasing means, wherein the clip is restrained partially within the support and is pivotable in response to force biasing the locking component away from a shunt tube during jumper connector engagement therewith, wherein upon force cessation the biasing means positions the locking component in engagement with a jumper connector orifice, thereby preventing disengagement thereof from the shunt tube. Methods of utilizing the embodiments are also provided.
First Claim
Other Claims data not available
