Twin Screw Rotary Head Extruder, Method of Extrusion and Random Extruded Products
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Mar 31, 2017
filing date -
Nov 11, 2014
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

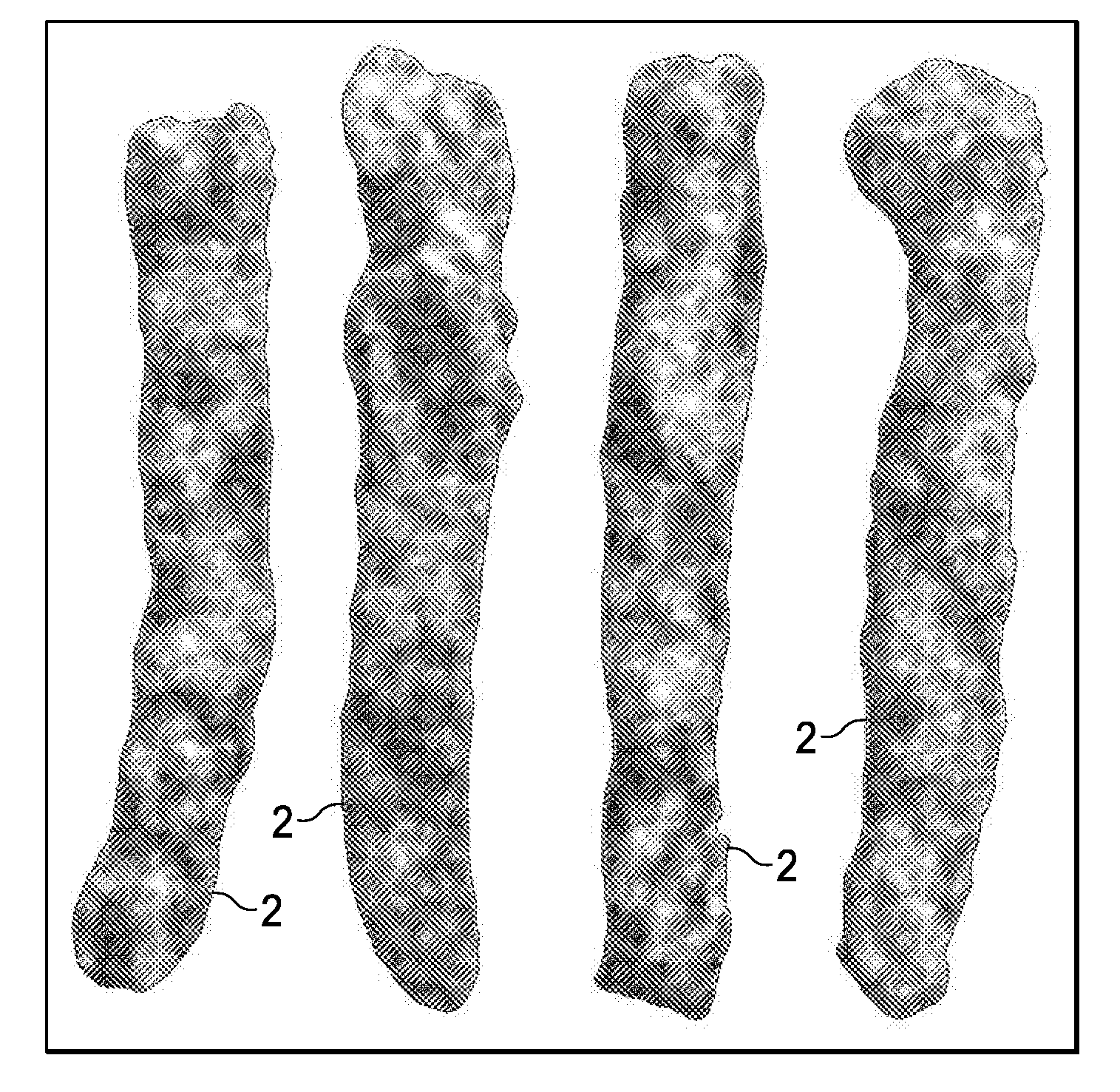

An improved rotary head extruder incorporates a twin auger system, in lieu of the typically used single auger, to create random extruded products having a density within the range of about 3.0 to about 6.0 lbs/cu ft. Extrusion using the rotary die system of a rotary head extruder together with the twin auger system allows for a wide variety of fine materials to be successfully introduced into and conveyed within a rotary head extruder to the die assembly, where the materials are cooked to form random extruded products. A transition piece at the downstream end of the augers allows for continuous, uniform flow to the die assembly, where cooking takes place. The extruded products incorporate formulations with various ingredients aside from the typically used corn meal formulations, having different tastes and nutritional benefits while maintaining the desired bulk density, texture, and crunch of random extruded products.
First Claim
Other Claims data not available
