Direct Measurement of Reflected Waves of Multi-Port Antennas by Using Circulators

Number of patents in Portfolio can not be more than 2000

United States of America Patent

SERIAL NO

15399917

Stats

ATTORNEY / AGENT: (SPONSORED)

Importance

Loading Importance Indicators... loading....

Abstract

See full text

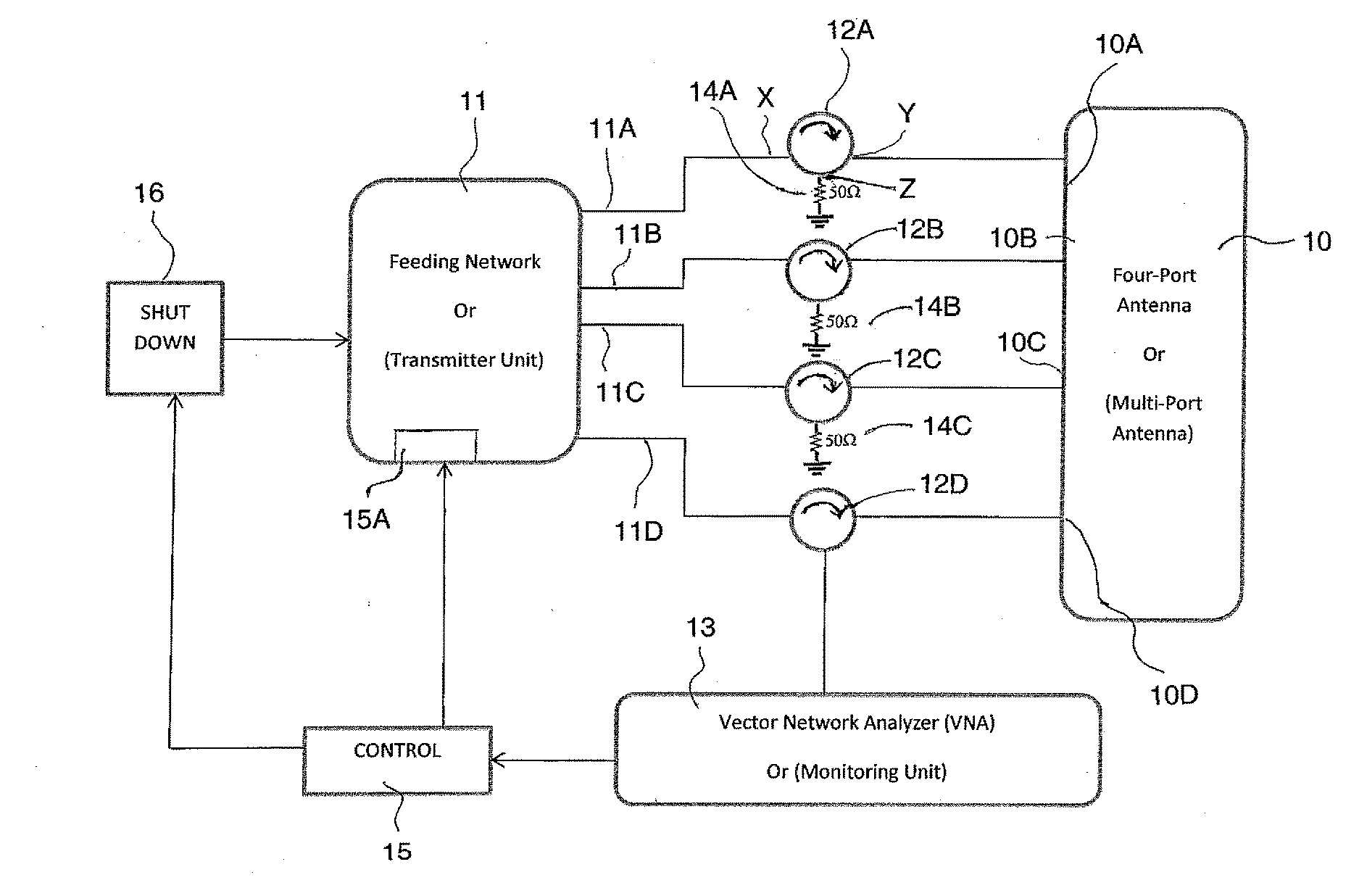

Power of reflected waves of a multi-port antenna apparatus is measured by connecting a circulator between the respective output of the multi-output feeding network and the multi-port antenna. Each circulator has a plurality of ports where the output signal from the network is communicated to a first port of through the circulator and from the second port of the circulator to the respective port of the multi-port antenna and such that the reflected waves from the respective port of the multi-port antenna are communicated back to the second port of the circulator and through the circulator to a third port of the circulator and measuring the reflected waves from a selected one of the ports of the multi-port antenna by connecting the third port of the respective circulator to a vector network analyzer while connecting each of the third ports of the remaining circulators to a standard matching load.
