DISPLAY DEVICE INCLUDING ALIGNMENT LAYER DEFINING GROOVES AND MANUFACTURING METHOD THEREOF
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Aug 19, 2016
filing date -
Jan 8, 2016
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

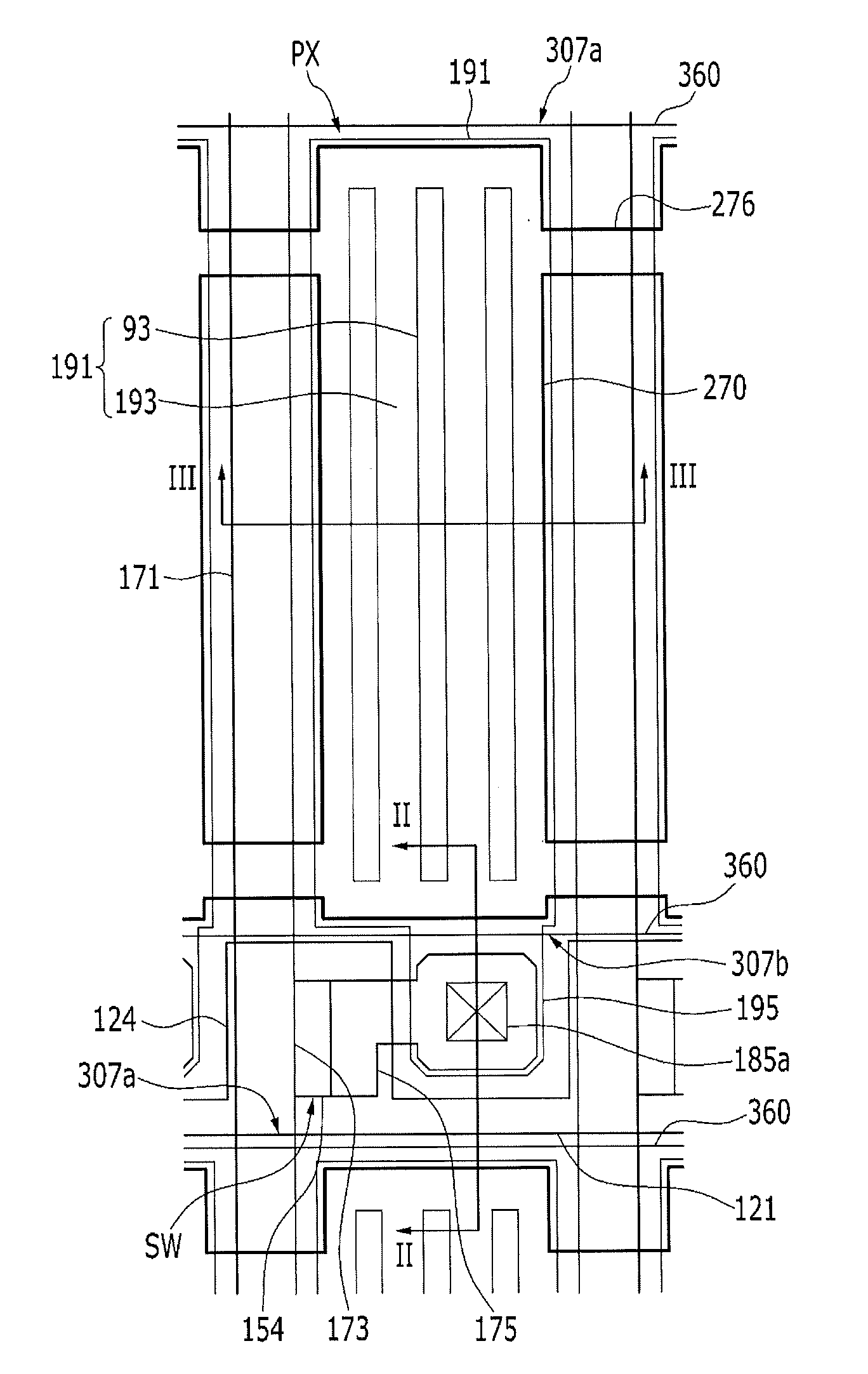

A display device includes: a substrate; a thin film transistor on the substrate; a pixel electrode connected to the thin film transistor; a common electrode overlapping the pixel electrode; an insulating layer between the pixel electrode and the common electrode; a roof layer spaced apart from the pixel electrode; a microcavity provided in plurality each defined between the roof layer and the pixel electrode spaced apart from each other; a first alignment layer between the microcavity and the pixel electrode and defining an upper surface thereof adjacent to the microcavity which defines a first groove of the first alignment layer; a second alignment layer between the microcavity and the roof layer and defining an upper surface thereof opposing the microcavity which defines a second groove of the second alignment layer; and an optical medium layer disposed in the plurality of microcavities.
