TGS cable socket including rubber damper and method of manufacturing the same
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 17, 2018
Grant Date -
Jul 13, 2017
app pub date -
Nov 9, 2016
filing date -
Jan 7, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

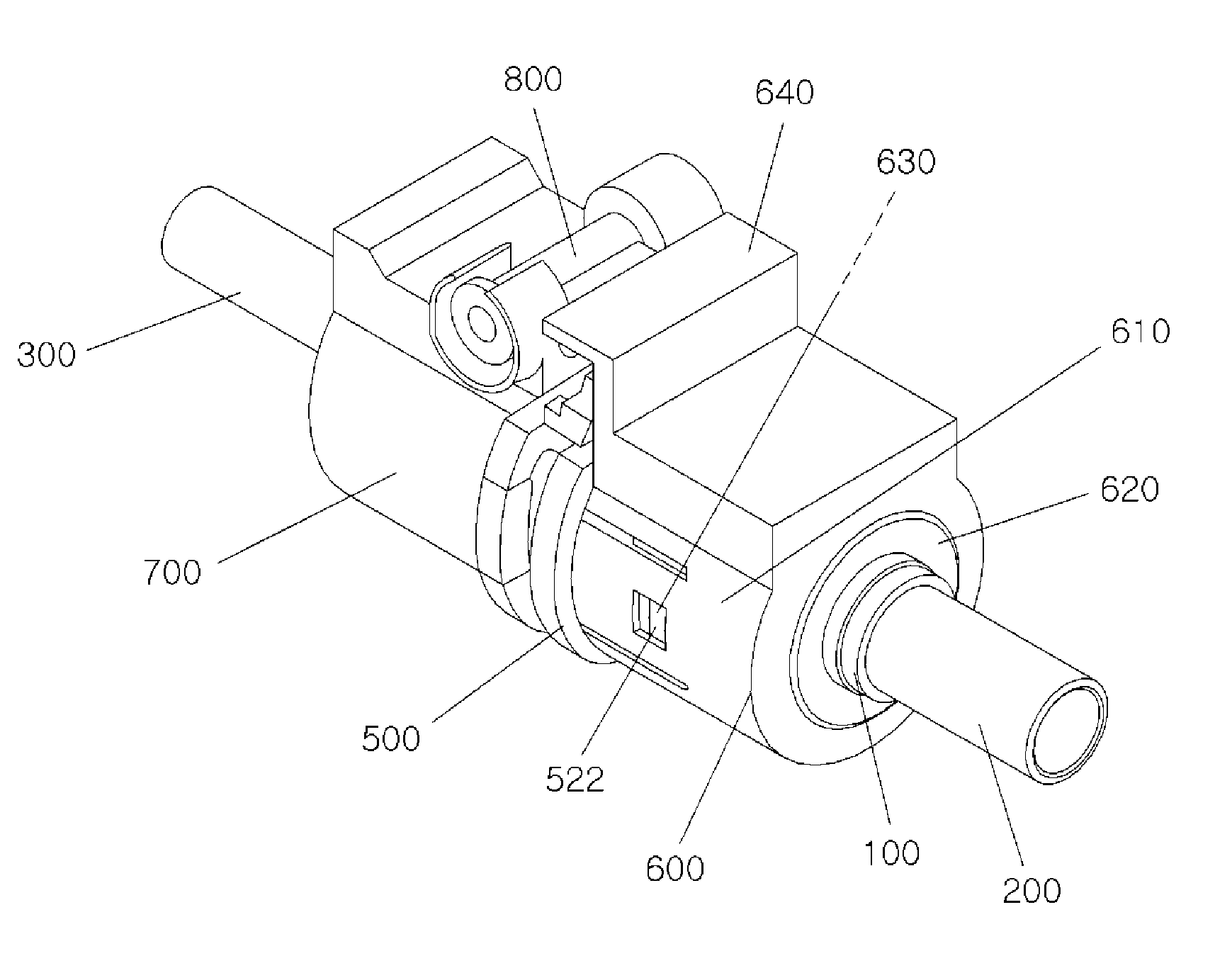

A Transmission Gear Shift (TGS) cable socket including a rubber damper to couple a TGS lever and an outer cable to each other so a manipulation force of the TGS lever is transmitted to a transmission through an inner cable disposed in the outer cable, may include the rubber damper to damp vibration transmitted from the outer cable, a steel cup disposed coaxially with the rubber damper, the steel cup having a first end disposed in the rubber damper, and a second end protruding from the rubber damper and coupled to the outer cable, and a guide pipe disposed coaxially with the rubber damper, the guide pipe including a first end disposed in the rubber damper at a position spaced apart from the steel cup, and a second end protruding from the rubber damper.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date |
|---|---|---|---|
| KR | B1 | KR101745240 | Jan 07, 2016 |
| CN | B | CN106945517 | Nov 21, 2016 |
| DE | A1 | DE102016122598 | Nov 23, 2016 |
International Classification(s)
- 2016 Application Filing Year
- F16C Class
- 1479 Applications Filed
- 1109 Patents Issued To-Date
- 74.99 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- F16C Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jan 17, 2026 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jan 17, 2030 |
