Fluid pump with multiple pump heads
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 29, 2020
Grant Date -
Jul 13, 2017
app pub date -
Mar 24, 2017
filing date -
Sep 25, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

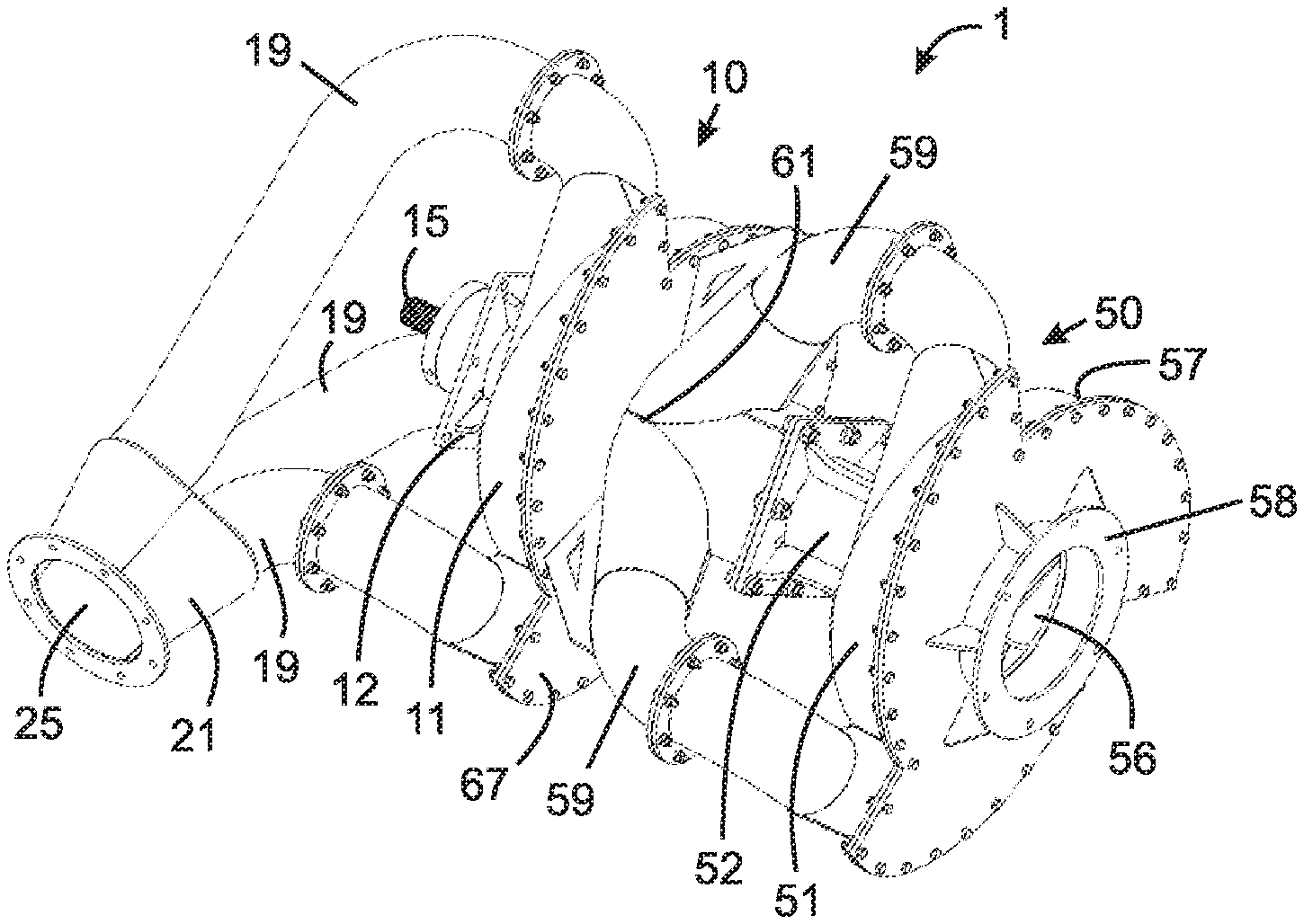

A fluid pump having at least two pump heads in series permits pumping fluid at both high pressure and high volumetric rate. Each pump head has at least two fluid conduits in fluid communication with a housing, the housing containing an impeller for drawing fluid through an inlet in the housing and moving the fluid through the fluid conduits. The at least two fluid conduits of one pump head combine fluid flow at the inlet of a neighboring pump head to provide a single flow of fluid through the inlet into the neighboring pump head. A drive structure passing through the inlets between two pump heads is configured to commonly drive the impellers in the housing of each pump head.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- F04D Class
- 60.53 % this patent is cited more than
- 5 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Mar 29, 2028 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Mar 29, 2032 |
