METHOD AND APPARATUS FOR PROVIDING REINFORCED COMPOSITE MATERIALS WITH EMI SHIELDING
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Jul 13, 2017
app pub date -
Jan 20, 2017
filing date -
Oct 6, 2010
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

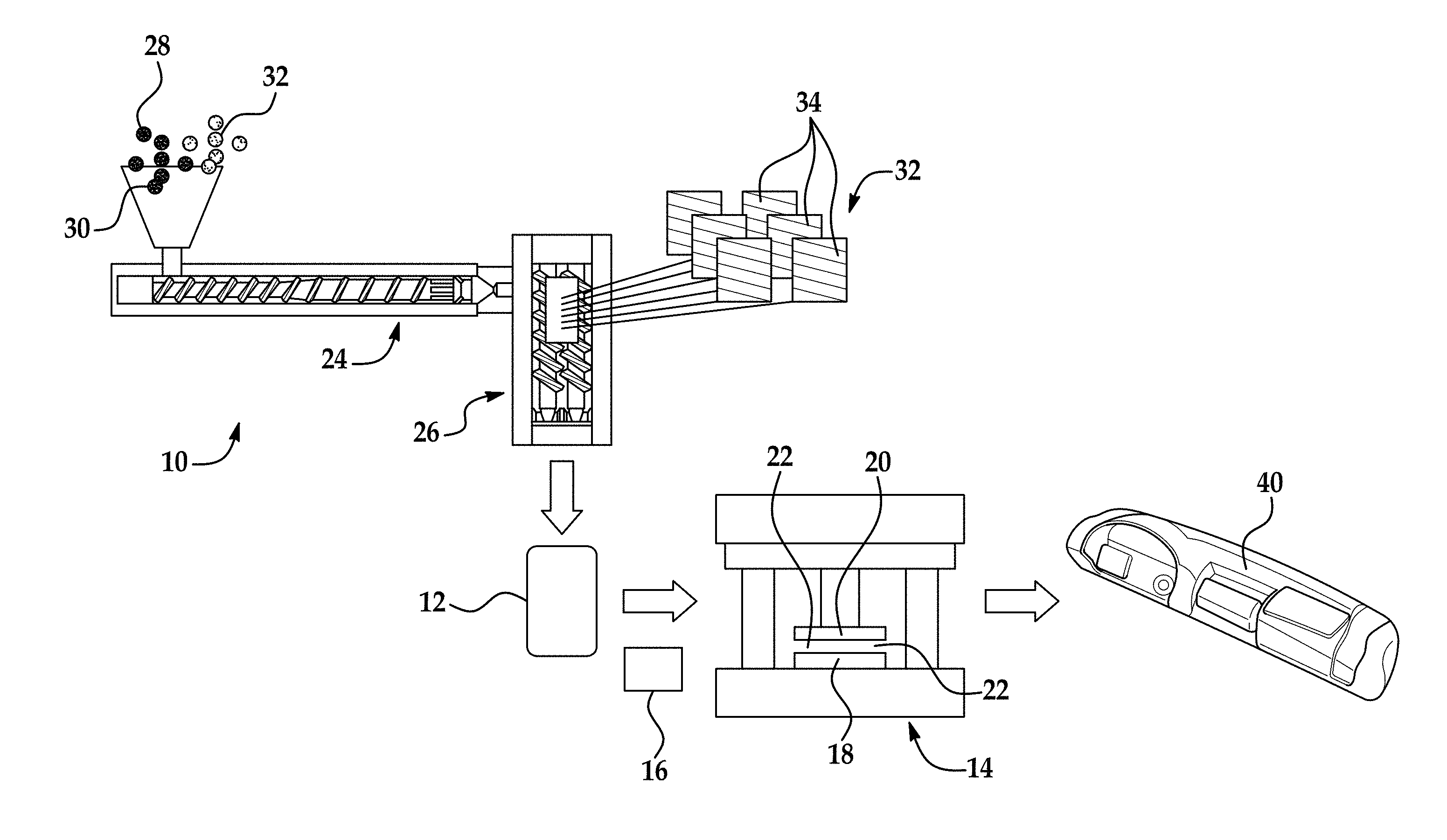

A method of forming an item with electromagnetic interference shielding, the method including the steps of: inserting a first polymer into a first compounding extruder, wherein the first compounding extruder provides a first melted charge; inserting the first melted charge into a second compounding extruder, wherein the second compounding extruder introduces a plurality of conductive fibers into the first melted charge and wherein the second compounding extruder provides a second melted charge comprising the first melted charge and a plurality of conductive fibers; depositing the second melted charge onto a least one die of a compression mold; and closing the compression mold about the second melted charge in order to form the item.
First Claim
Other Claims data not available
