Compact, Componentized Hardware Architecture and Reference Platform Family for Low-Power, Low-Cost, High-Fidelity In Situ Sensing
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Feb 11, 2015
filing date -
Oct 14, 2010
priority date (Note) -
Abandoned
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

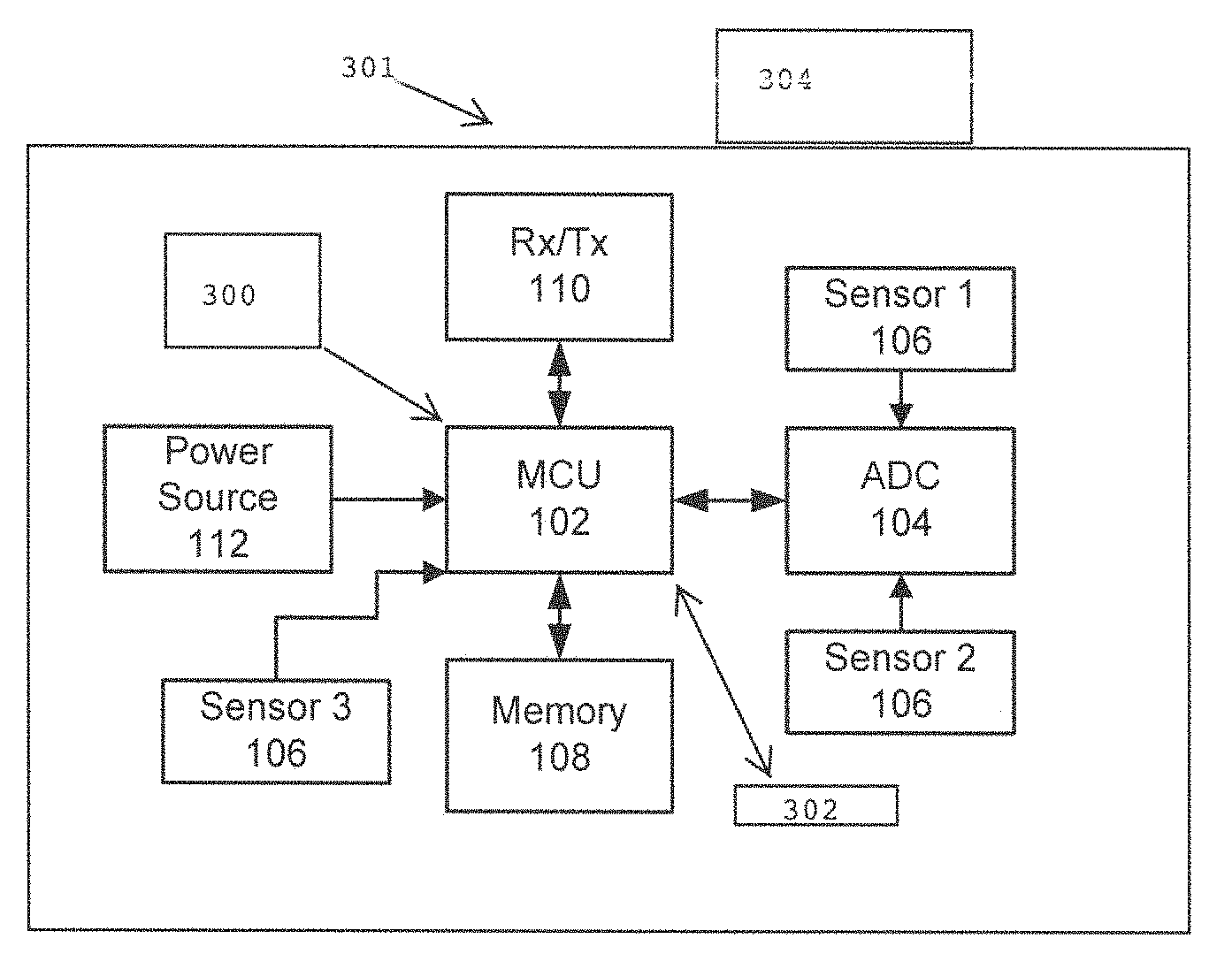

A stackable mote device comprising at least one local sensor set comprising one or more configurable sensing devices is described. The configurable sensing devices are configured through power-gated sensor headers and configured to be electrically coupled by stacking in any order to transmit data to at least one communication. The said devices comprises in a stack of layers: a controlling circuit board comprising a microcontroller unit; at least one peripheral circuit board comprising a sensor; an interface circuit board comprising an interface; a storage circuit board configured to store information; and a communication circuit board comprising a radio transmitter. A power source is provided wherein the power source provides power to the local sensor set. A voltage disconnect is provided which is capable of disconnecting the power source from the local sensor set when the power source has a voltage below a threshold.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date |
|---|---|---|---|
| US | A1 | US20110087462 | Oct 14, 2010 |
