Multipath switching using per-hop virtual local area network classification
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 2, 2018
Issued Date -
N/A
app pub date -
Dec 30, 2015
filing date -
Dec 30, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

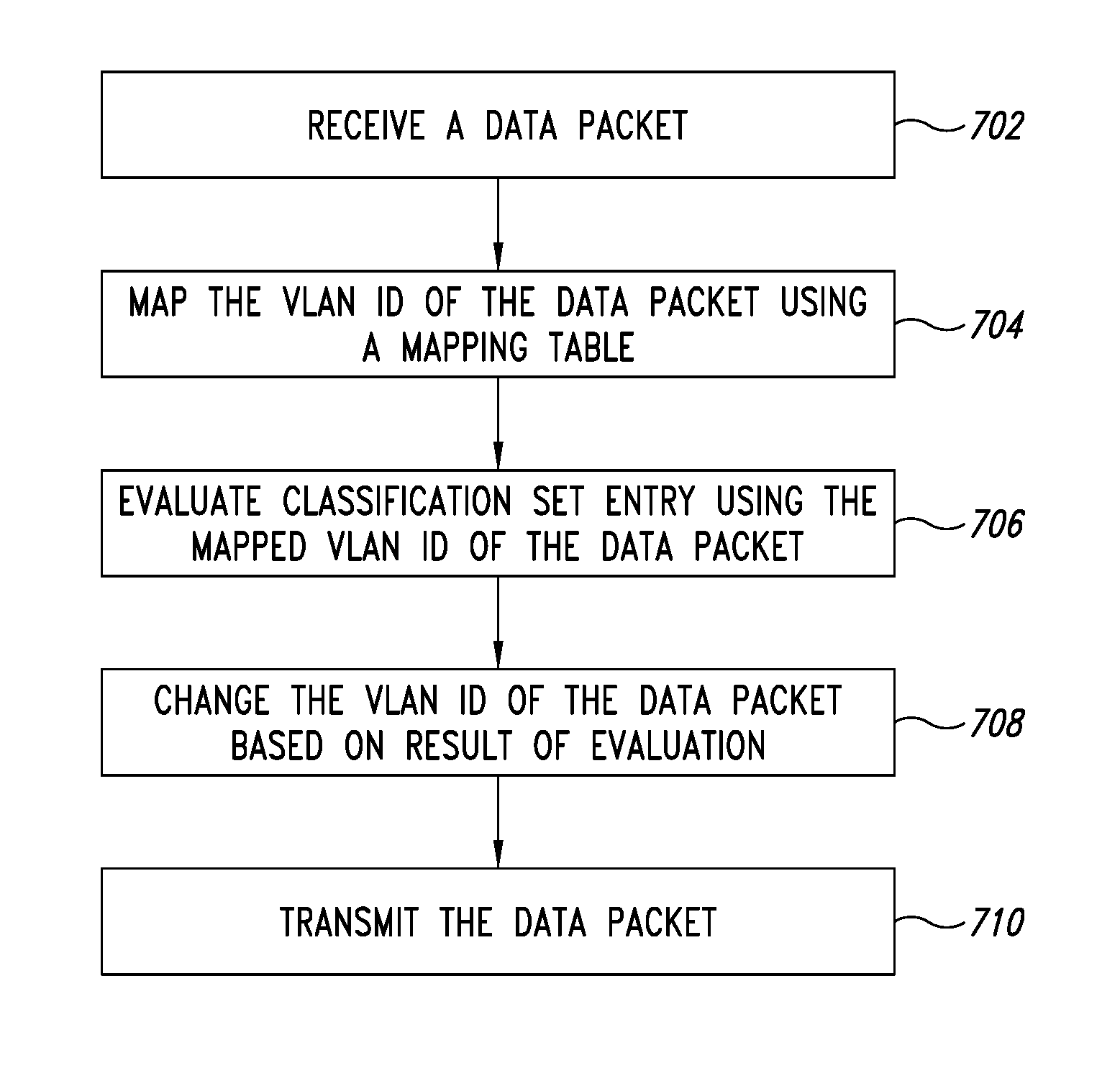

A method and apparatus for multipath switching using per-hop virtual local area network (VLAN) remapping is disclosed. In the method and apparatus, a data packet is forwarded for transmission over one of a first port and a second port. The device identifies a VLAN ID of the data packet as a second VLAN ID and changes the second VLAN ID to a first VLAN ID. Then one or more criteria of a classification set entry for forwarding the data packet over the second port are evaluated. The data packet is forwarded over the second port if the criteria are met and the data packet is associated with the second VLAN ID. Alternatively, the data packet is forwarded over the first port and is associated with the first VLAN ID if a dynamic entry specifies the data packet is to be forwarded over the first port.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- H04L Class
- 33706 Applications Filed
- 25909 Patents Issued To-Date
- 76.87 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- H04L Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 2, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 2, 2029 |
