Axial-gap dynamo-electric machine
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 2, 2021
Grant Date -
Jul 6, 2017
app pub date -
Apr 14, 2014
filing date -
Apr 14, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

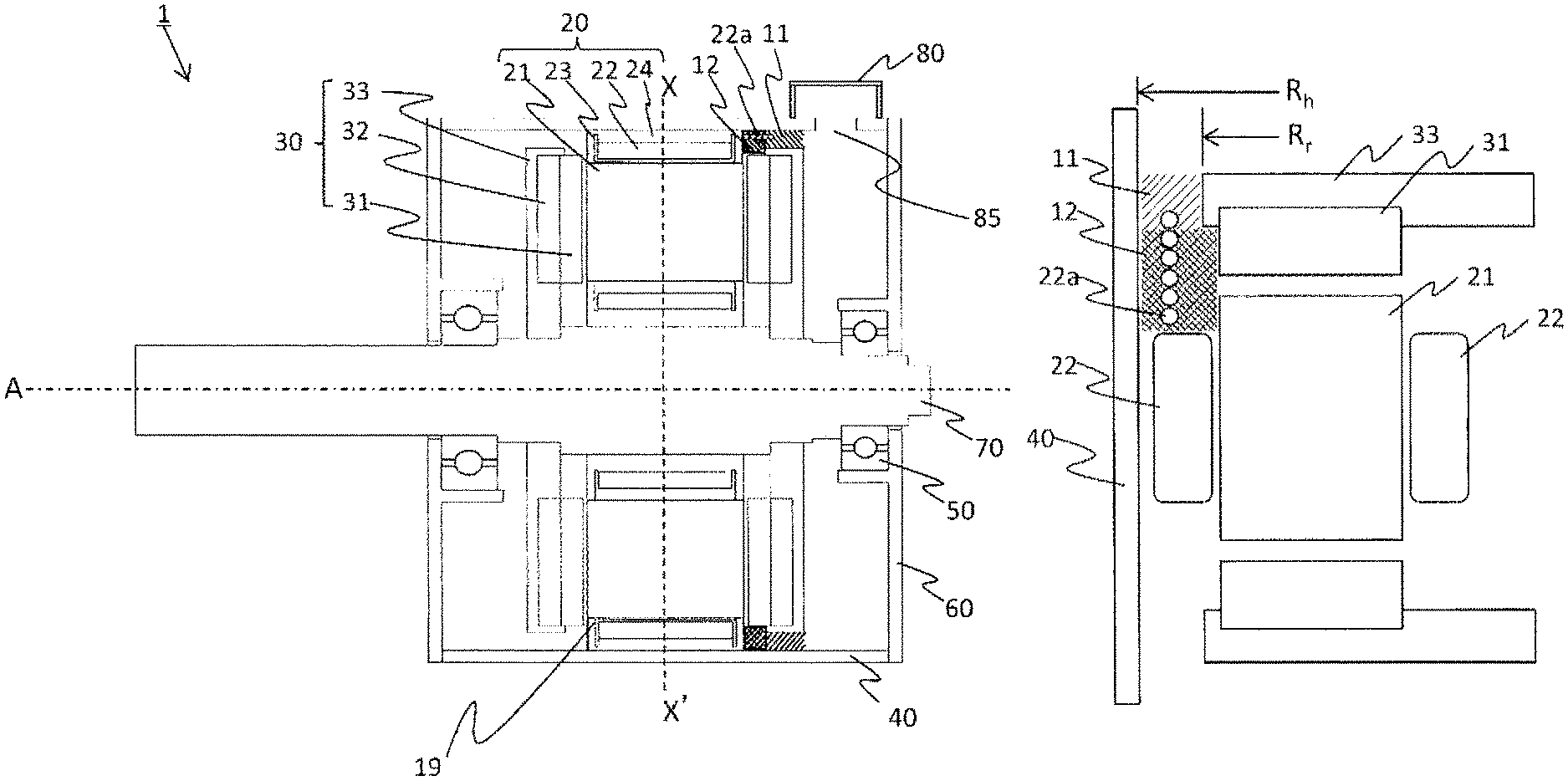

This invention reduces the shaft voltage of an axial-air-gap dynamo-electric machine while ensuring high output and high efficiency. Said axial-air-gap dynamo-electric machine comprises the following: a stator comprising a plurality of stator cores, each of which comprises a core and a coil, arranged in a circle around a shaft; a housing, the inside surface of which faces the stator radially; and at least one rotor, the surface of which faces the surface of the stator with a prescribed air gap interposed therebetween in the radial direction of the shaft. The rotor has, on the outside thereof, a conductive section comprising a conductive member. This axial-air-gap dynamo-electric machine has a first region where the inside surface of the housing faces the aforementioned conductive section radially and a second region, closer to the stator than the first region is, that extends to the coil side surfaces that face the rotor. The proportion of connecting wires in the second region is higher than in the first region.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2014 Application Filing Year
- H02K Class
- 2148 Applications Filed
- 1788 Patents Issued To-Date
- 83.25 % Issued To-Date
