Rectification and regulation circuit for a wireless power receiver
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 20, 2018
Grant Date -
Jun 29, 2017
app pub date -
Mar 10, 2017
filing date -
May 30, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

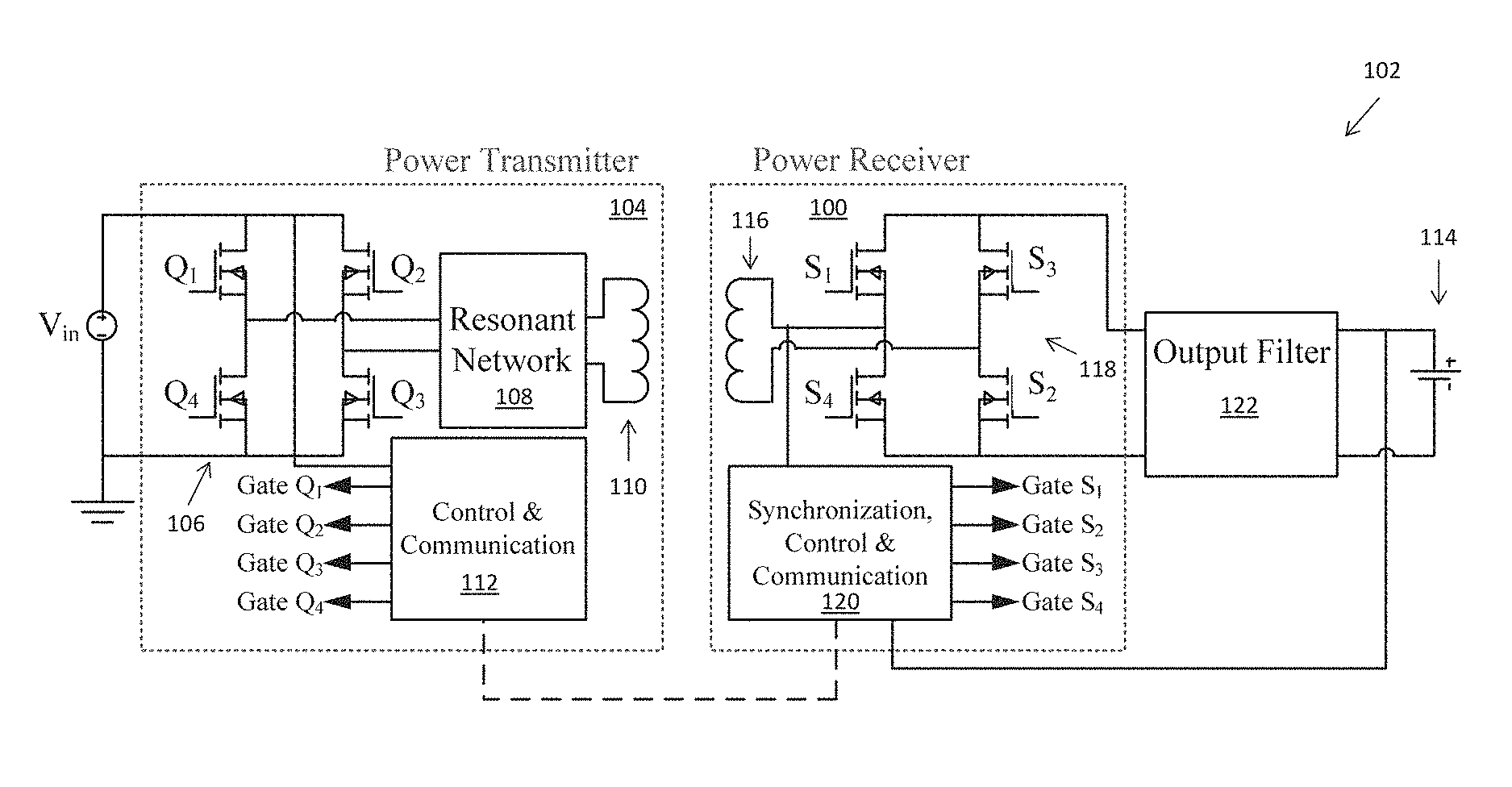

A rectification and regulation circuit for a wireless power receiver includes a coil for magnetically coupling to a primary coil of a power transmitter, a full-wave rectifier circuit separate from the power transmitter and a control unit separate from the power transmitter. The full-wave rectifier has a first pair of controllable rectifiers including a first transistor connected to a first terminal of the coil and a second transistor connected to a second terminal of the coil. The control unit is operable to control switching of the transistors of the full-wave rectifier so that the full-wave rectifier (a) generates a rectified output for charging a battery of the wireless power receiver by rectifying current through the coil or voltage across the coil, and (b) regulates the rectified output.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date |
|---|---|---|---|
| US | B2 | US9634514 | May 30, 2014 |
| CN | B | CN105322817 | May 19, 2015 |
| DE | A1 | DE102015107957 | May 20, 2015 |
| KR | B1 | KR101755099 | May 28, 2015 |
International Classification(s)
- 2017 Application Filing Year
- H02J Class
- 5376 Applications Filed
- 3962 Patents Issued To-Date
- 73.70 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- H02J Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Sep 20, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Sep 20, 2029 |
