RECEIVER CONTAINER AND RECEIVER UNIT FOR RECEIVING BODY FLUID
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Apr 8, 2015
filing date -
Apr 9, 2014
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

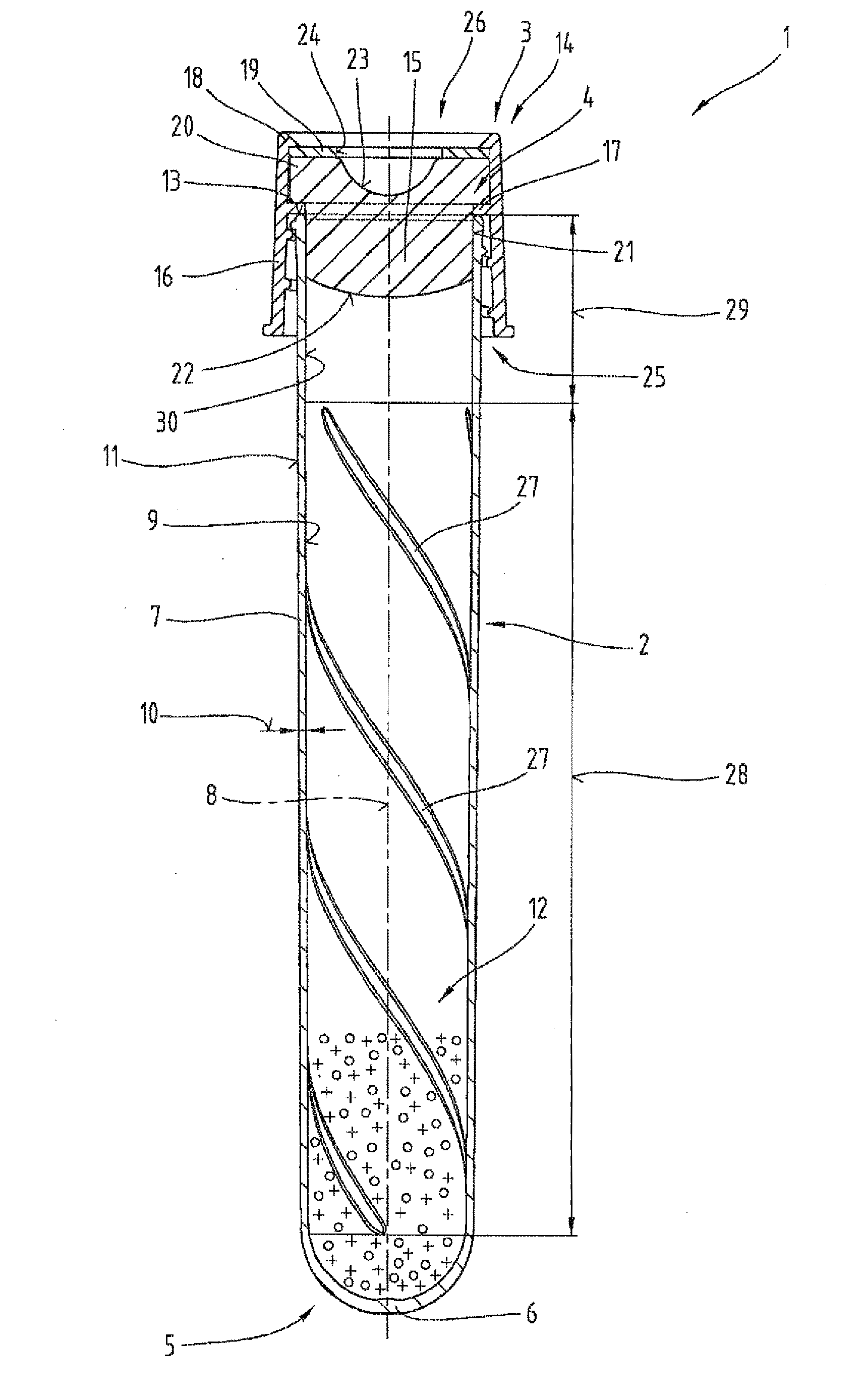

The invention relates to a receiver container (2) for receiving body fluid, in particular blood, comprising an open end (4), an end (5) closed by a base wall (6) and a container wall (7) which extends therebetween and defines a longitudinal axis (8). The container wall (7) has an internal surface (9) and an external surface (11) spaced apart therefrom by a wall thickness (10). The receiver container (2) is made from a plastic material. At least one reinforcement rib (27) is arranged on at least one first subsection (28) of the internal surface (9) of the container wall (7) and protrudes towards the longitudinal axis (8), said first subsection (28) extending from the region of the closed end (5) and in the direction towards the open end (4). The invention also relates to a receiver unit (1) comprising such a receiver container (2) which is closed by a closure device (3).
First Claim
Other Claims data not available
