WATERPROOF ELECTRONIC DEVICE WITH PRESSURE-EQUILIBRIUM FUNCTIONS
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Jun 22, 2017
app pub date -
Dec 17, 2015
filing date -
Dec 17, 2015
priority date (Note) -
Published
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

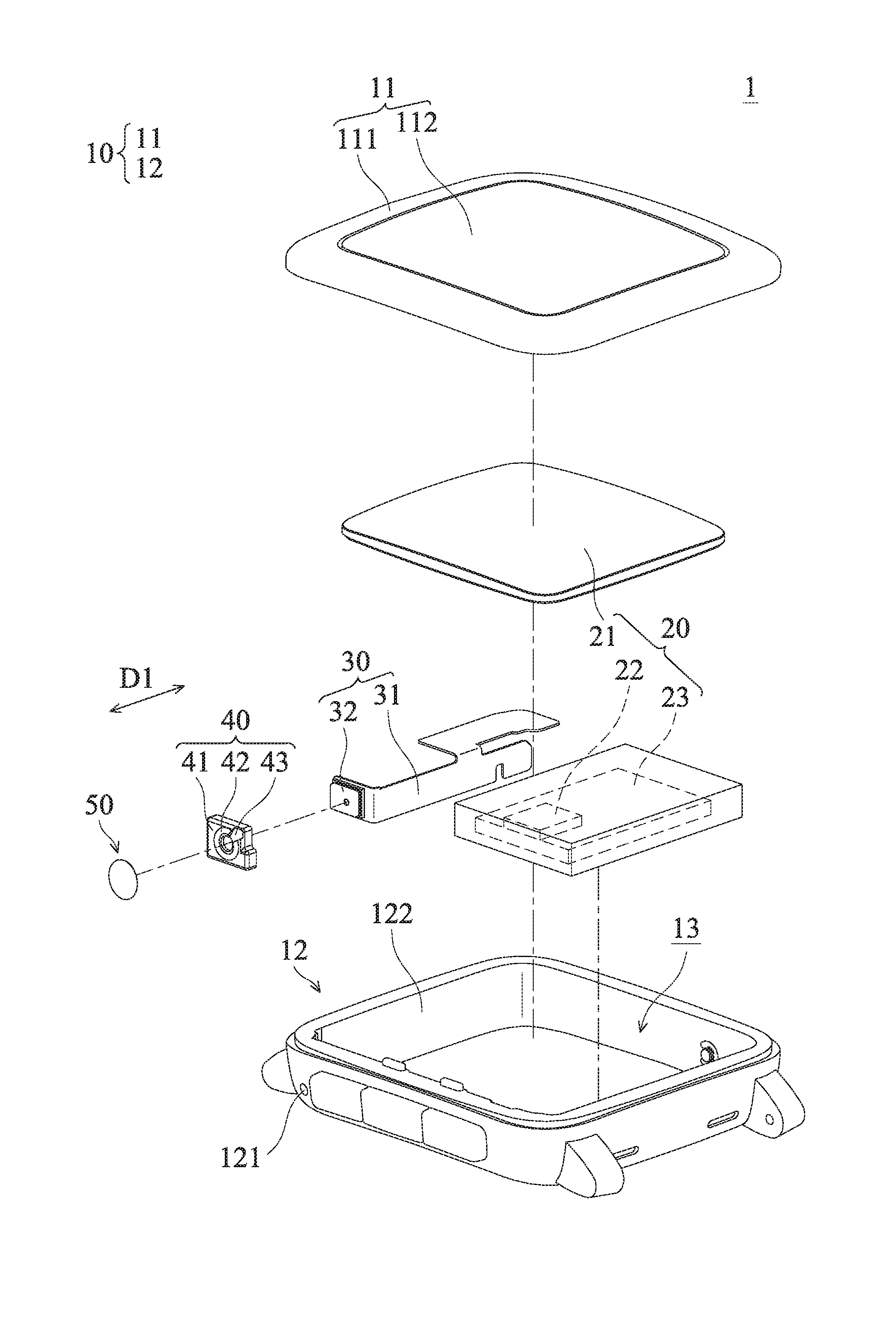

A waterproof electronic device that is waterproof and has pressure-equilibrium functions is provided. The waterproof electronic device includes a housing, a microphone, an elastic element, and a waterproof element. The housing has a chamber and an acoustic hole communicating with the chamber. The microphone is disposed in the chamber. The elastic element is disposed on the microphone. The elastic element includes a through hole facing the microphone, and a ventilation groove communicating with the through hole. The waterproof element is connected to the elastic element and the housing, and is configured to block liquid. The waterproof element includes pores communicating with the acoustic hole and the through hole.
First Claim
Other Claims data not available
