SUPERCHARGER COUPLING ASSEMBLY
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Mar 9, 2017
filing date -
Sep 9, 2014
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

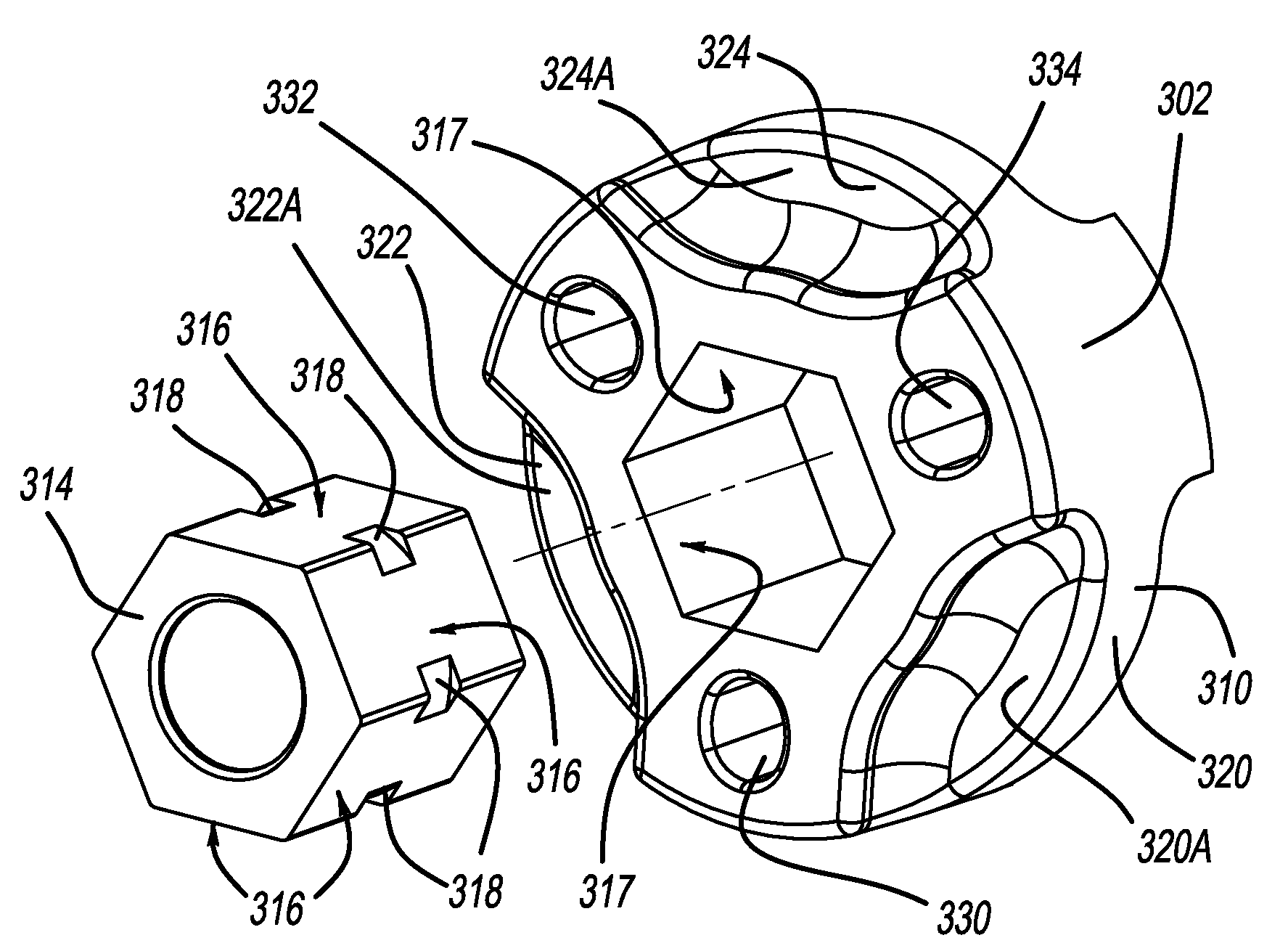

A coupling assembly arranged between an input shaft and a rotor shaft of a supercharger constructed in accordance to one example of the present disclosure includes a coupling hub and a plurality of pins. The coupling hub can have a series of lobes. Adjacent lobes of the series of lobes can define a plurality of openings. The coupling hub can further define a mounting bore therein. The plurality of pins can have first ends and second ends. The first ends can be correspondingly received by the plurality of openings. The second ends can be received by the rotor shaft. The input shaft can be directly mounted into the mounting bore of the coupling hub for concurrent rotation therewith.
First Claim
Other Claims data not available
