Straightening device for straightening cables
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 15, 2020
Grant Date -
Jun 22, 2017
app pub date -
Nov 30, 2016
filing date -
Dec 21, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

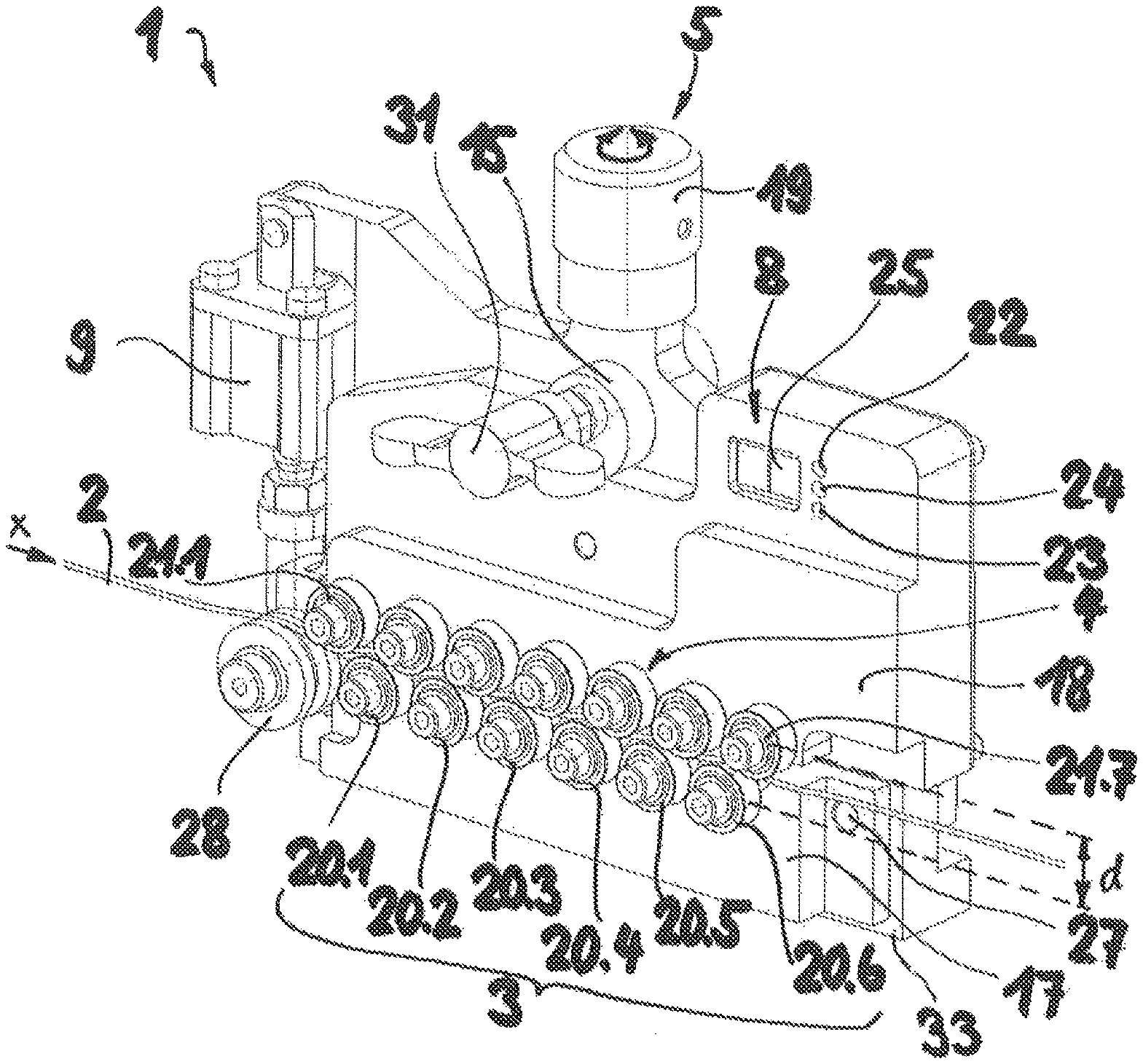

A straightening device for straightening cables includes two rows of rollers, an adjusting device for manually adjusting a distance between the rows of rollers, a measuring device for recording the distance between the rows of rollers, and an indicator device with which deviations of the actual value of the distance between the rows of rollers, determined by the measuring device, from a nominal value is visually indicated. The indicator device has two optical error indicating elements for indicating too high and/or too low an actual value compared with the nominal value of the distance, as well as an optical ‘correct’ indicating element for indicating that the actual value of the distance corresponds with the nominal value.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2016 Application Filing Year
- D07B Class
- 79 Applications Filed
- 53 Patents Issued To-Date
- 67.09 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- D07B Class
- 63.64 % this patent is cited more than
- 5 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Mar 15, 2028 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Mar 15, 2032 |
