BAW sensor device with peel-resistant wall structure
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 25, 2019
Grant Date -
Jun 15, 2017
app pub date -
Dec 13, 2016
filing date -
Dec 14, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

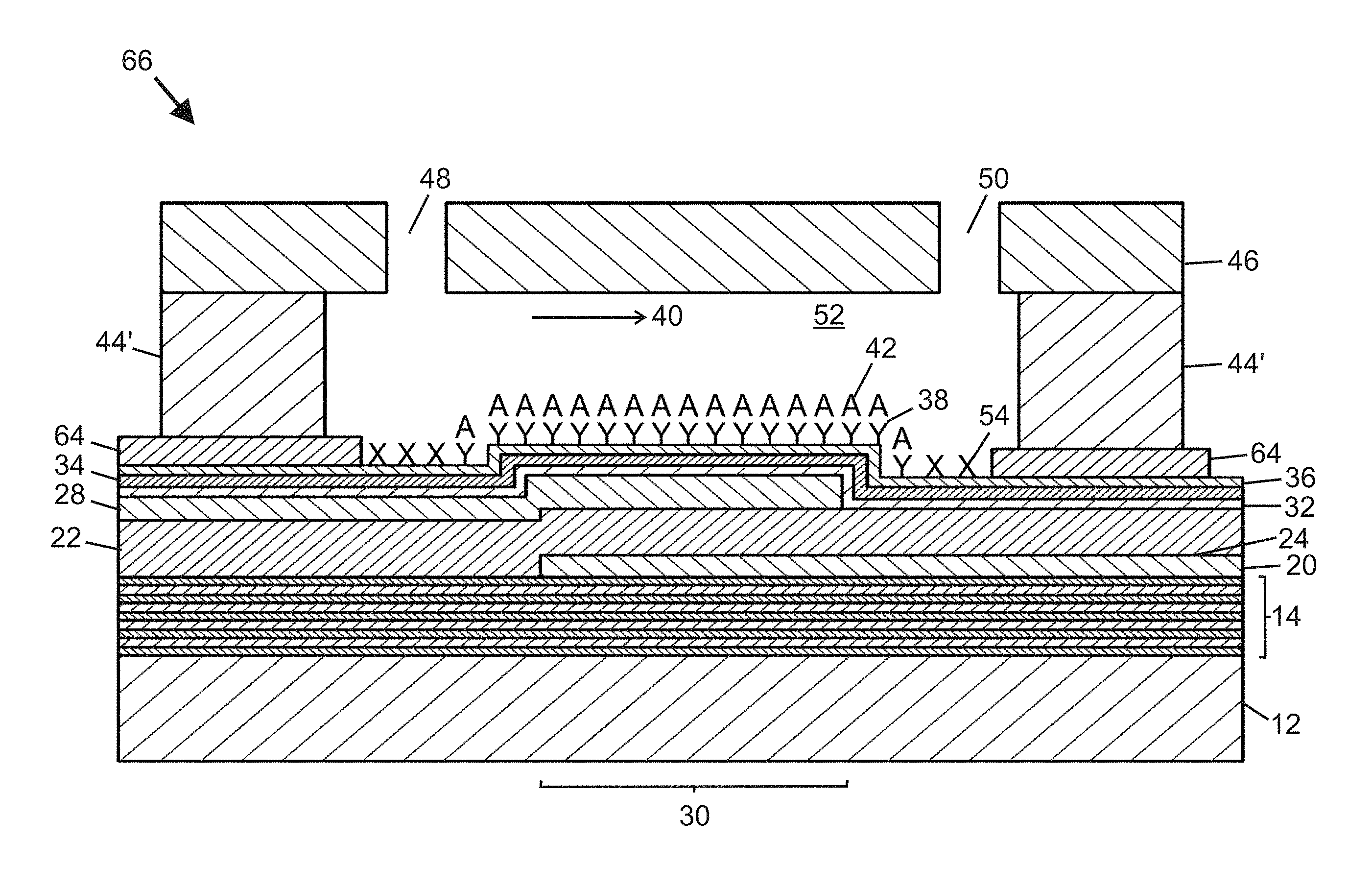

Lateral boundaries of a fluidic passage of a fluidic device incorporating at least one BAW resonator structure are fabricated with photosensitive materials (e.g., photo definable epoxy, solder mask resist, or other photoresist), allowing for high aspect ratio, precisely dimensioned walls. Resistance to delamination and peeling between a wall structure and a base structure is enhanced by providing a wall structure that includes a thin footer portion having a width that exceeds a width of an upper wall portion extending upward from the footer portion, and/or by providing a wall structure arranged over at least one anchoring region of a base structure. Anchoring features may include recesses and/or protrusions.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2016 Application Filing Year
- G01N Class
- 12375 Applications Filed
- 8515 Patents Issued To-Date
- 68.81 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- G01N Class
- 49.06 % this patent is cited more than
- 6 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Dec 25, 2026 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Dec 25, 2030 |
