Flow rate sensor correction device, program for correction device, and correction method
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 25, 2019
Grant Date -
Jun 15, 2017
app pub date -
Dec 13, 2016
filing date -
Dec 15, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

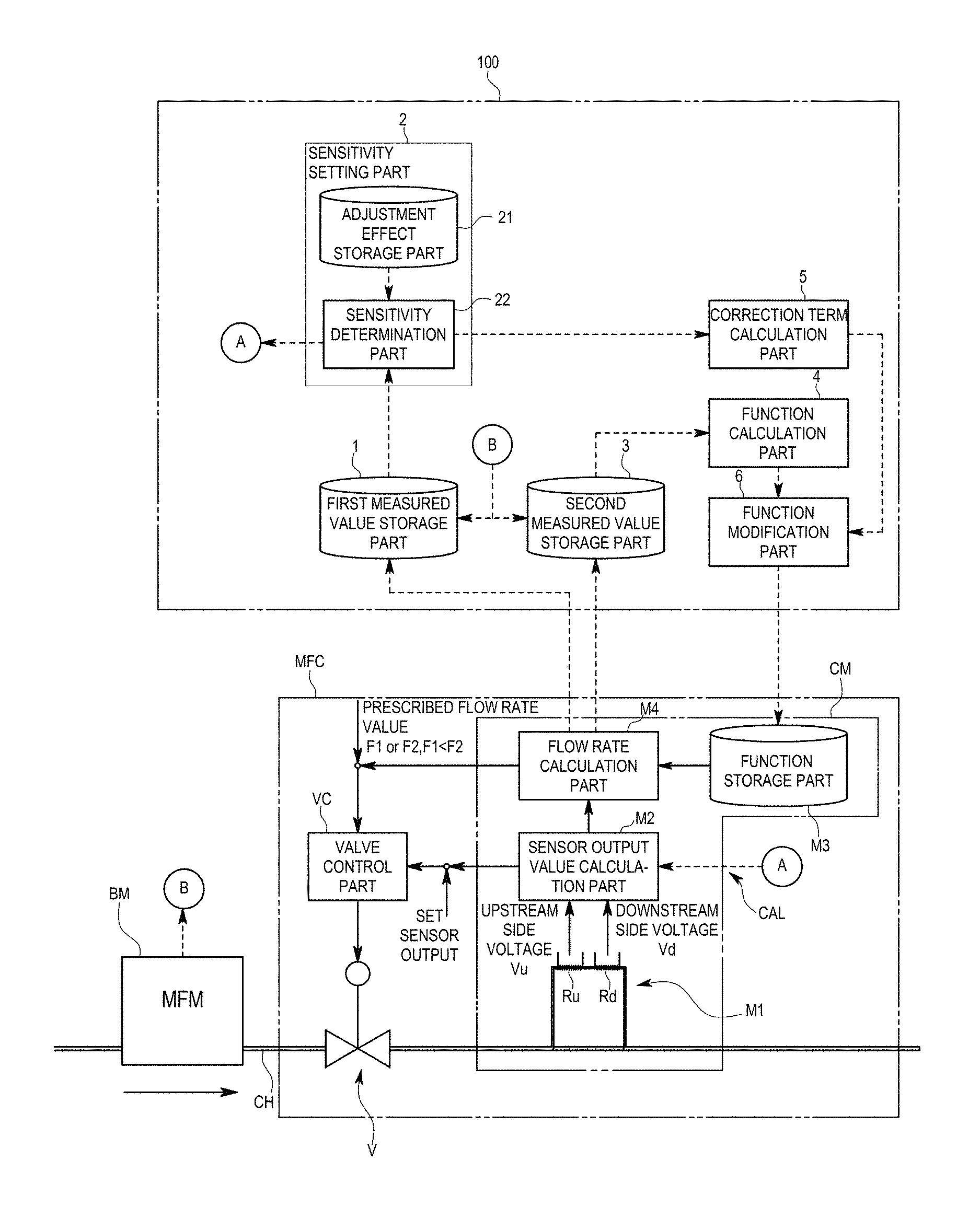

In order to reduce a flow rate error over the entire range of a sensor output value even when the relationship between the sensor output value and a flow rate value is poor in linearity, a flow rate sensor correction device includes: a sensitivity setting part adapted to set a sensitivity coefficient on the basis of an initial value and a sensitivity correction value and adjust the sensitivity of the flow rate sensor; a function calculation part adapted to calculate a corrected flow rate characteristic function on the basis of a function correction value, which is determined on the basis of the flow rate value, and a standard flow rate characteristic function; and a function modification part adapted to make a function storage part store, as a flow rate characteristic function, a final flow rate characteristic function based on the corrected flow rate characteristic.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- G01F Class
- 0 % this patent is cited more than
- 6 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Dec 25, 2026 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Dec 25, 2030 |
