X-RAY ILLUMINATORS WITH HIGH FLUX AND HIGH FLUX DENSITY
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Feb 14, 2017
filing date -
Dec 5, 2013
priority date (Note) -
Published
status (Latency Note)
![]() |
A preliminary load of PAIR data current through [] has been loaded. Any more recent PAIR data will be loaded within twenty-four hours. |
PAIR data current through []
A preliminary load of cached data will be loaded soon.
Any more recent PAIR data will be loaded within twenty-four hours.
![]() |
Next PAIR Update Scheduled on [ ] |

Importance

US Family Size
|
Non-US Coverage
|
Abstract

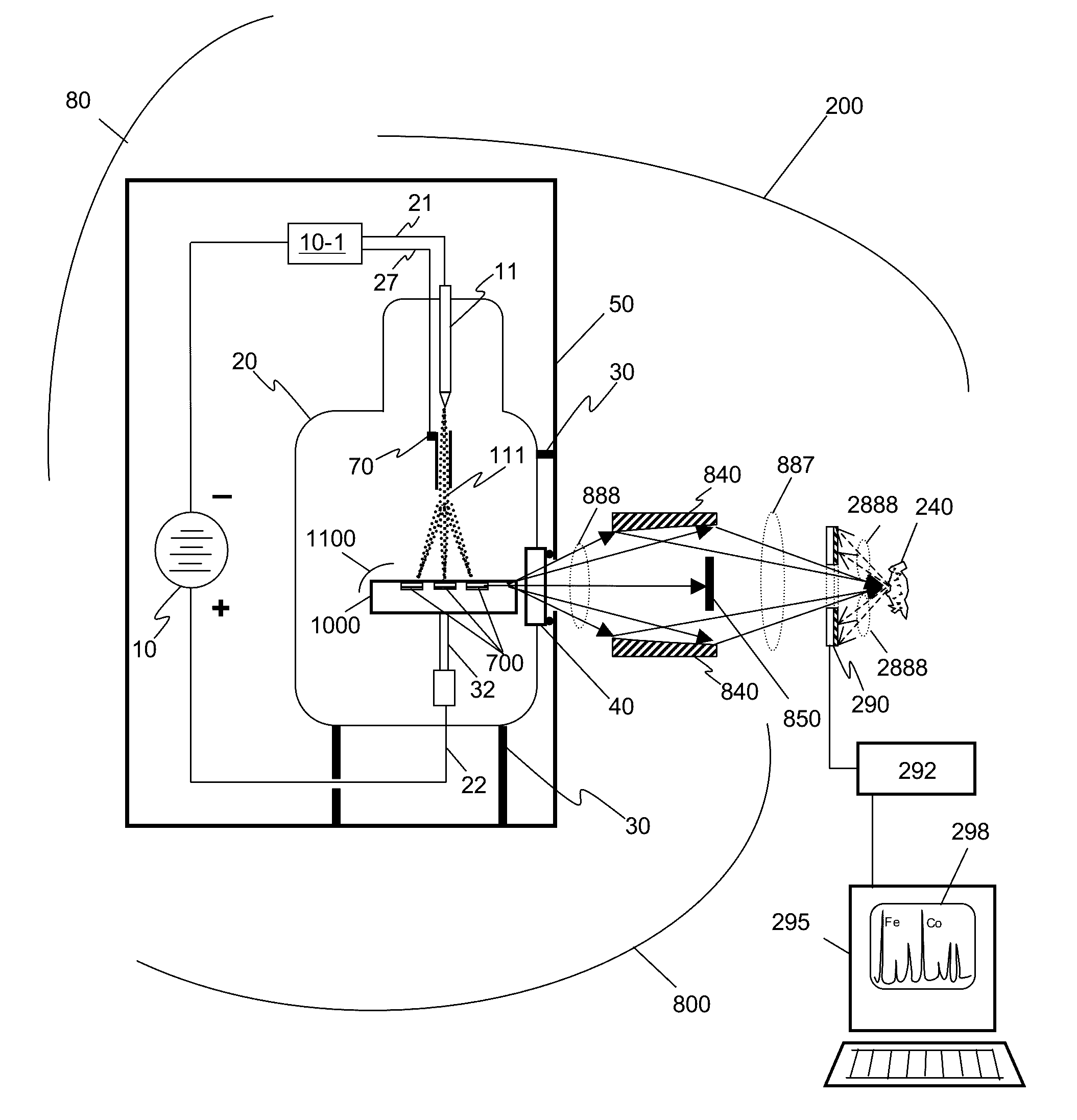

Systems for x-ray illumination that have an x-ray brightness several orders of magnitude greater than existing x-ray technologies. These may therefore useful for applications such as trace element detection or for micro-focus fluorescence analysis. The higher brightness is achieved in part by using designs for x-ray targets that comprise a number of microstructures of one or more selected x-ray generating materials fabricated in close thermal contact with a substrate having high thermal conductivity. This allows for bombardment of the targets with higher electron density or higher energy electrons, which leads to greater x-ray flux. The high brightness/high flux x-ray source may have a take-off angle from 0 to 105 mrad. and be coupled to an x-ray optical system that collects and focuses the high flux x-rays to spots that can be as small as one micron, leading to high flux density.
