Utility locating systems, devices, and methods using radio broadcast signals
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 2, 2020
Grant Date -
Jun 8, 2017
app pub date -
Nov 23, 2016
filing date -
Nov 25, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Loading Importance Indicators...
Abstract

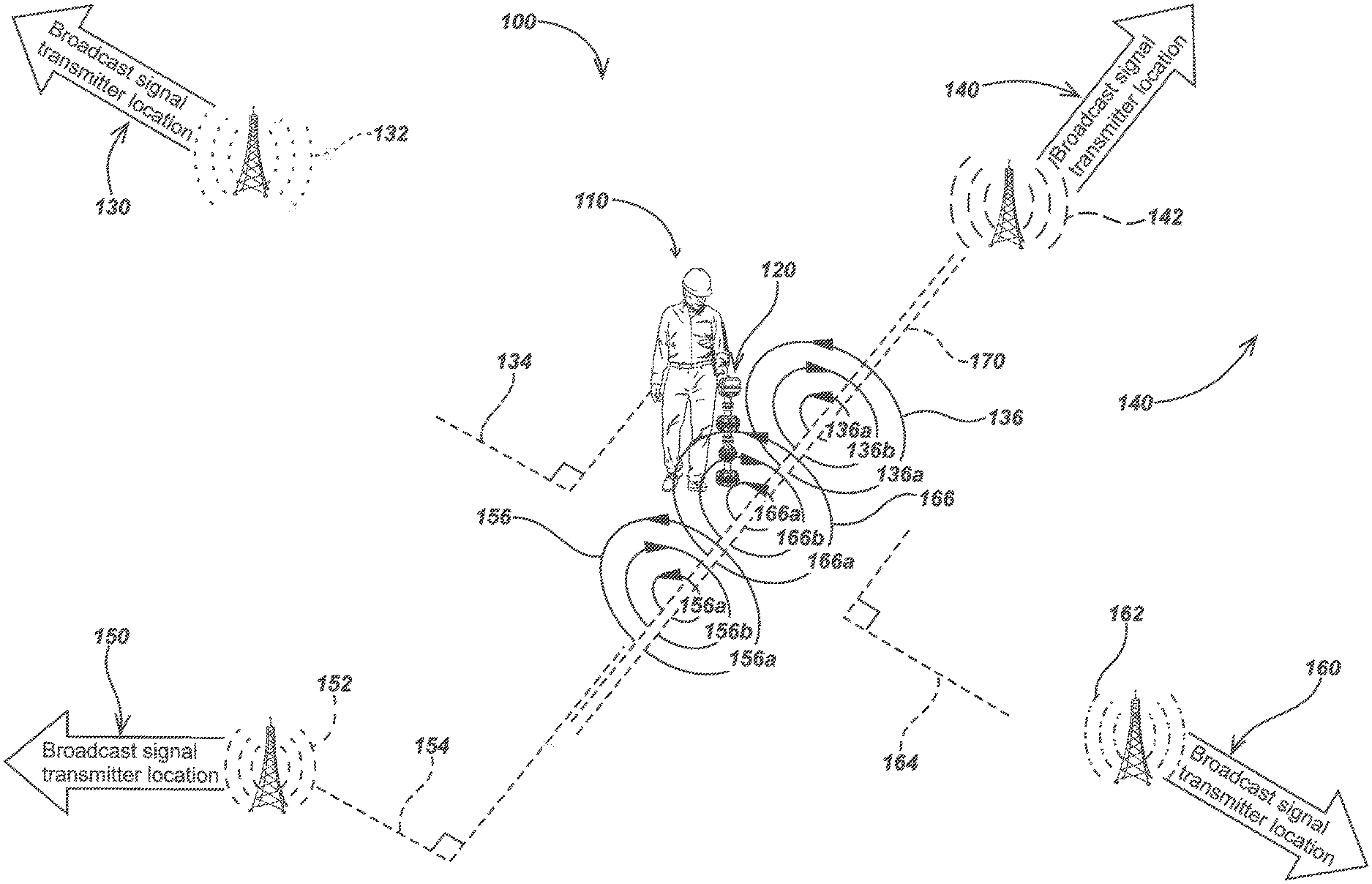

Systems, devices, and methods for locating buried conductors using ambient electromagnetic signals, such as AM or other broadcast signals, are described. A buried utility locator may include a plurality of spatially separated antenna arrays, a receiver circuit coupled thereto, and a processing element programmed to process measurements of ambient electromagnetic signals and associated electromagnetic signals radiated from current induced in the buried conductor from the ambient signals to determine information about the buried conductor.
First Claim
Other Claims data not available
Family
Loading Family data...
International Classification(s)
- 2016 Application Filing Year
- G01V Class
- 1604 Applications Filed
- 1227 Patents Issued To-Date
- 76.50 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- G01V Class
- 32.57 % this patent is cited more than
- 5 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Dec 2, 2027 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Dec 2, 2031 |
