Method for operating a refrigeration unit
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 26, 2021
Grant Date -
Jun 8, 2017
app pub date -
Feb 21, 2017
filing date -
Aug 21, 2014
priority date (Note) -
In Force
status (Latency Note)
![]() |
A preliminary load of PAIR data current through [] has been loaded. Any more recent PAIR data will be loaded within twenty-four hours. |
PAIR data current through []
A preliminary load of cached data will be loaded soon.
Any more recent PAIR data will be loaded within twenty-four hours.
![]() |
Next PAIR Update Scheduled on [ ] |

Importance

US Family Size
|
Non-US Coverage
|

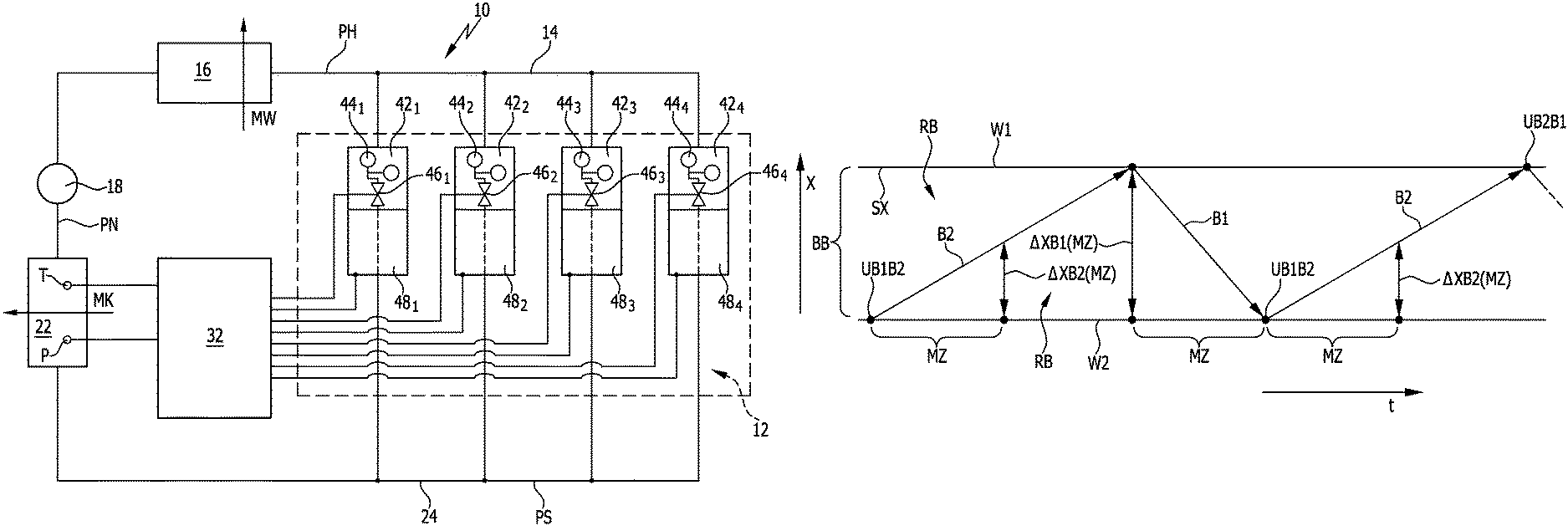

Abstract
A method for operating a refrigeration unit that includes controlling overall compressor output of the refrigeration unit having at least one state variable. The method includes operating the compressor unit either in a first mode with a first overall compressor output in which the state variable decreases or in a second mode with a second overall compressor output in which the state variable increases, wherein the first and second modes alternate. The method further includes transitioning from the second mode to the first mode when the measured state variable reaches or exceeds a first threshold, and transitioning from the first mode to the second mode when the measured state variable reaches or falls below a second threshold. The difference between the first value and the second value corresponds to the greatest of the state variable differences that result over the respective minimum duration in the first or second mode.
First Claim
all claims..Other Claims data not available
Family

- 15 United States
- 10 France
- 8 Japan
- 7 China
- 5 Korea
- 2 Other
Patent Owner(s)
Patent Owner | Address | |
---|---|---|
BITZER KUEHLMASCHINENBAU GMBH | PETER-SCHAUFLER-PLATZ 1 SINDELFINGEN 71065 |
International Classification(s)

- 2017 Application Filing Year
- F25B Class
- 1295 Applications Filed
- 923 Patents Issued To-Date
- 71.28 % Issued To-Date
Inventor(s)
Inventor Name | Address | # of filed Patents | Total Citations |
---|---|---|---|
Saboy, Manuel | Bodman-Ludwigshafen, DE | 2 | 0 |
# of filed Patents : 2 Total Citations : 0 |
Cited Art Landscape
- No Cited Art to Display

Patent Citation Ranking
- 0 Citation Count
- F25B Class
- 0 % this patent is cited more than
- 4 Age
Forward Cite Landscape
- No Forward Cites to Display

Maintenance Fees
Fee | Large entity fee | small entity fee | micro entity fee | due date |
---|---|---|---|---|
7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 26, 2028 |
11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 26, 2032 |
Fee | Large entity fee | small entity fee | micro entity fee |
---|---|---|---|
Surcharge - 7.5 year - Late payment within 6 months | $160.00 | $80.00 | $40.00 |
Surcharge - 11.5 year - Late payment within 6 months | $160.00 | $80.00 | $40.00 |
Surcharge after expiration - Late payment is unavoidable | $700.00 | $350.00 | $175.00 |
Surcharge after expiration - Late payment is unintentional | $1,640.00 | $820.00 | $410.00 |
Full Text

Legal Events
- No Legal Status data available.

Matter Detail

Renewals Detail
