FILTER APPARATUS FOR RECYCLING WATER OF A WASHING MACHINE HAVING SELF-CLEANING FUNCTION AND WASHING MACHINE
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Jun 12, 2014
filing date -
Mar 27, 2014
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

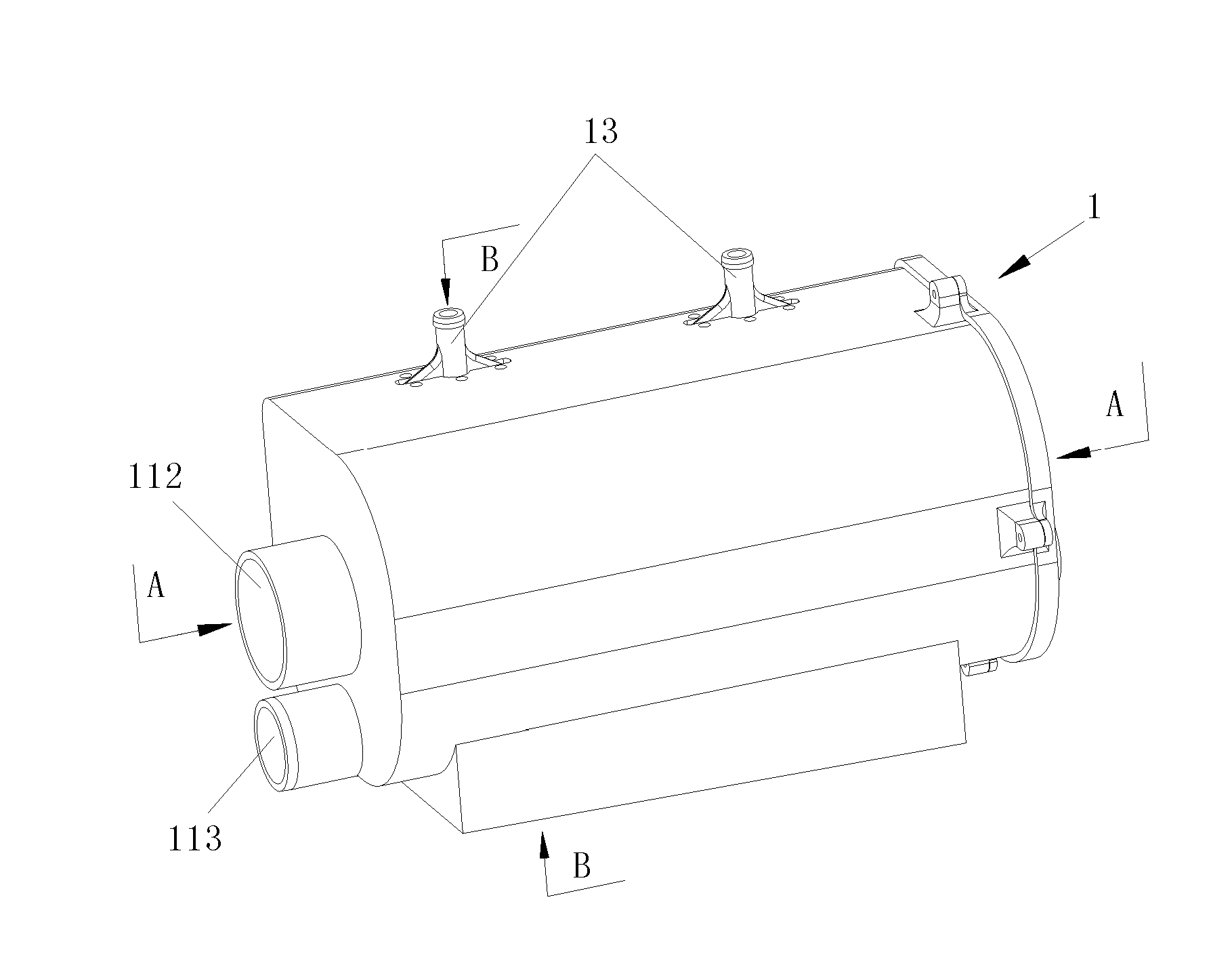

A filter apparatus (1) for recycling water of a washing machine having a self-cleaning function and the washing machine are disclosed. The apparatus includes a filter container (11) and a filter mechanism (12), the filter mechanism (12) is rotatably arranged inside the filter container (11), the filter apparatus further includes a self-cleaning mechanism utilizing the inlet water flow to drive the filter mechanism (12) to rotate and to spray and wash the filter mechanism (12). The washing machine includes an outer drum (2); the outer drum (2), a flocculation device (4), the filter apparatus (1) and the outer drum (2) are sequentially and circularly communicated with one another through a pipeline (3); the filter apparatus includes a filter container (11) and a filter mechanism (12) arranged inside the filter container (11), the filter container (11) is communicated with the flocculation container (41) and the outer drum (2).
First Claim
Other Claims data not available
