Foil deposition onto an additive manufactured substrate
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 26, 2020
Grant Date -
Jun 8, 2017
app pub date -
Dec 8, 2015
filing date -
Dec 8, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

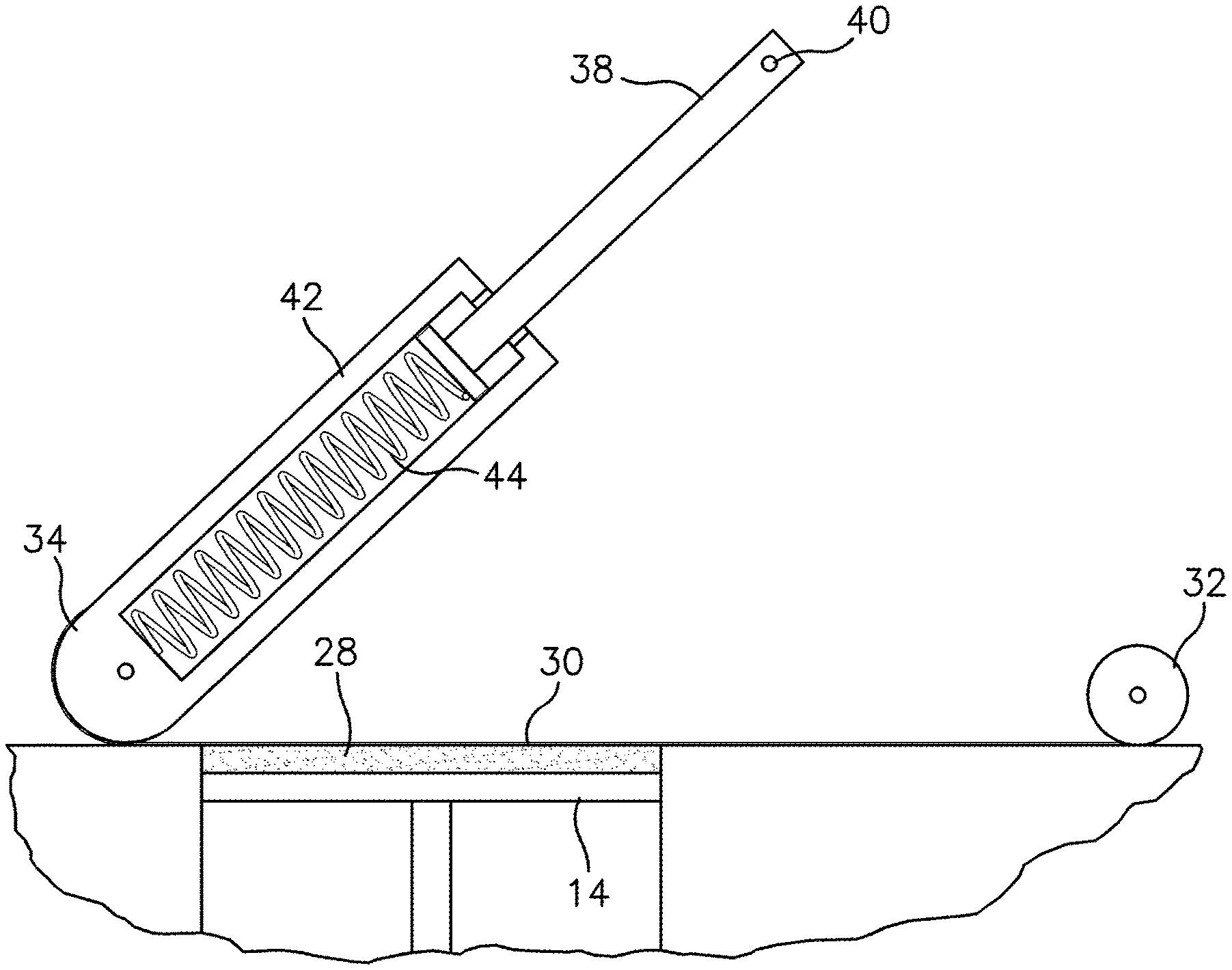

An additive manufacturing system and method for forming a part of dissimilar materials. The additive manufacturing system may include a build platform, a recoater for dispensing build powder onto the build platform, an energy source, a foil feed assembly, and a controller for controlling actuation of these components. The method of forming the part may include the steps of depositing a layer of build powder onto the build platform surface, melting selected portions of the layer of build powder, applying a sheet of foil over the layer of build powder, melting selected portions of the sheet of foil onto the layer of build powder, removing the sheet of foil from the layer of build powder, and then lowering the build platform surface to prepare for deposition of a next layer of the build powder. These steps are then repeated one or more times, thereby forming the part.
First Claim
Other Claims data not available
Family
- No Family data available.
International Classification(s)
- 2015 Application Filing Year
- B29C Class
- 5693 Applications Filed
- 4194 Patents Issued To-Date
- 73.67 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B29C Class
- 0 % this patent is cited more than
- 5 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Nov 26, 2027 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Nov 26, 2031 |
