DUAL LAYER FORCE SENSITIVE RESISTOR SENSOR
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Nov 30, 2016
filing date -
Nov 30, 2015
priority date (Note) -
Published
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

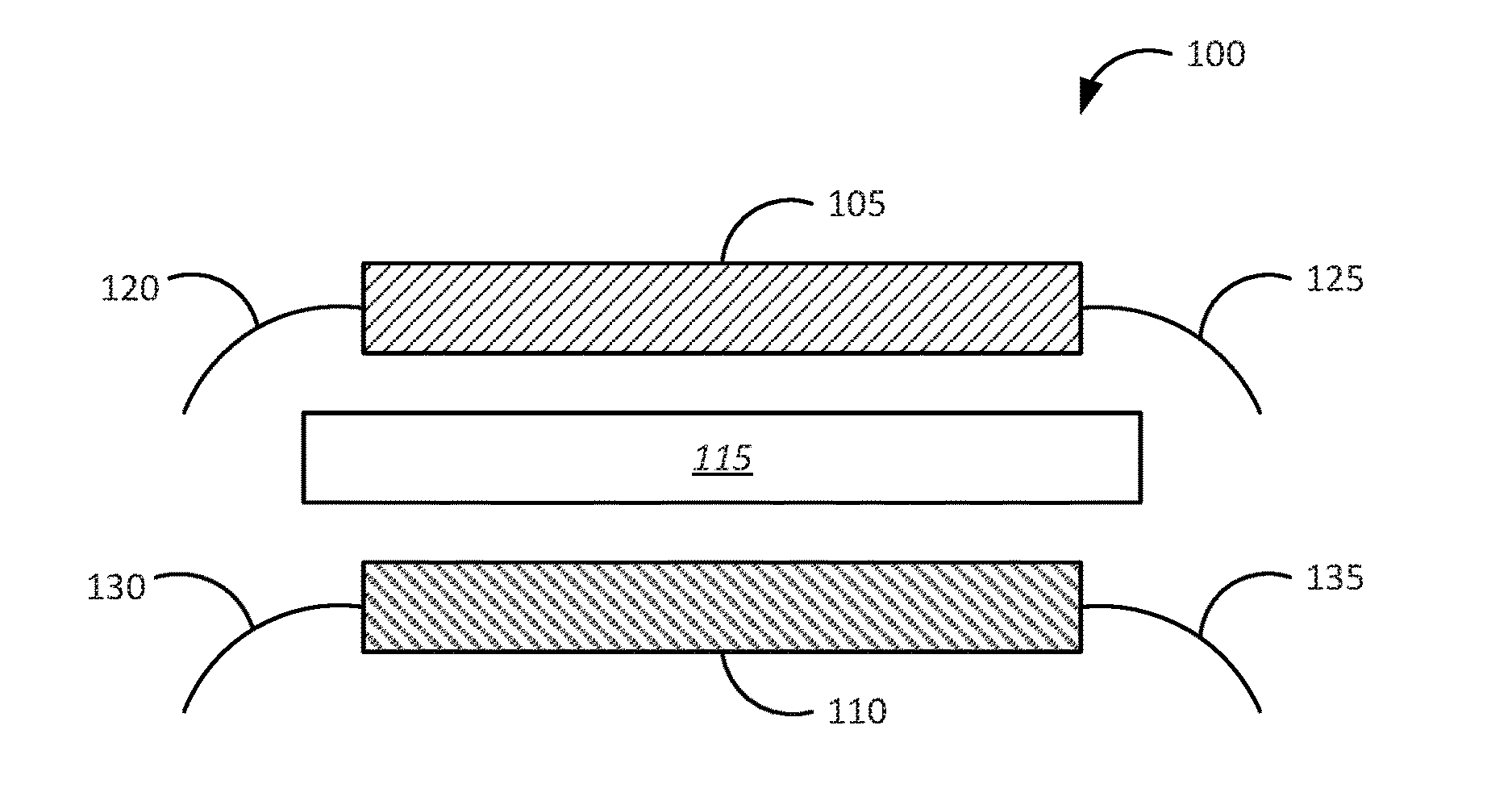

According to one embodiment, a multi-layer force sensor can comprise two or more Force Sensitive Resistors (FSRs), Force Sensitive Capacitors (FSCs), or other force sensitive devices. Each of these force sensitive devices can comprise a different layer of the multi-layer force sensor. Additionally, each of these different layers can be constructed of a different material providing different responses, i.e., different resistance, conductance, etc., over the same range of pressure or force. As a force is applied to the multi-layer sensor, this difference in response to the force between the layers can be used to determine a value for the force. The multi-layer force sensor can be implemented in a bridge circuit. The bridge circuit can be used to measure the differences in resistance, conductance, etc. between the different layers of the multi-layer sensor.
