IMAGE HEATING APPARATUS
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Jun 1, 2017
app pub date -
Nov 17, 2016
filing date -
Dec 1, 2015
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

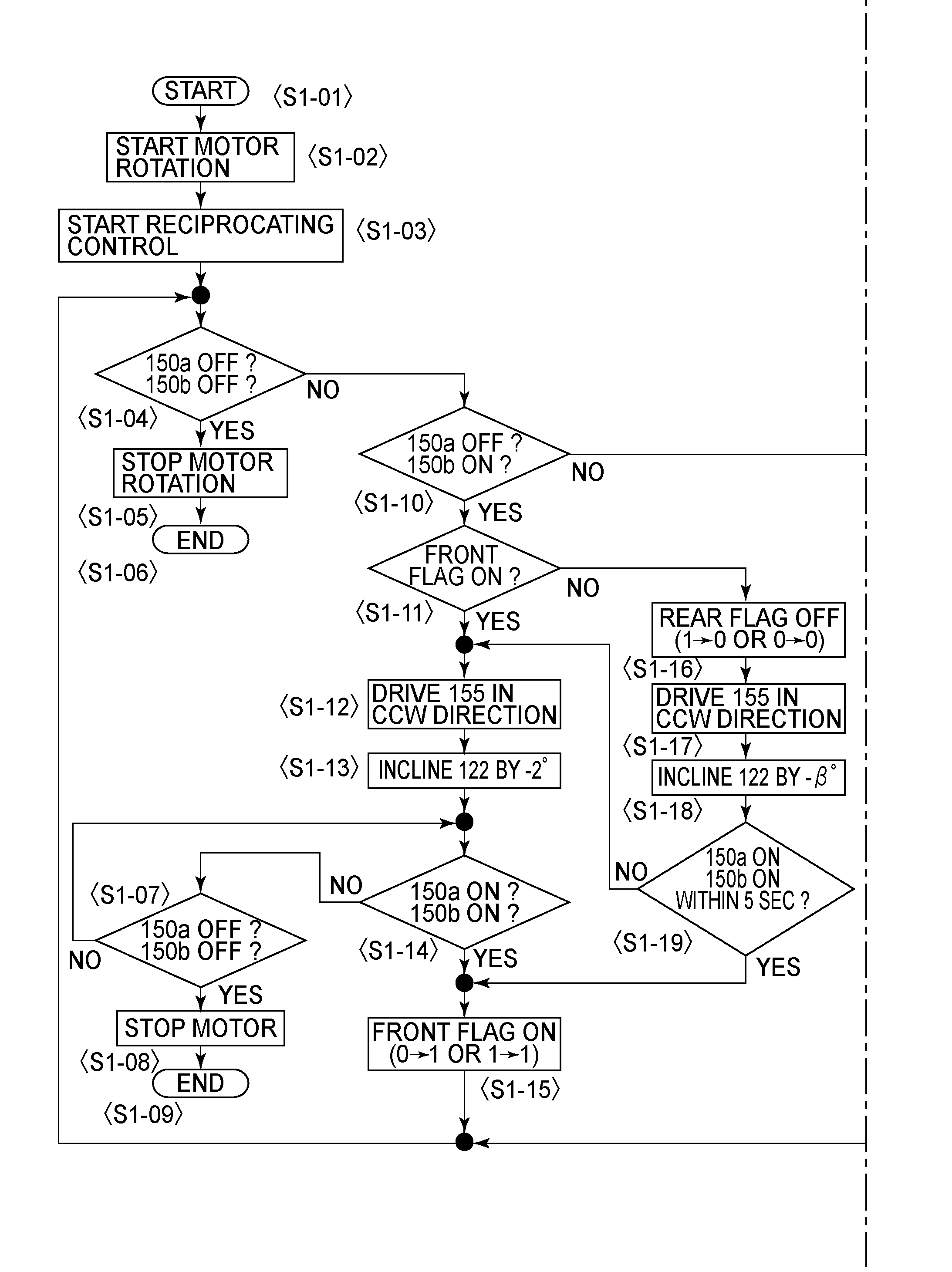

An image heating apparatus includes rotatable members; a roller; a detector; a displacing mechanism configured to displace one longitudinal end of the roller from a first position to a second position depending on an output of the detector so as to return the endless belt to the predetermined zone; and a timer configured to count a time in which the endless belt is out of the predetermined zone from displacement of the roller to the second position by the displacing mechanism. When the time counted by the timer is a predetermined time, the displacing mechanism displaces the one longitudinal end of the roller to a third position remoter from the first position than the second position so as to return the endless belt is returned to the predetermined zone.
First Claim
Other Claims data not available
