MECHANICAL SEAL
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
May 25, 2017
app pub date -
Jul 2, 2015
filing date -
Jul 11, 2014
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

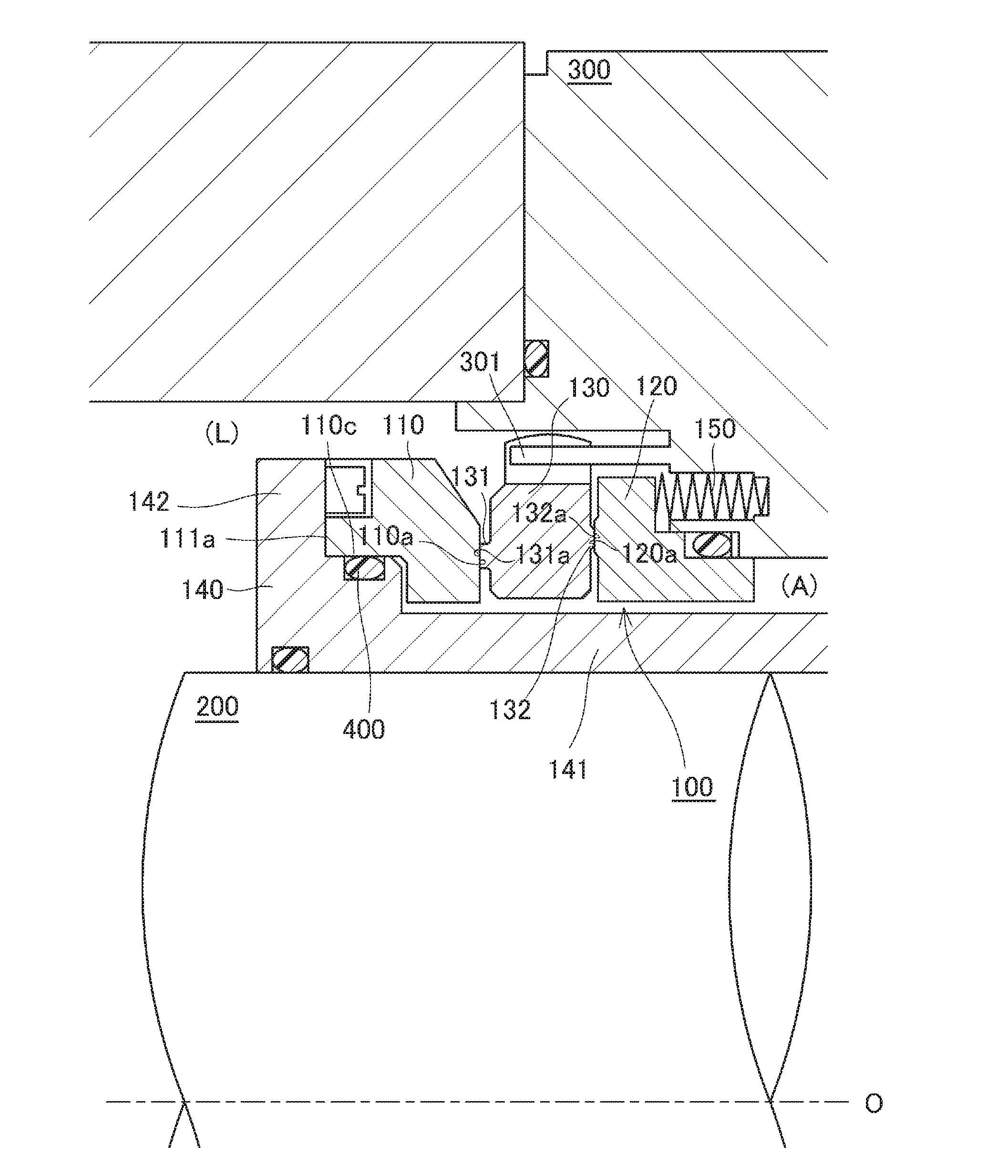

A mechanical seal (100) includes: a rotating ring (110); a stationary ring (120); a floating ring having an annular sliding portion (131) in which a sliding surface (131a) slides on the rotating ring (120), and a pressed portion (132) in which a pressed surface (132a) makes contact with the stationary ring (120), the floating ring sealing a sealed fluid via the sliding surface (131a) of the sliding portion (131) and the pressed surface (132a) of the pressed portion (132), wherein in the floating ring (130), a size of an area of an end surface in the axial direction on a fluid side L which is a surface that receives fluid pressure of the sealed fluid in a direction toward a side of the rotating ring (110), and a size of an area of an end surface in the axial direction on the fluid side L differ from each other.
First Claim
Other Claims data not available
