RING MAGNETIC ENCODER, MANUFACTURING DEVICE FOR RING MAGNETIC ENCODER, ROTARY SHAFT OFFSET DETECTING METHOD, AND HUMAN-MACHINE INTERFACE DEVICE THEREOF
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
May 18, 2017
app pub date -
Apr 19, 2016
filing date -
Nov 18, 2015
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

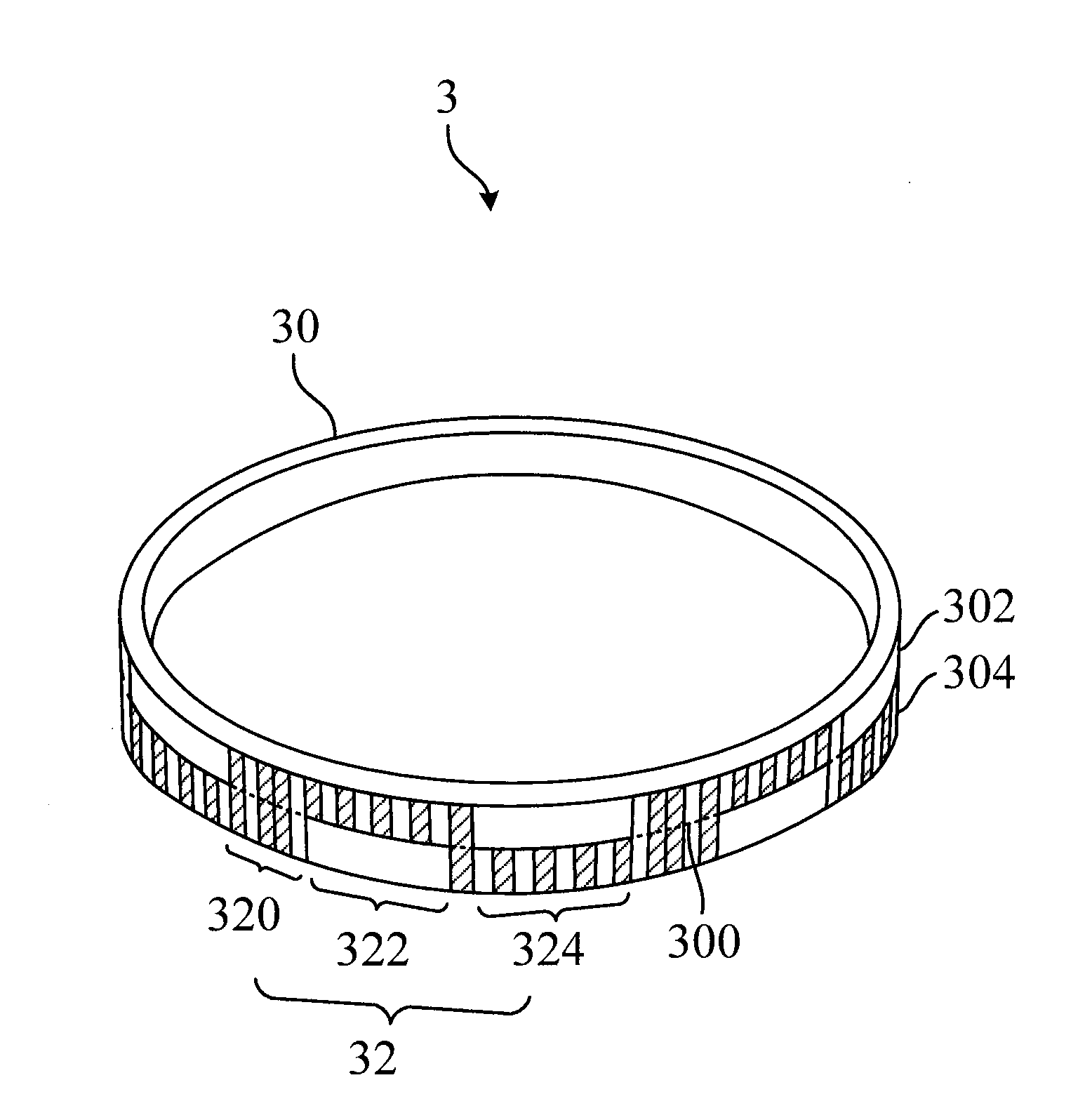

A ring magnetic encoder includes a ring magnetic object and a ring code configured on the outside of the ring magnetic object. The ring magnetic object is divided into a first ring part and a second ring part. The ring code further includes a plurality of sector IDs, upper offset codes and lower offset codes. The sector IDs are configured on the outside of the ring magnetic object in fixed intervals. The upper offset codes and the lower offset codes are configured in the intervals respectively. The upper offset codes are configured on the first ring part, and the lower offset codes are configured on the second ring part. According to the upper offset codes and the lower offset codes, the offset of the rotary shaft during rotating can be detected for precisely positioning.
