MACHINE TOOL SYSTEM AND METHOD FOR OPERATING A MACHINE TOOL SYSTEM
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Oct 24, 2016
filing date -
May 9, 2014
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

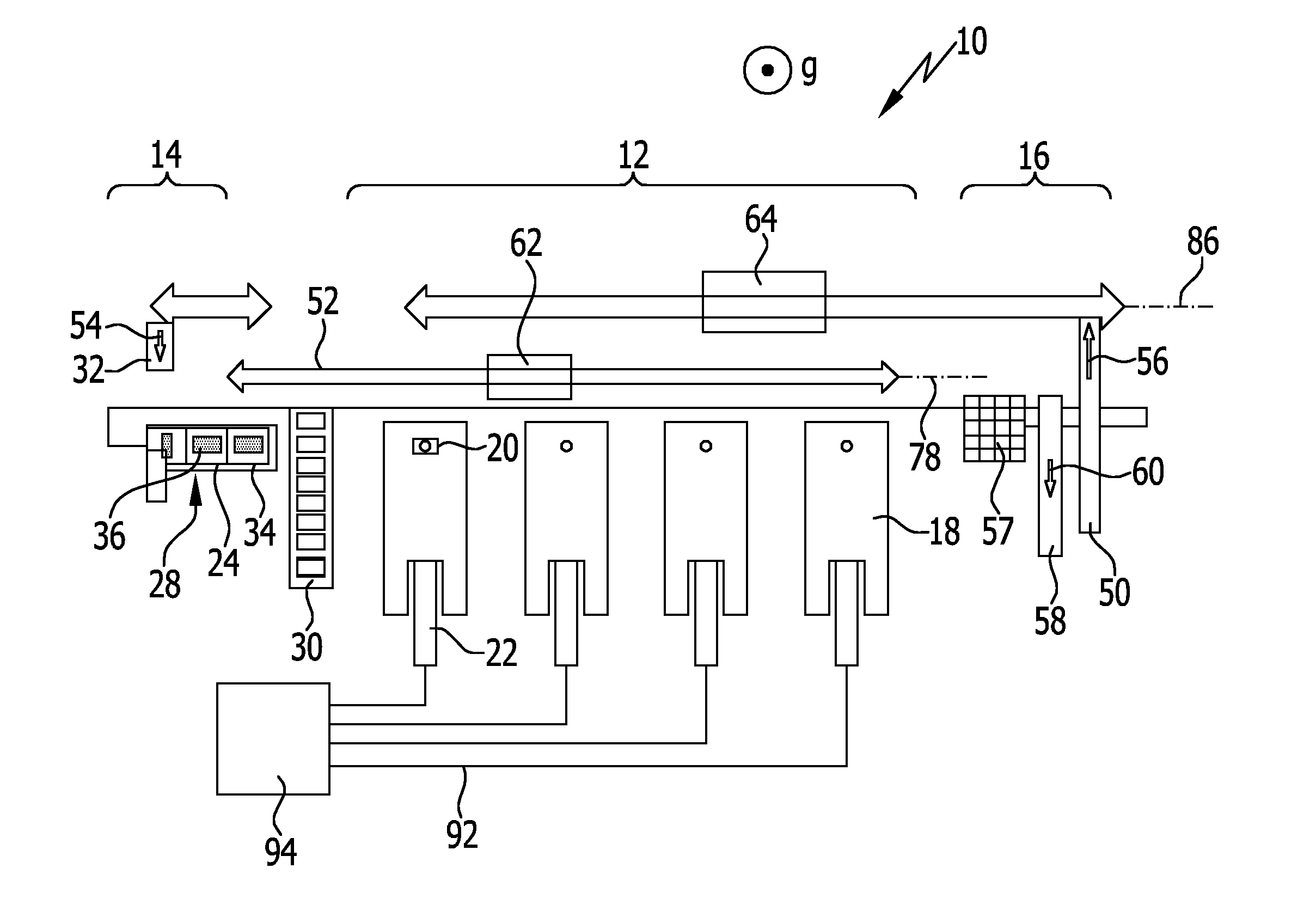

A machine tool system is provided that includes at least one machine tool for machining workpieces. A workpiece holding device is provided that holds one or more workpieces during machining using an adapter. A positioning device positions workpiece blanks on the adapters. An adapter loading and transporting device, which has an adapter gripping device that acts on the adapters and moves adapters that are provided with workpiece blanks from the positioning device to the at least one machine tool, loads the at least one machine tool and unloads adapters that are provided with machined workpieces from the at least one machine tool. A workpiece transporting device is provided which has a workpiece gripping device that acts on workpieces. After machined workpieces have been unloaded by the adapter loading and transporting device, the workpiece transporting device takes the workpieces up from the adapter loading and transporting device and removes them.
First Claim
Other Claims data not available
