APPARATUS FOR CONTROLLING A SEMICONDUCTOR SWITCH
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
May 4, 2017
app pub date -
Oct 28, 2015
filing date -
Oct 28, 2015
priority date (Note) -
Published
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

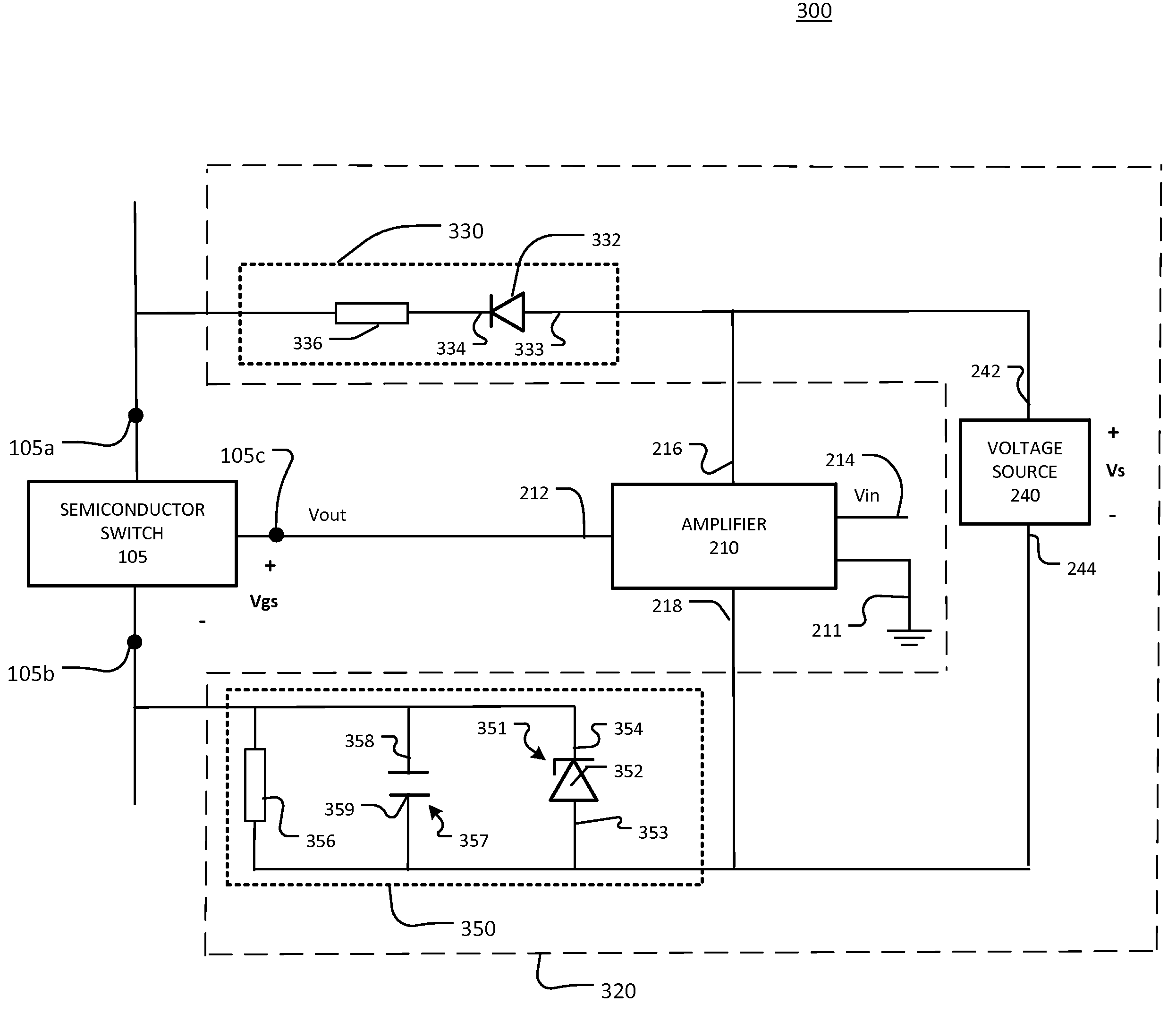

An apparatus includes an electrical network configured for connection to a first terminal of a semiconductor switch; a first voltage source connected to the electrical network; a second voltage source configured for connection to a second terminal of the semiconductor switch and to the first voltage source, the second voltage source includes a capacitive element configured to store electrical charge, the capacitive element receiving and storing electrical charge when the electrical network and the semiconductor switch conduct current, and the second voltage source providing a voltage based on the capacitive element, the voltage provided by the second voltage source bringing the second terminal of the semiconductor switch to a voltage that is greater than the lowest voltage that a third terminal of the semiconductor switch receives.
First Claim
Other Claims data not available
