Positive electrode materials having a superior hardness strength

Number of patents in Portfolio can not be more than 2000

United States of America Patent

PATENT NO 10833328
APP PUB NO 20170125808A1
SERIAL NO

15317161

Stats

ATTORNEY / AGENT: (SPONSORED)

Importance

Loading Importance Indicators... loading....

Abstract

See full text

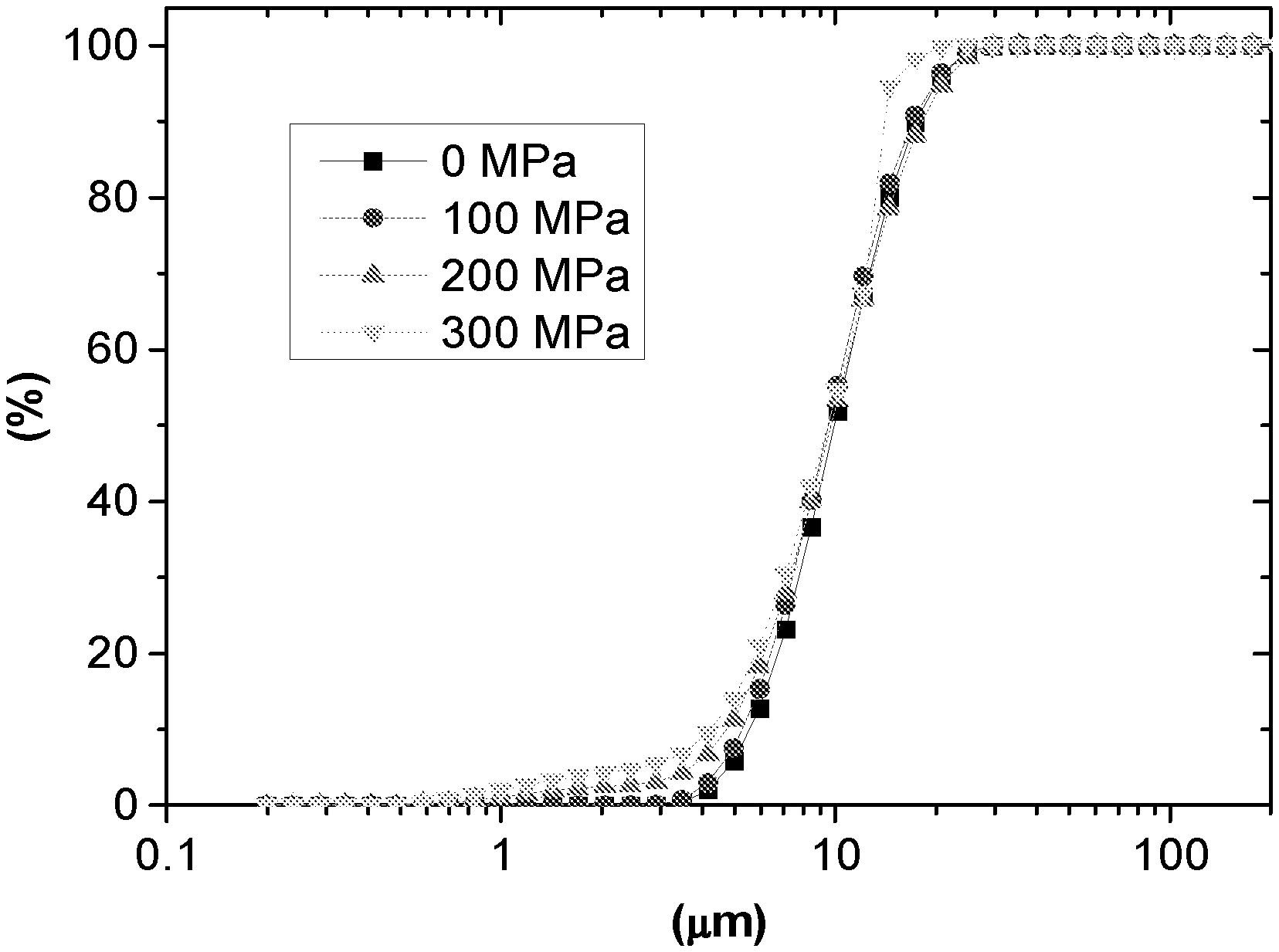

A powderous positive electrode material for a lithium secondary battery, the material having the general formula Li1+x[Ni1−a−b−cMaM′bM″c]1−xO2−z; M being either one or more elements of the group Mn, Zr and Ti, M′ being either one or more elements of the group Al, B and Co, M″ being a dopant different from M and M′, x, a, b and c being expressed in mol with −0.02≤x≤0.02, 0≤c≤0.05, 0.10≤(a+b)≤0.65 and 0≤z≤0.05; and wherein the powderous material is characterized by having a BET value ≤0.37 m2/g, a Dmax<50 μm, and a hardness strength index ΔΓ(P) of no more than 100%+(1−2a−b)×160% for P=200 MPa, wherein (Formula I) (I) with D 10p=0 being the D10 value of the unconstrained powder (P=0 M Pa), r°(D 10p=0) being the cumulative volume particle size distribution of the unconstrained powder at D 10p=0, and Γp(D 10p=0) being the cumulative volume particle size distribution at D10p=0 of the pressed samples with P being expressed in M Pa.

First Claim

See full text

Other Claims data not available

Family

Loading Family data... loading....

Patent Owner(s)

Patent OwnerAddress
UMICORE1000 BRUSSELS
UMICORE KOREA LTD71 3GONGDAN 2-RO SEOBUK-GU CHEONAN CHUNGCHEONGNAM-DO 331-200

International Classification(s)

loading....
  • 2015 Application Filing Year
  • H01M Class
  • 5536 Applications Filed
  • 4391 Patents Issued To-Date
  • 79.32 % Issued To-Date
Click to zoom InYear of Issuance% of Matters IssuedCumulative IssuancesYearly Issuances20152016201720182019202020212022202320240255075100

Inventor(s)

Inventor Name Address # of filed Patents Total Citations
Blangero, Maxime Cheonan, KR 35 168
Cho, WooRam Gyeonggi-do, KR 3 7
Choi, Da-In Cheonan, KR 7 60
Kim, JiHye Dujeong-dong, KR 213 792

Cited Art Landscape

Load Citation

Patent Citation Ranking

  • 0 Citation Count
  • H01M Class
  • 0 % this patent is cited more than
  • 5 Age
Citation count rangeNumber of patents cited in rangeNumber of patents cited in various citation count ranges19981435458101 - 1011 - 2021 - 3031 - 400100200300400500600700800900100011001200130014001500160017001800190020002100

Forward Cite Landscape

Load Citation

Maintenance Fees

Fee Large entity fee small entity fee micro entity fee due date
7.5 Year Payment $3600.00 $1800.00 $900.00 May 10, 2028
11.5 Year Payment $7400.00 $3700.00 $1850.00 May 10, 2032
