MAGNETIC MEMORY ELEMENT AND STORAGE DEVICE USING THE SAME
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Jan 10, 2017
filing date -
Sep 3, 2008
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

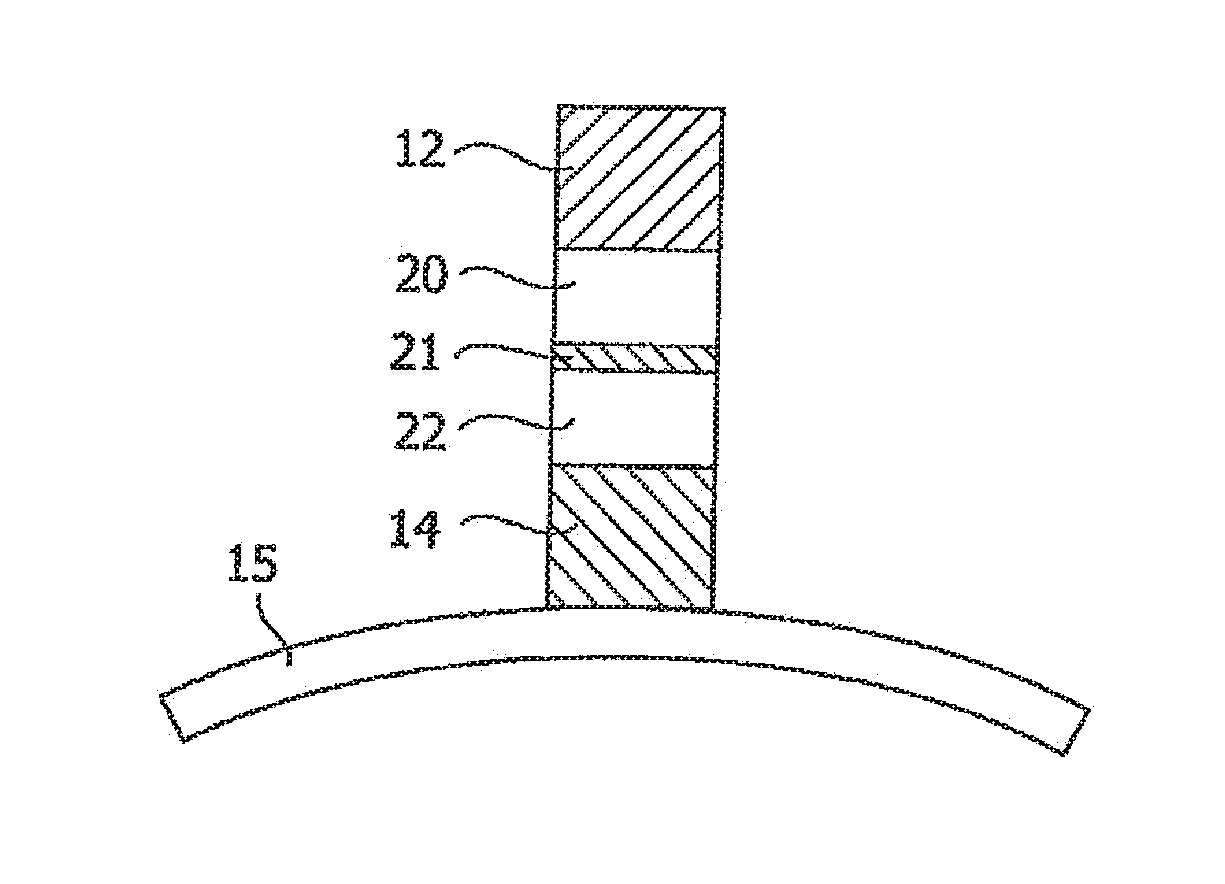

A magnetic miniaturized memory element with improved thermal stability of magnetization includes a first magnetic layer, an insulating layer that is formed on the first magnetic layer, a second magnetic layer that is formed on the insulating layer, and an expanded interlayer insulating film that comes into contact with side surfaces of the first and second magnetic layers, where at least one of the first magnetic layer and the second magnetic layer is strained and deformed so as to be elongated in an easy magnetization axis direction of the first magnetic layer or the second magnetic layer or compressive strain remains in any direction in the plane of at least one of the first magnetic layer and the second magnetic layer.
First Claim
Other Claims data not available
