Preparation device for preparing a sample of textile fibers, in particular cotton fibers, applicable to analysis and/or measuring apparatuses for analyzing and/or measuring characteristics of the textile fibers forming said sample
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 6, 2018
Issued Date -
N/A
app pub date -
Oct 26, 2016
filing date -
Oct 30, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

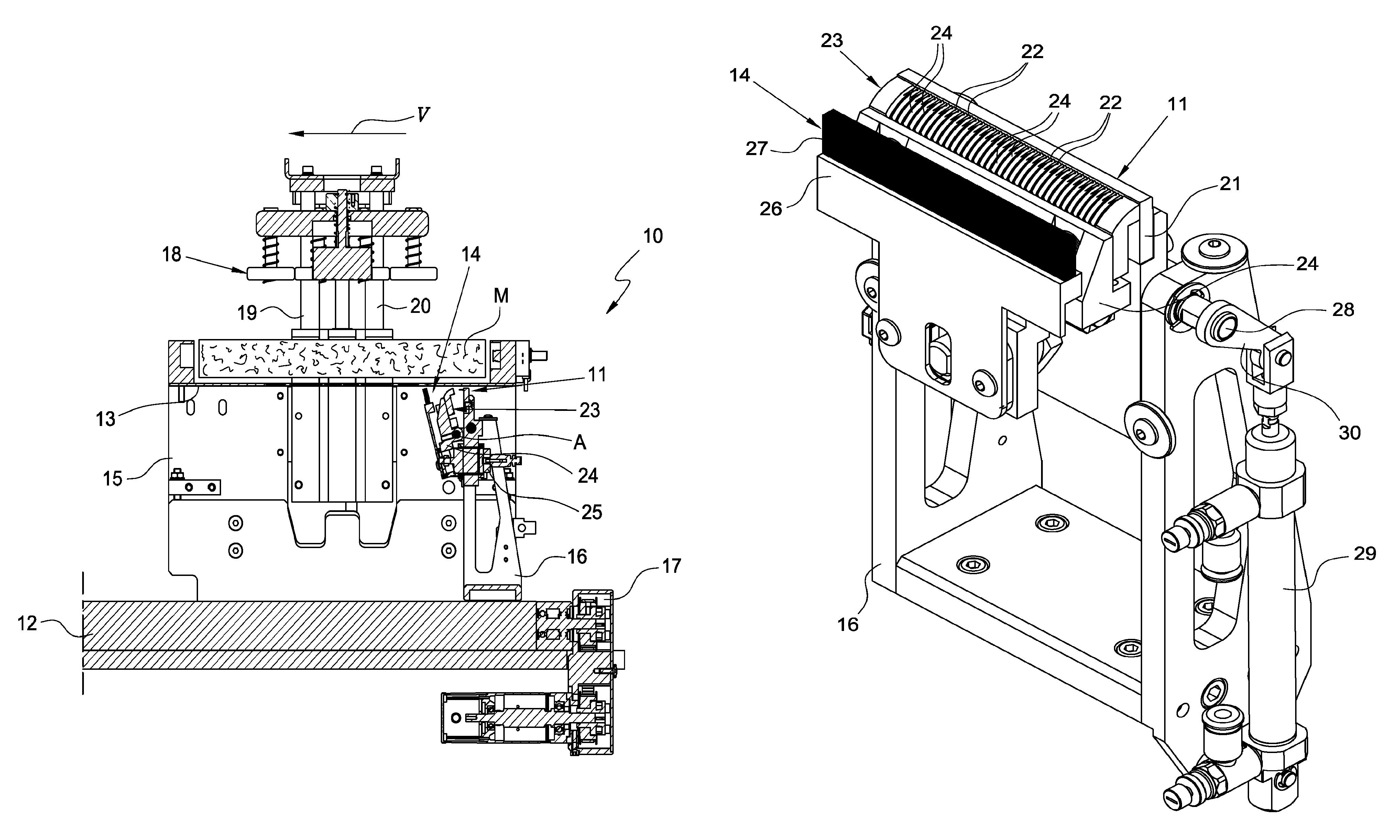

A preparation device prepares a sample of textile fibers, in particular cotton fibers, applicable to analysis and/or measuring apparatuses respectively for analyzing and/or measuring characteristics of the textile fibers forming the sample. The preparation device includes a comb body that can be coupled in a sliding manner along a rectilinear guide that faces a perforated plate against which to press a mass of textile fibers forming protuberances projecting from the holes of the perforated plate. The comb body is arranged to grip tufts of textile fibers from such protuberances. The preparation device also includes at least one brush that is mounted in a sliding manner along a rectilinear guide facing the perforated plate and that is arranged to brush the textile fibers forming the protuberances before the comb body grips the tufts.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2016 Application Filing Year
- G01N Class
- 12375 Applications Filed
- 8515 Patents Issued To-Date
- 68.81 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- G01N Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Sep 6, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Sep 6, 2029 |
