ENERGY STORAGE APPARATUS
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Oct 27, 2015
filing date -
Oct 27, 2015
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

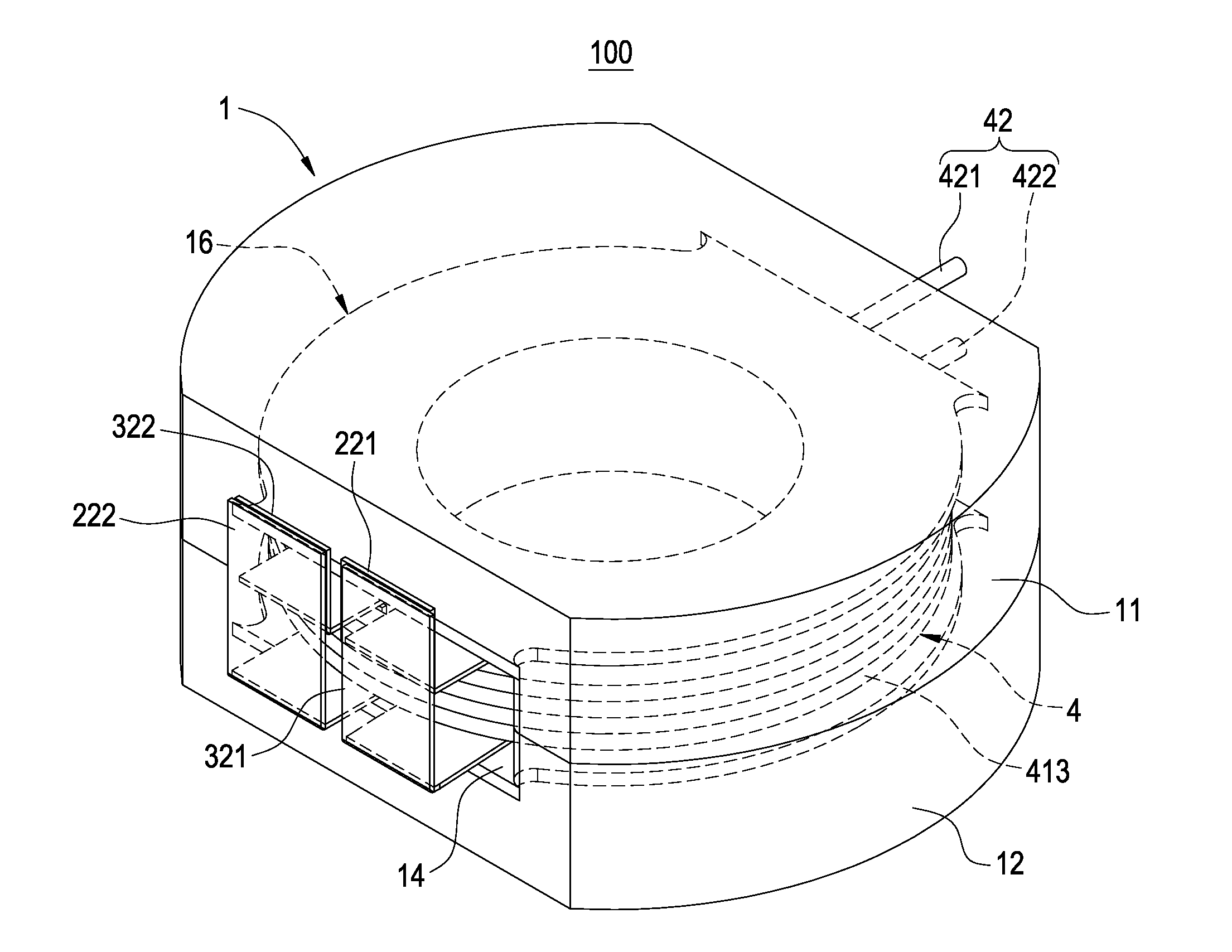

An energy storage apparatus includes a core and a first coil. The core has a winding portion, and the first coil includes a first coil body and a first pin portion. The first coil body is formed by winding a flat conductor around the winding portion perpendicularly and has a first inner end and a first outer end, and an edge of the first coil body has a notch to form a first wire crossing slot. The first pin portion includes a first inner end pin and a first outer end pin coupled to the first inner end and the first outer end respectively. The first inner end pin passes through a first wire crossing slot and crosses the first coil body to achieve the effects of reducing the overall volume and inserting components easily and quickly.
