Magnetic flowmeter with automatic in-situ self-cleaning
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 18, 2020
Grant Date -
Apr 27, 2017
app pub date -
Jan 4, 2017
filing date -
Jun 30, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

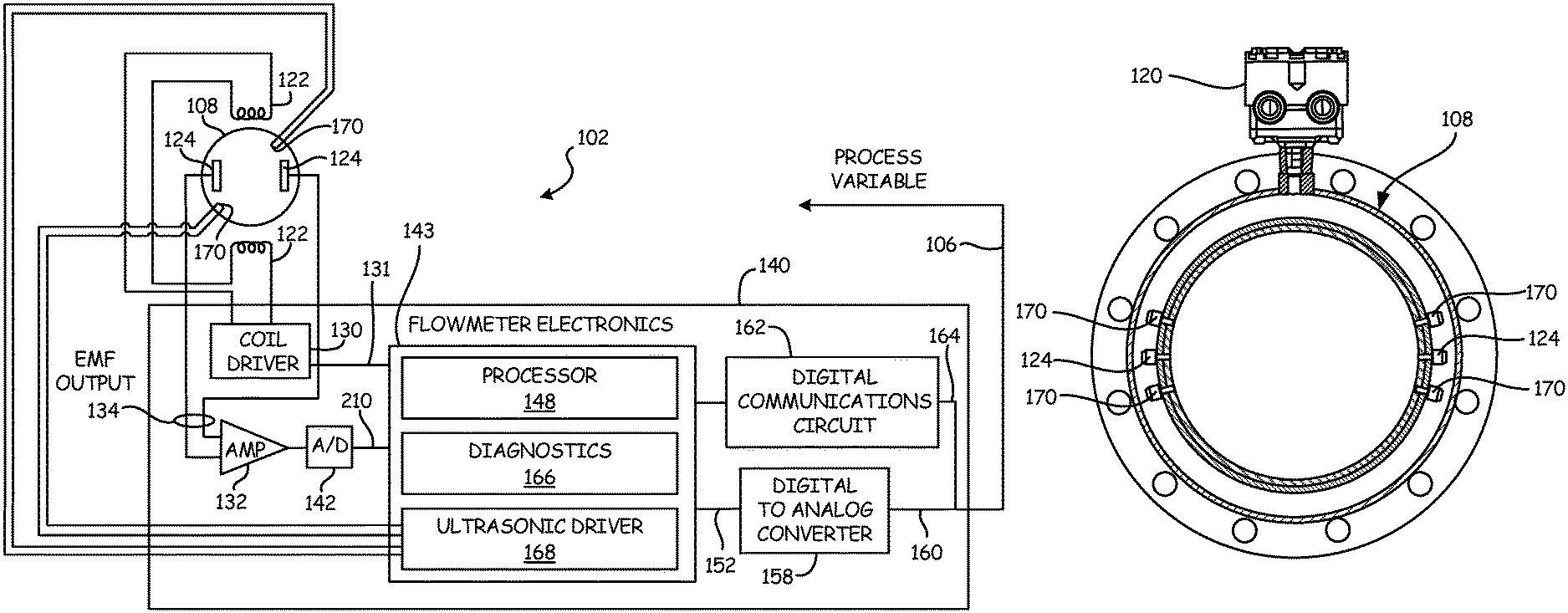

A magnetic flowmeter includes flowmeter electronics and a flowtube configured to receive process fluid flow. The flowtube has a plurality of electrodes disposed proximate an inner diameter to contact process fluid. At least one ultrasonic transducer is disposed within the flowtube and is configured to couple ultrasonic energy to the process fluid proximate at least one electrode. Flowmeter electronics are coupled to the plurality of electrodes and the at least one ultrasonic transducer and are configured to detect at least partial electrode coating or buildup and responsively generate a cleaning cycle within the flowtube using the at least one ultrasonic transducer.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2017 Application Filing Year
- B08B Class
- 1362 Applications Filed
- 875 Patents Issued To-Date
- 64.25 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- B08B Class
- 62.91 % this patent is cited more than
- 5 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Feb 18, 2028 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Feb 18, 2032 |
