Shoulder joint structure of doll body
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 26, 2017
Issued Date -
N/A
app pub date -
Sep 23, 2016
filing date -
Oct 26, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

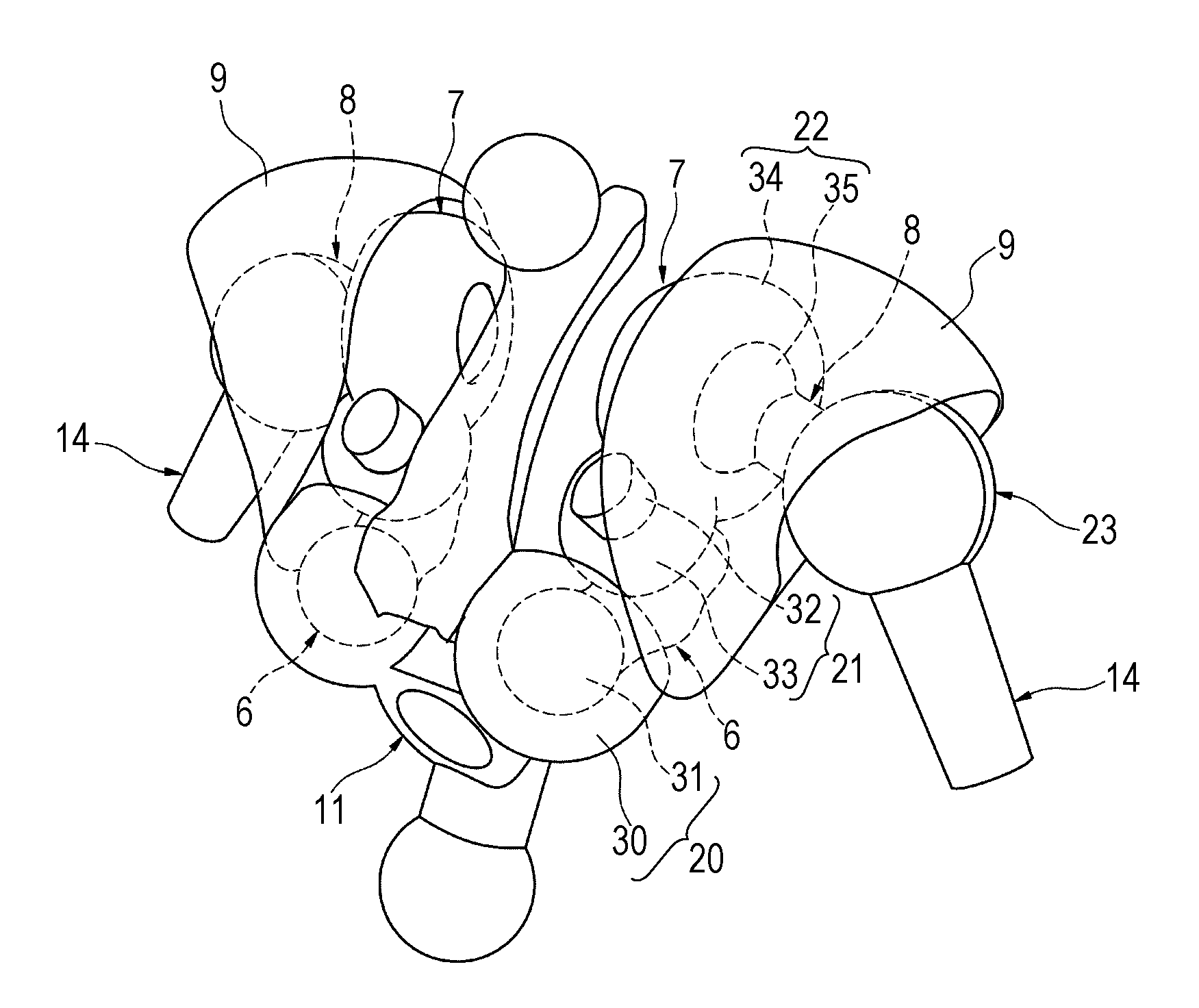

A shoulder joint structure of a doll body includes a first joint member housed inside a trunk of the doll body and connected to the trunk, a second joint member housed inside the trunk and connected to the first joint member, and a third joint member connected to the second joint member and an arm of the doll body through an opening formed in a shoulder of the trunk. The first joint member is rotatable about a first connecting portion between the trunk and the first joint member, so as to move the third joint member away from a trunk axis of the trunk in a shoulder width direction. The second joint member is rotatable about a second connecting portion between the first joint member and the second joint member, so as to move the third joint member away from the trunk axis in the shoulder width direction.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2016 Application Filing Year
- A63H Class
- 511 Applications Filed
- 357 Patents Issued To-Date
- 69.87 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- A63H Class
- 22.39 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jun 26, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jun 26, 2029 |
